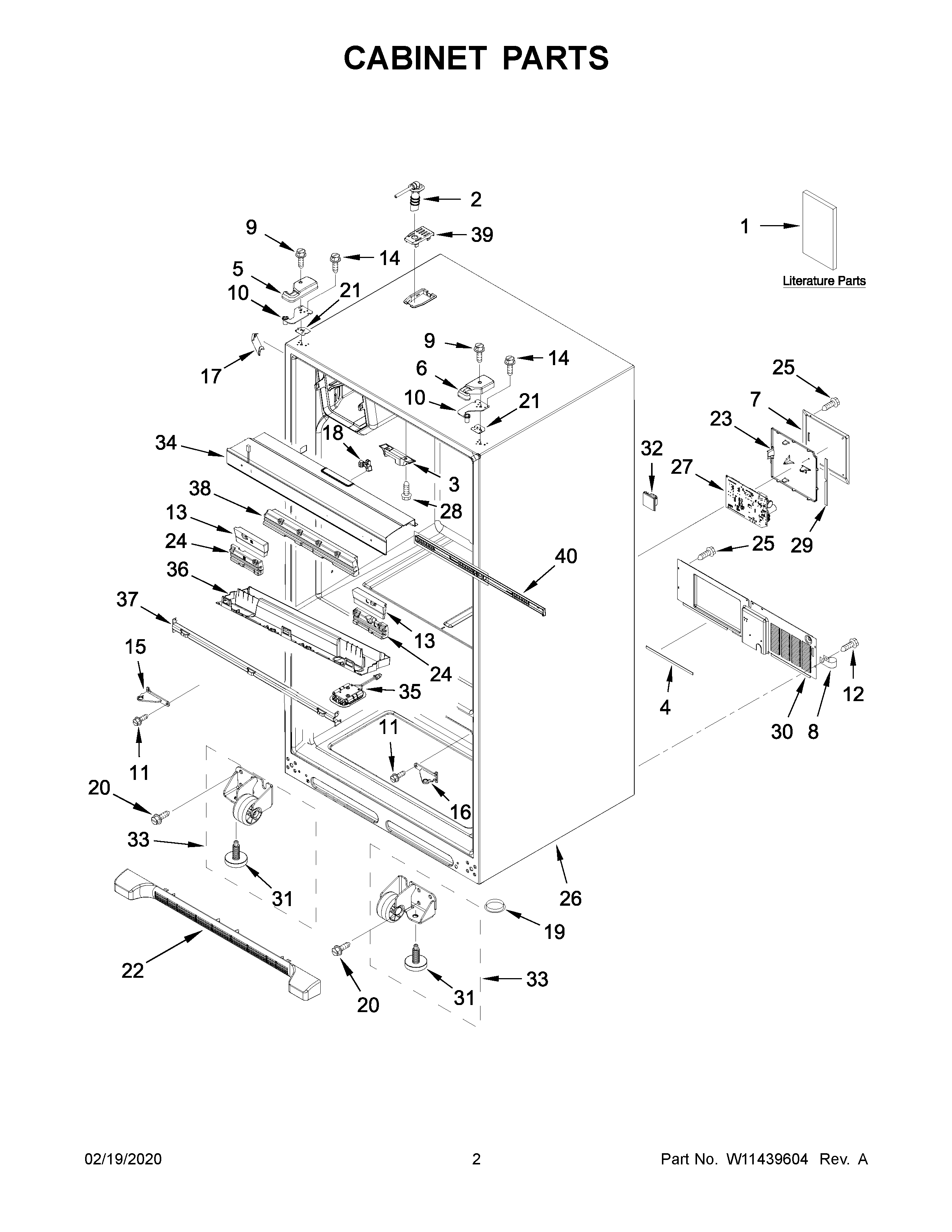

WRX735SDHV02 02 – CABINET PARTS

Products

Position	Product
1A	USE & CARE GUIDE
1B	ENERGY GUIDE
1	TECH SHEET
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	W10337647 Whirlpool Refrigerator Cover
6	WP67005956 Whirlpool Refrigerator Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	67006425 Whirlpool Refrigerator Screw
13	WEDGE, SPACER (LEFT HAND & RIGHT HAND)
14	WP489349 Whirlpool Refrigerator Screw
15	W10918166 Whirlpool Refrigerator Door Hinge
16	W10918168 Whirlpool Refrigerator Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10827867 Whirlpool Refrigerator Knob
19	A3076901 Whirlpool Refrigerator Plug
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W10296541 Whirlpool Refrigerator Wire Cover
24	W10316401 Whirlpool Refrigerator Insulation
25	W11686675 Whirlpool Screw
27	W11043763 Whirlpool Refrigerator Electronic Control Board
28	W11693756 Whirlpool Screw Assembly
29	W10914798 Whirlpool Gasket
30	WPW10270394 Whirlpool Refrigerator Back Cover
31	WPW10141622 Whirlpool Leveler
32	WPM0104106 Whirlpool Refrigerator Clip
33A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
33	WPW10515763 Whirlpool Refrigerator Cabinet Roller
34	CABINET (NOT A SERVICEABLE PART)
35	MODULE
36	W10877249 Whirlpool Refrigerator Housing
37	W10492234 Whirlpool Refrigerator Brace
38	W10311721 Whirlpool Refrigerator Insulation
39	12981401B Whirlpool Refrigerator Filtration Cover
40	W10367522 Whirlpool Refrigerator Slide
