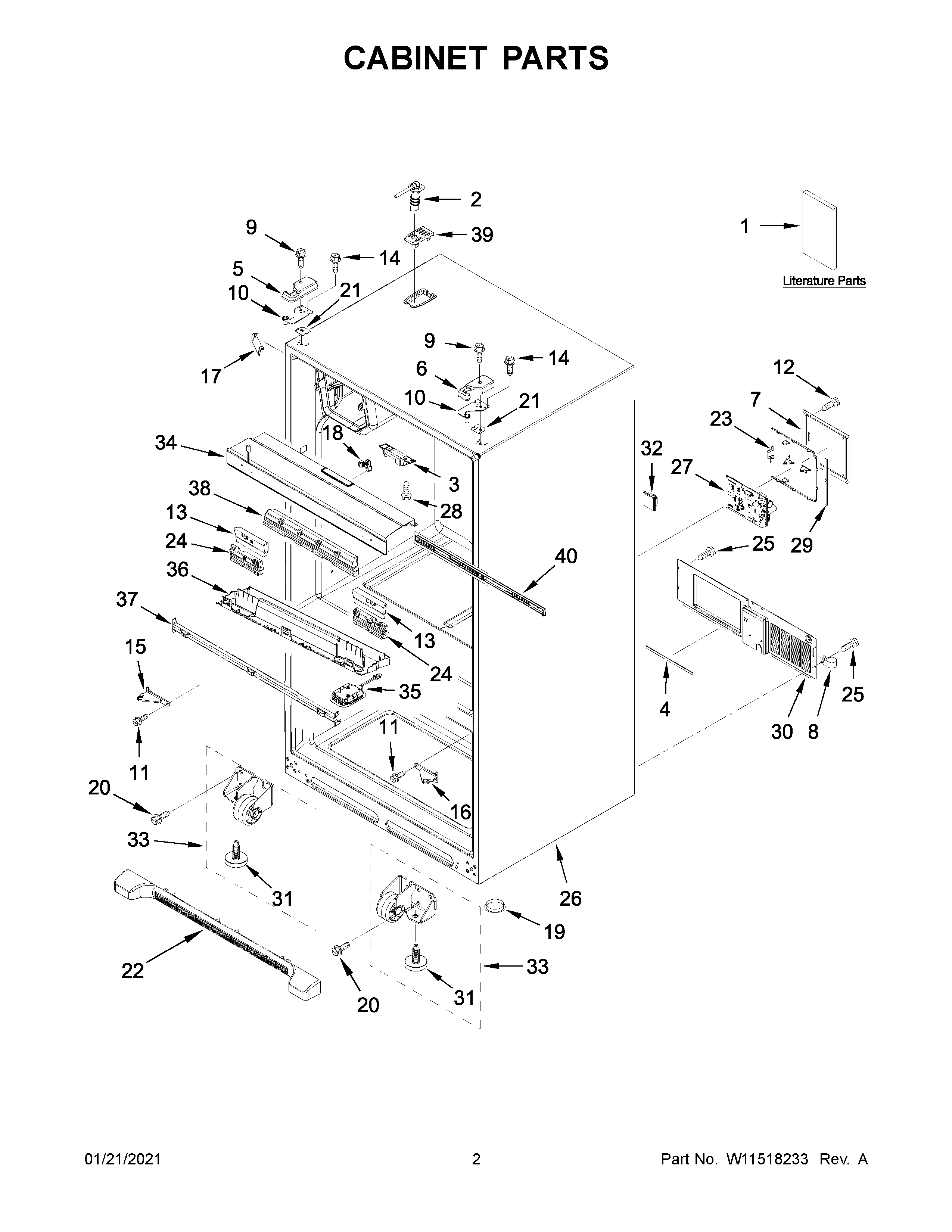

WRX735SDHV03 02 – CABINET PARTS

WRX735SDHV03 02 – CABINET PARTS

Written by

in

WRX735SDHV03 02 – CABINET PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1TECH SHEET
1BENERGY GUIDE
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4GASKET
5W10337647 Whirlpool Refrigerator Cover
6WP67005956 Whirlpool Refrigerator Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11686675 Whirlpool Screw
13WEDGE, SPACER (LEFT HAND & RIGHT HAND)
14WP489349 Whirlpool Refrigerator Screw
15W10918166 Whirlpool Refrigerator Door Hinge
16W10918168 Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10827867 Whirlpool Refrigerator Knob
19A3076901 Whirlpool Refrigerator Plug
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23W10296541 Whirlpool Refrigerator Wire Cover
24W10316401 Whirlpool Refrigerator Insulation
25SCREW
26CABINET (NOT A SERVICEABLE PART)
27W11043763 Whirlpool Refrigerator Electronic Control Board
28W11693756 Whirlpool Screw Assembly
29W10914798 Whirlpool Gasket
30WPW10270394 Whirlpool Refrigerator Back Cover
31WPW10141622 Whirlpool Leveler
32WPM0104106 Whirlpool Refrigerator Clip
33WPW10515763 Whirlpool Refrigerator Cabinet Roller
33AWPW10515762 Whirlpool Refrigerator Cabinet Roller
34WPL W10902087
35MODULE
36W10877249 Whirlpool Refrigerator Housing
37W10492234 Whirlpool Refrigerator Brace
38W10311721 Whirlpool Refrigerator Insulation
3912981401B Whirlpool Refrigerator Filtration Cover
40W10367522 Whirlpool Refrigerator Slide
