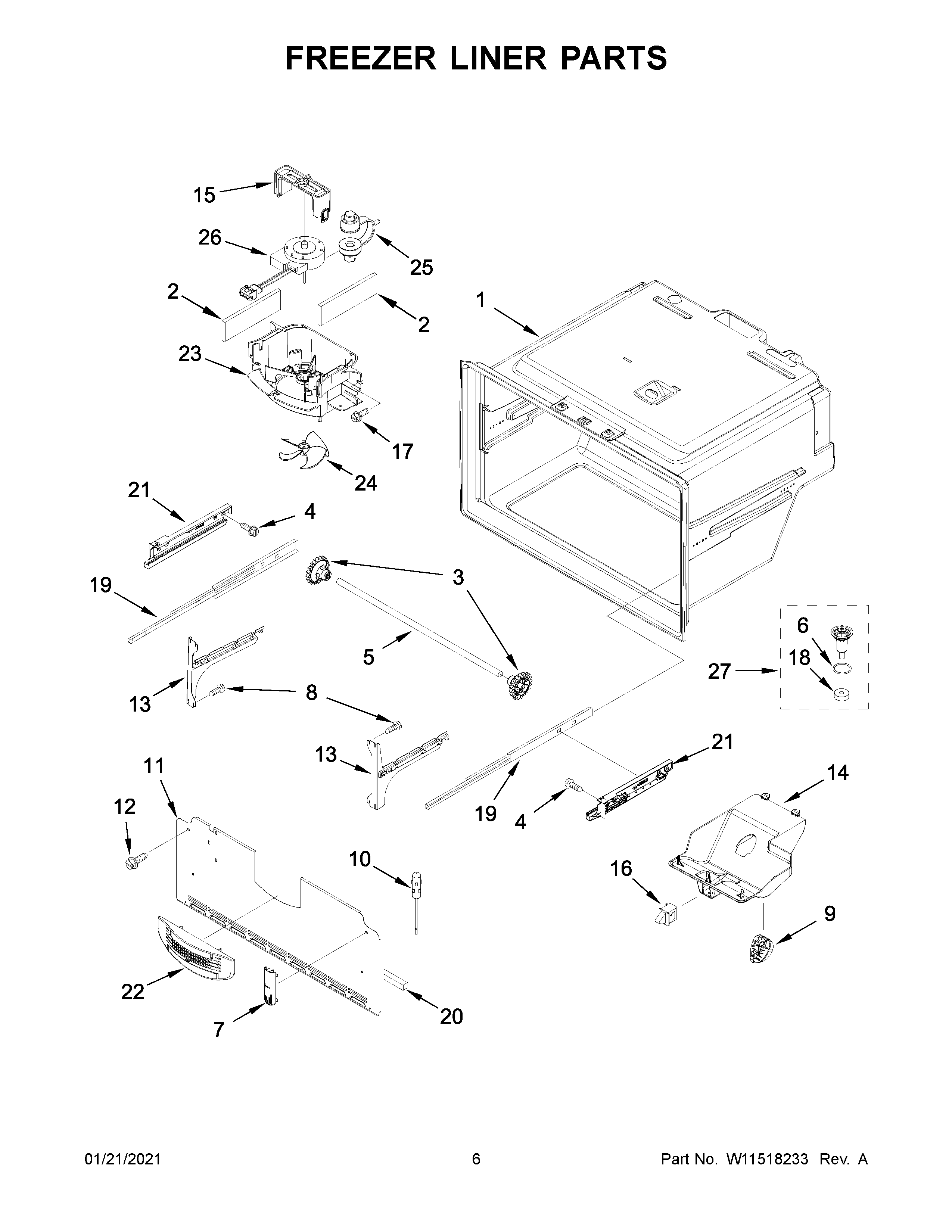

WRX735SDHV03 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	WP489474 Whirlpool Refrigerator Screw
5	W11028221 Whirlpool Refrigerator Shaft
6	WPM0500703 Whirlpool Refrigerator O-Ring Seal
7	WP67003924 Whirlpool Refrigerator Cover
9	MODULE
10	W10316760 Whirlpool Thermistor Kit
11	W10308421 Whirlpool Refrigerator Evaporator Cover
12	WP489349 Whirlpool Refrigerator Screw
13	WPW10330991 Whirlpool Refrigerator Bracket
13A	WPW10330993 Whirlpool Refrigerator Bracket
14	W11434460 Whirlpool Refrigerator Housing
15	W11712696 Whirlpool Clip
16	W11445850 Whirlpool Door Switch
17	WP98165 Whirlpool Screw
18	WPB8381501 Whirlpool Refrigerator Door Gasket
19	W11658402 Whirlpool Drawer Slide Rail
20	W11159728 Whirlpool Refrigerator Gasket
21A	WPW10284683 Whirlpool Refrigerator Bracket
21	WPW10284682 Whirlpool Refrigerator Bracket
22	W11176847 Whirlpool Refrigerator Grille
23	W11700329 Whirlpool Evaporator Shroud
24	WP67006337 Whirlpool Refrigerator Fan Blade
25	W11249950 Whirlpool Refrigerator Grommet
26	W11334745 Whirlpool Refrigerator Evaporator Fan Motor
27	W10815413 Whirlpool Refrigerator Funnel
