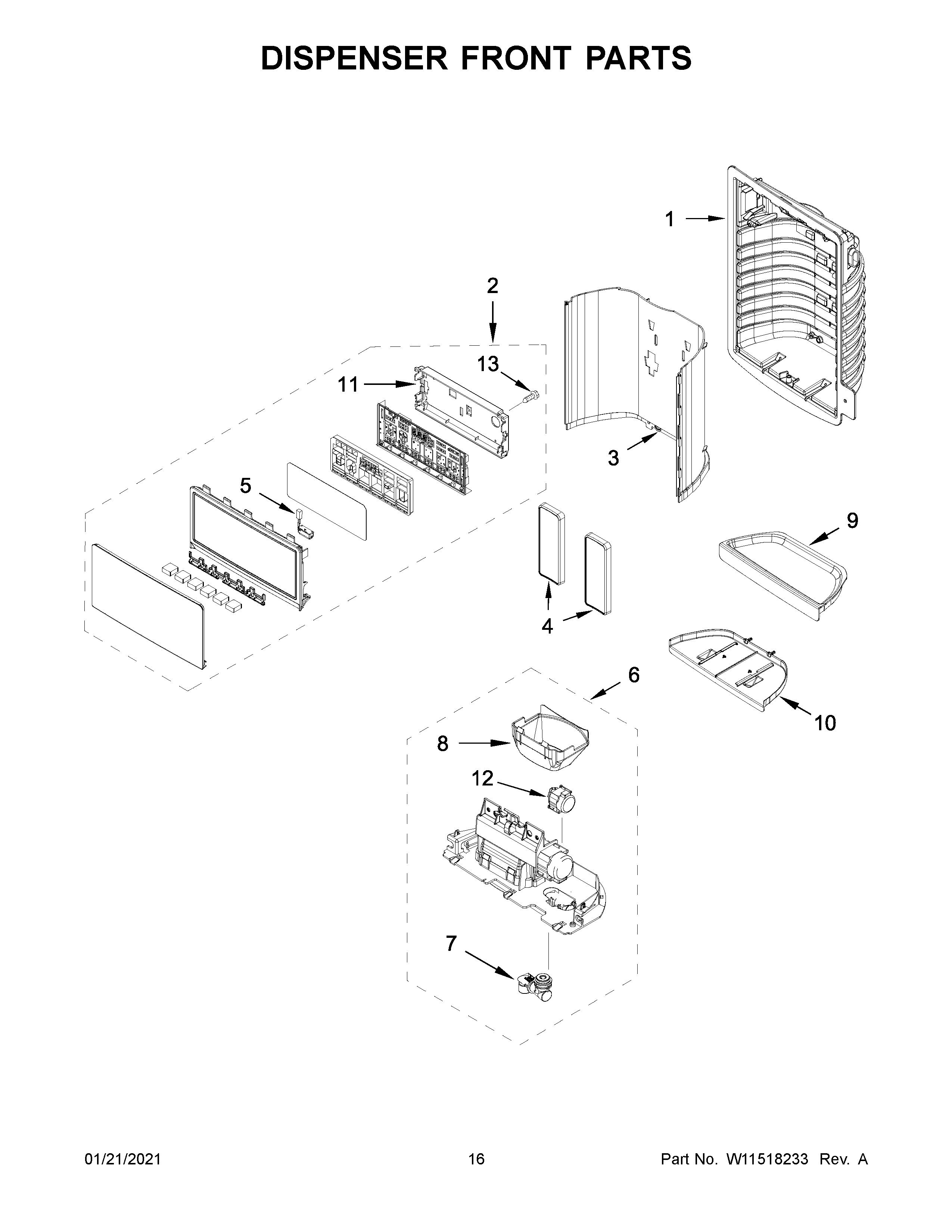

WRX735SDHV03 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11542754-includeCORE Whirlpool W11542754 Refrigerator UI Panel with Core
3	W11045979 Whirlpool Shield Assembly
4	W11661207 Whirlpool Pad Assembly
5	W11290115 Whirlpool Refrigerator Light
6	WPW10353552 Whirlpool Refrigerator Separator
7	W11227371 Whirlpool Refrigerator Spigot
8	WPW10435760 Whirlpool Refrigerator Ice Guide
9	W11045974 Whirlpool Refrigerator Drip Tray
10	W11045966 Whirlpool Tray
11	W10254277 Whirlpool Cover Assembly
12	WPW10205979 Whirlpool Refrigerator Ice Door Motor
13	2006254 Whirlpool Refrigerator Screw
