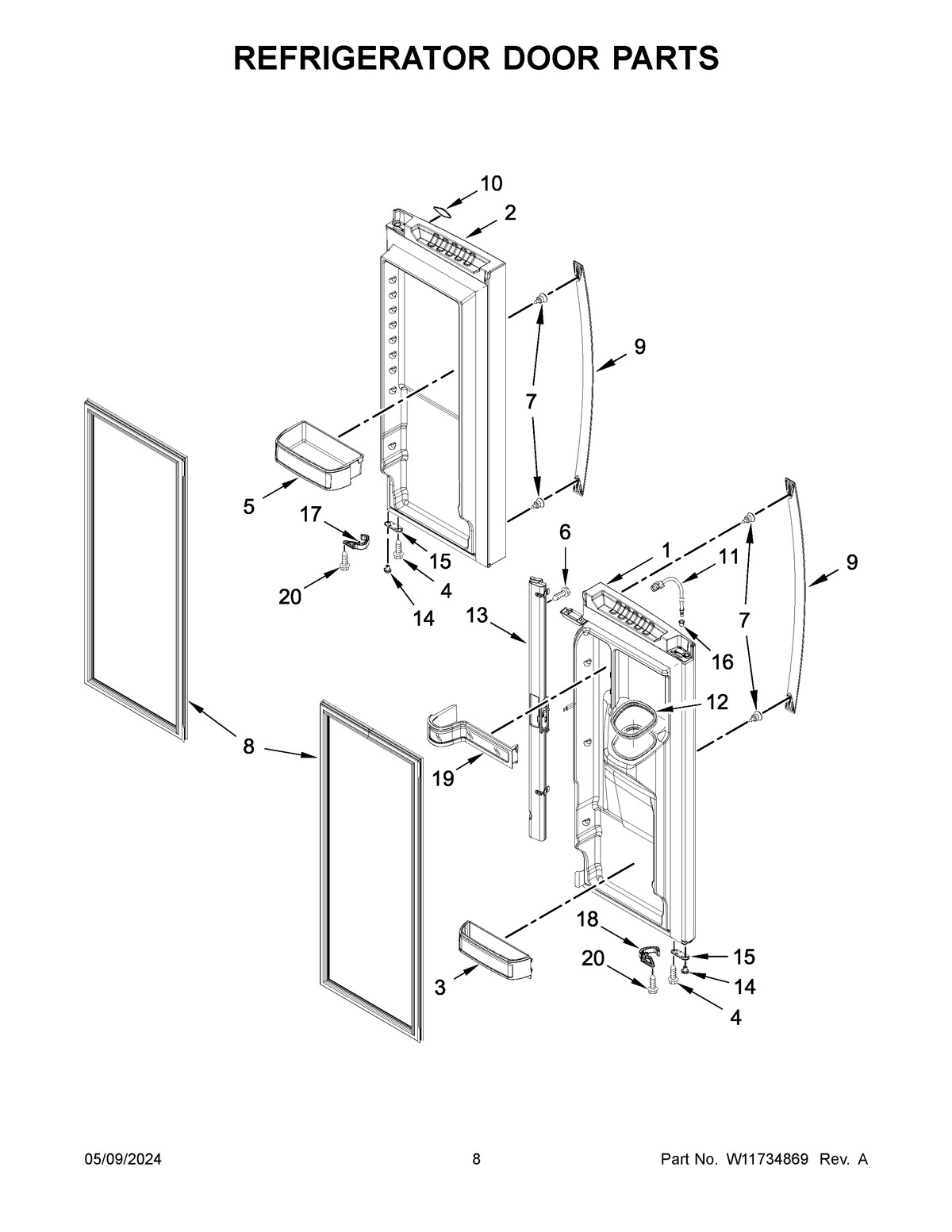

WRX735SDHV10 05 – REFRIGERATOR DOOR PARTS

WRX735SDHV10 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX735SDHV10 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11104476 Whirlpool Refrigerator Door Assembly
2W11104465 Whirlpool Refrigerator Door Assembly
3W11379148 Whirlpool Refrigerator Cantilever Bin
4WP98165 Whirlpool Screw
5W11706640 Whirlpool Bin Containment Lever
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8W10830274 Whirlpool Door Gasket
9W11045128 Whirlpool Refrigerator Handle
10W11223753 Whirlpool Refrigerator Nameplate
11W11677733 Whirlpool Water Tube
12WPW10287601 Whirlpool Seal
13W10311758 Whirlpool Refrigerator Mullion Rail
14WP67003639 Whirlpool Refrigerator Closer
15W11708403 Whirlpool Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
17W10918171 Whirlpool Refrigerator Closer
18W10918170 Whirlpool Refrigerator Closer
19W10355269 Whirlpool Cantilever Bin
20WP67006908 Whirlpool Refrigerator Screw
