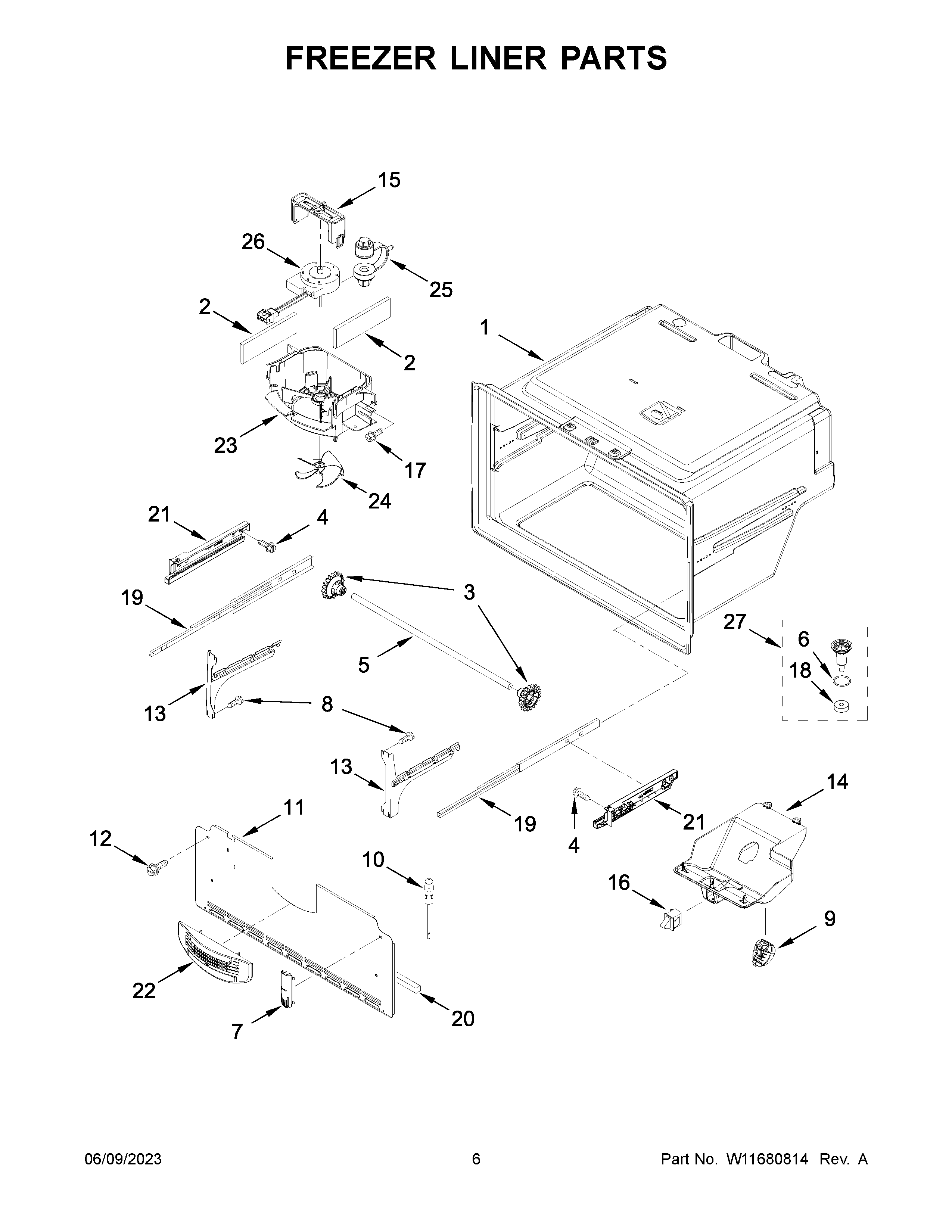

WRX735SDHW07 04 – FREEZER LINER PARTS

WRX735SDHW07 04 – FREEZER LINER PARTS

Written by

in

WRX735SDHW07 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4WP489474 Whirlpool Refrigerator Screw
5W11028221 Whirlpool Refrigerator Shaft
6WPM0500703 Whirlpool Refrigerator O-Ring Seal
7WP67003924 Whirlpool Refrigerator Cover
9MODULE
10W10316760 Whirlpool Thermistor Kit
11W10308421 Whirlpool Refrigerator Evaporator Cover
12WP489349 Whirlpool Refrigerator Screw
13WPW10330991 Whirlpool Refrigerator Bracket
13AWPW10330993 Whirlpool Refrigerator Bracket
14W11434460 Whirlpool Refrigerator Housing
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
18WPB8381501 Whirlpool Refrigerator Door Gasket
19W11658402 Whirlpool Drawer Slide Rail
20W11159728 Whirlpool Refrigerator Gasket
21AWPW10284683 Whirlpool Refrigerator Bracket
21WPW10284682 Whirlpool Refrigerator Bracket
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11249950 Whirlpool Refrigerator Grommet
26W11661931 Whirlpool Evaporator Motor
27W10815413 Whirlpool Refrigerator Funnel
