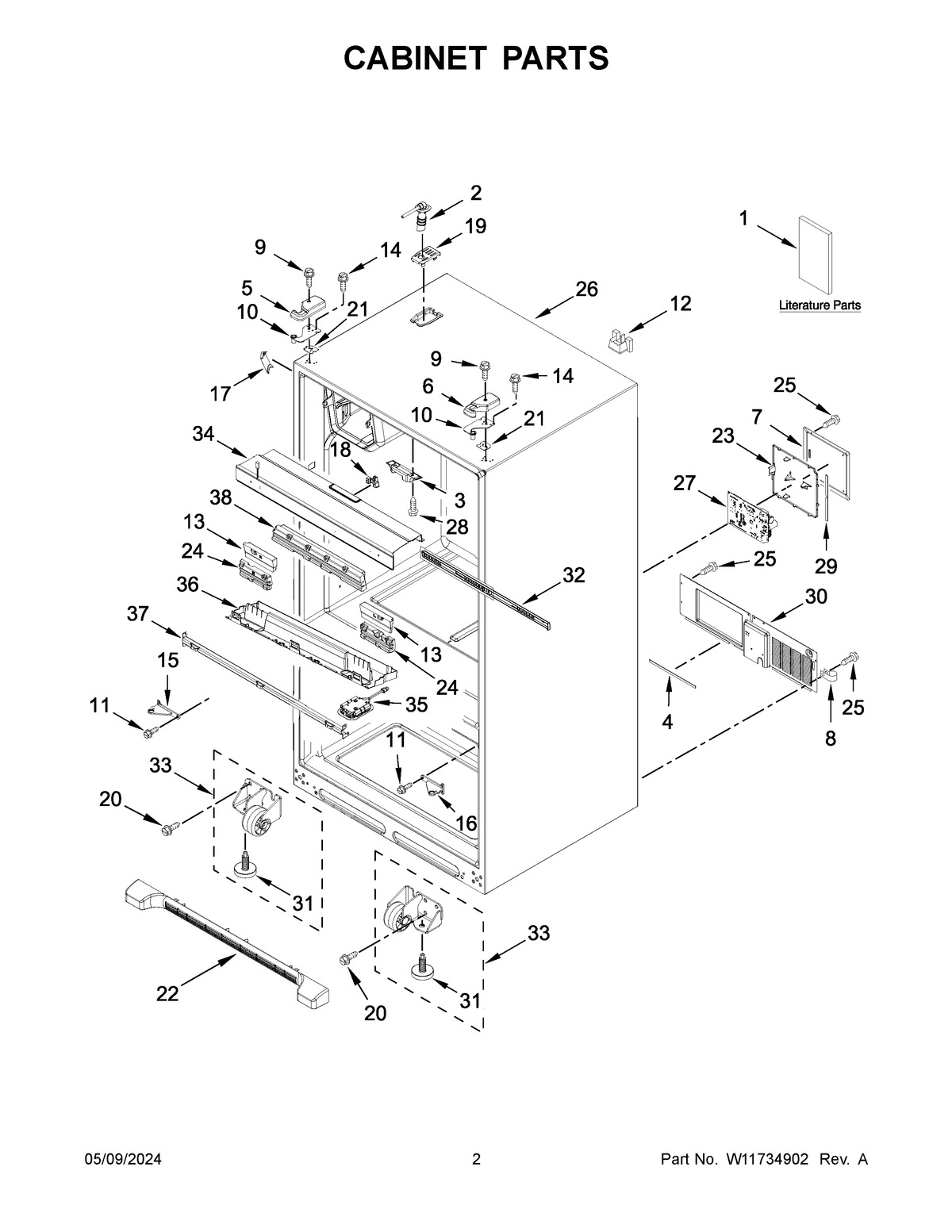

WRX735SDHW10 02 – CABINET PARTS

WRX735SDHW10 02 – CABINET PARTS

Written by

in

WRX735SDHW10 02 – CABINET PARTS

Products

PositionProduct
1AOWNERS MANUAL
1TECH SHEET
1BENERGY GUIDE
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5WPW10337634 Whirlpool Refrigerator Cover
667005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11686793 Whirlpool Block
13W11697528 Whirlpool Insulation
14WP489349 Whirlpool Refrigerator Screw
15W11642008 Whirlpool Door Hinge
16W11642010 Whirlpool Door Hinge
1712587703W Whirlpool Refrigerator Cover
18W10827867 Whirlpool Refrigerator Knob
1912981401W Whirlpool Refrigerator Cover Filter
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
23W10296541 Whirlpool Refrigerator Wire Cover
24WEDGE, SPACER (LEFT HAND & RIGHT HAND)
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICABLE PART)
27W11556912-includeCORE Whirlpool W11556912 Refrigerator Electronic Control Board + Core
28W11693756 Whirlpool Screw Assembly
29W10914798 Whirlpool Gasket
30WPW10270394 Whirlpool Refrigerator Back Cover
31WPW10141622 Whirlpool Leveler
32W10367522 Whirlpool Refrigerator Slide
33AWPW10515762 Whirlpool Refrigerator Cabinet Roller
33WPW10515763 Whirlpool Refrigerator Cabinet Roller
34W11032129 Whirlpool Refrigerator Mullion Rail
35W11483116 Whirlpool Refrigerator Module
36W10877249 Whirlpool Refrigerator Housing
37W10492234 Whirlpool Refrigerator Brace
38W10311721 Whirlpool Refrigerator Insulation
