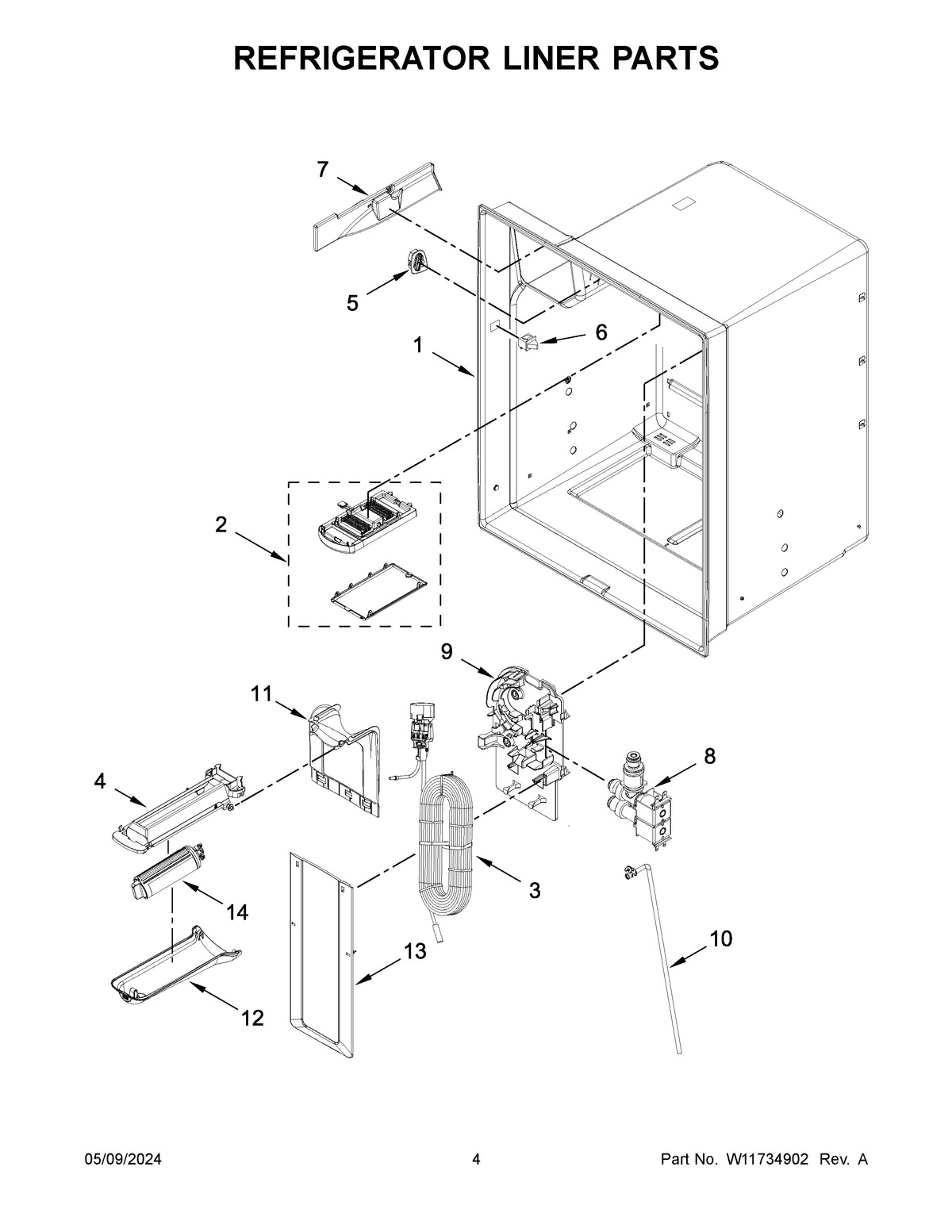

WRX735SDHW10 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MODULE
3	W11706229 Whirlpool Reservoir
4	W11706281 Whirlpool Bracket
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	WPW10309869 Whirlpool Refrigerator Cover
8	VALVE
9	WPW10334463 Whirlpool Refrigerator Bracket
10	W11666461 Whirlpool Water Tube
11	COVER, UPPER WATER TANK
12	COVER, FILTER
13	COVER, LOWER WATER TANK
14	EDRARXD1 Whirlpool Water Filter
