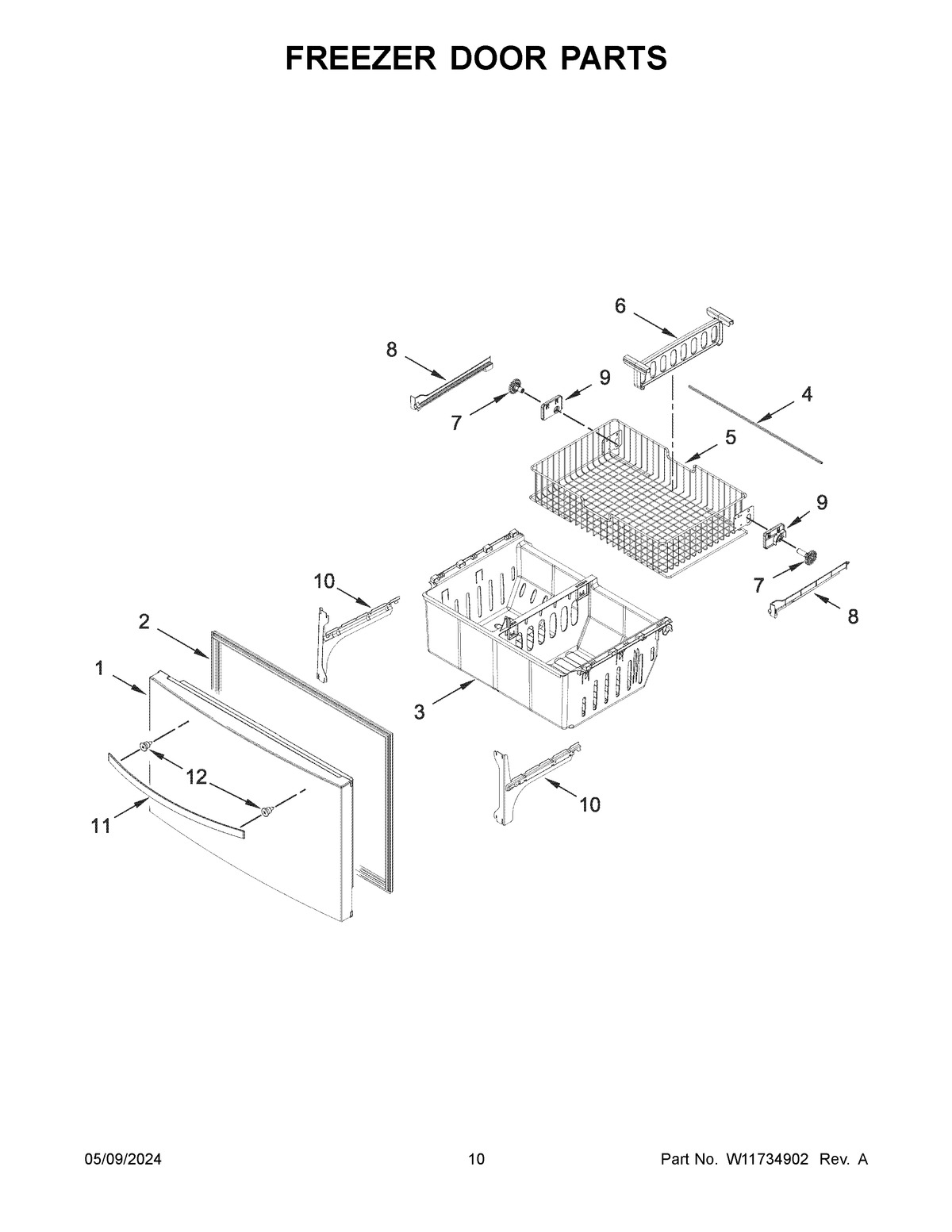

WRX735SDHW10 06 – FREEZER DOOR PARTS

WRX735SDHW10 06 – FREEZER DOOR PARTS

Written by

in

WRX735SDHW10 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W11104490 Whirlpool Refrigerator Door Assembly
2WPW10443321 Whirlpool Door Gasket
3WPW10293682 Whirlpool Refrigerator Freezer Bin
4W11173556 Whirlpool Refrigerator Shaft
5W11218042 Whirlpool Refrigerator Freezer Basket
6W10146439 Whirlpool Refrigerator Divider
7WPW10474716 Whirlpool Refrigerator Gear
7AWPW10474715 Whirlpool Refrigerator Gear
8W11489993 Whirlpool Refrigerator Rail
8AW11489994 Whirlpool Refrigerator Rail
9AW10348260 Whirlpool Refrigerator Bracket
9W10348259 Whirlpool Refrigerator Bracket Assembly
10AWPW10330993 Whirlpool Refrigerator Bracket
10WPW10330991 Whirlpool Refrigerator Bracket
11W11127178 Whirlpool Refrigerator Handle
12W11449276 Whirlpool Handle Support
