WRX735SDHZ01 05 – REFRIGERATOR DOOR PARTS

WRX735SDHZ01 05 – REFRIGERATOR DOOR PARTS

Written by

in

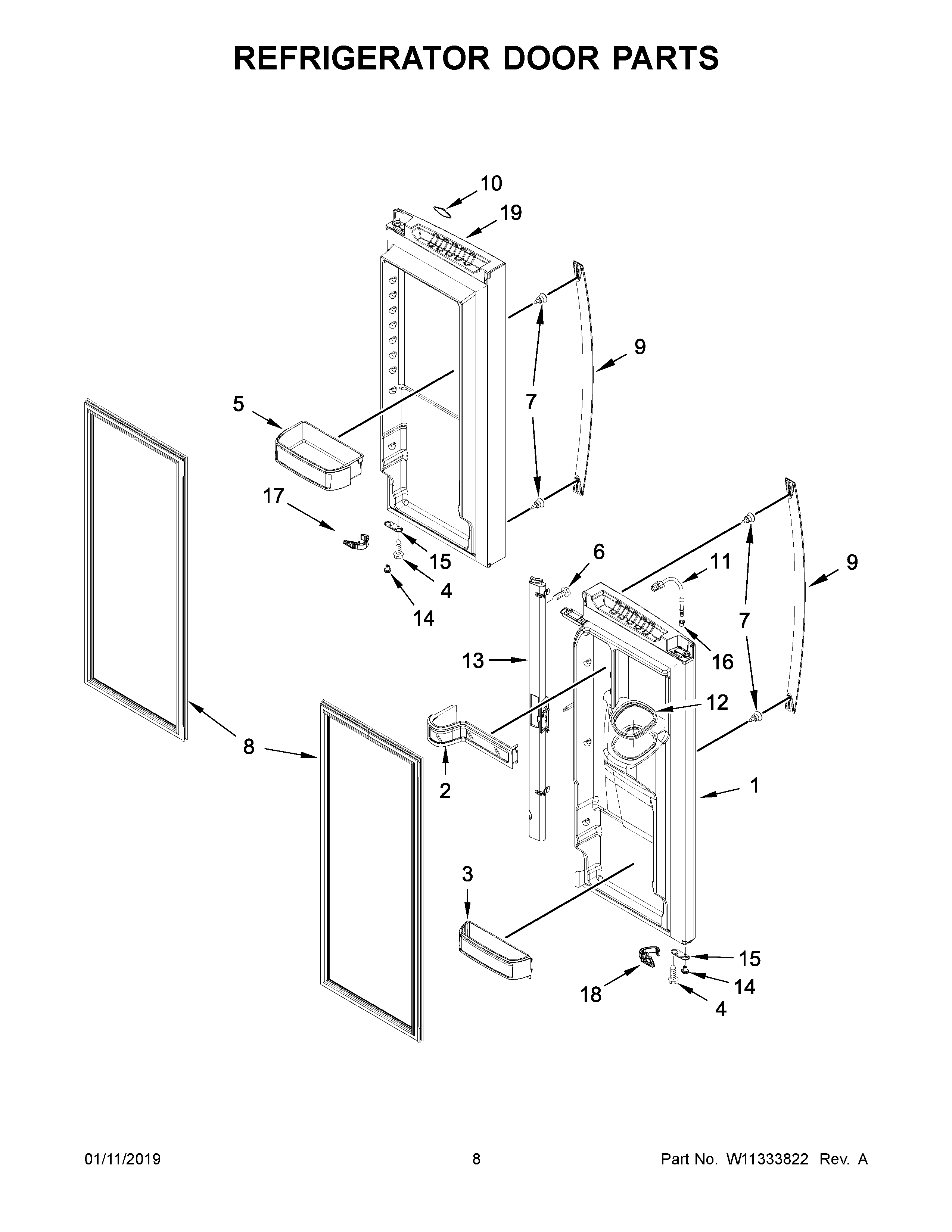

WRX735SDHZ01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11307224 Whirlpool Refrigerator Door Assembly
2W11307249 Whirlpool Refrigerator Door Assembly
3W11379148 Whirlpool Refrigerator Cantilever Bin
4WP98165 Whirlpool Screw
5W11706640 Whirlpool Bin Containment Lever
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8W10830274 Whirlpool Door Gasket
9W11045129 Whirlpool Door Handle
10W11223753 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WPW10287601 Whirlpool Seal
13WPW10311757 Whirlpool Door Guide
14WP12028505AP Whirlpool Closing Cam
15W11703060 Whirlpool Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
17W10918010 Whirlpool Refrigerator Closer
18W10918008 Whirlpool Refrigerator Closer
19W10355269 Whirlpool Cantilever Bin
