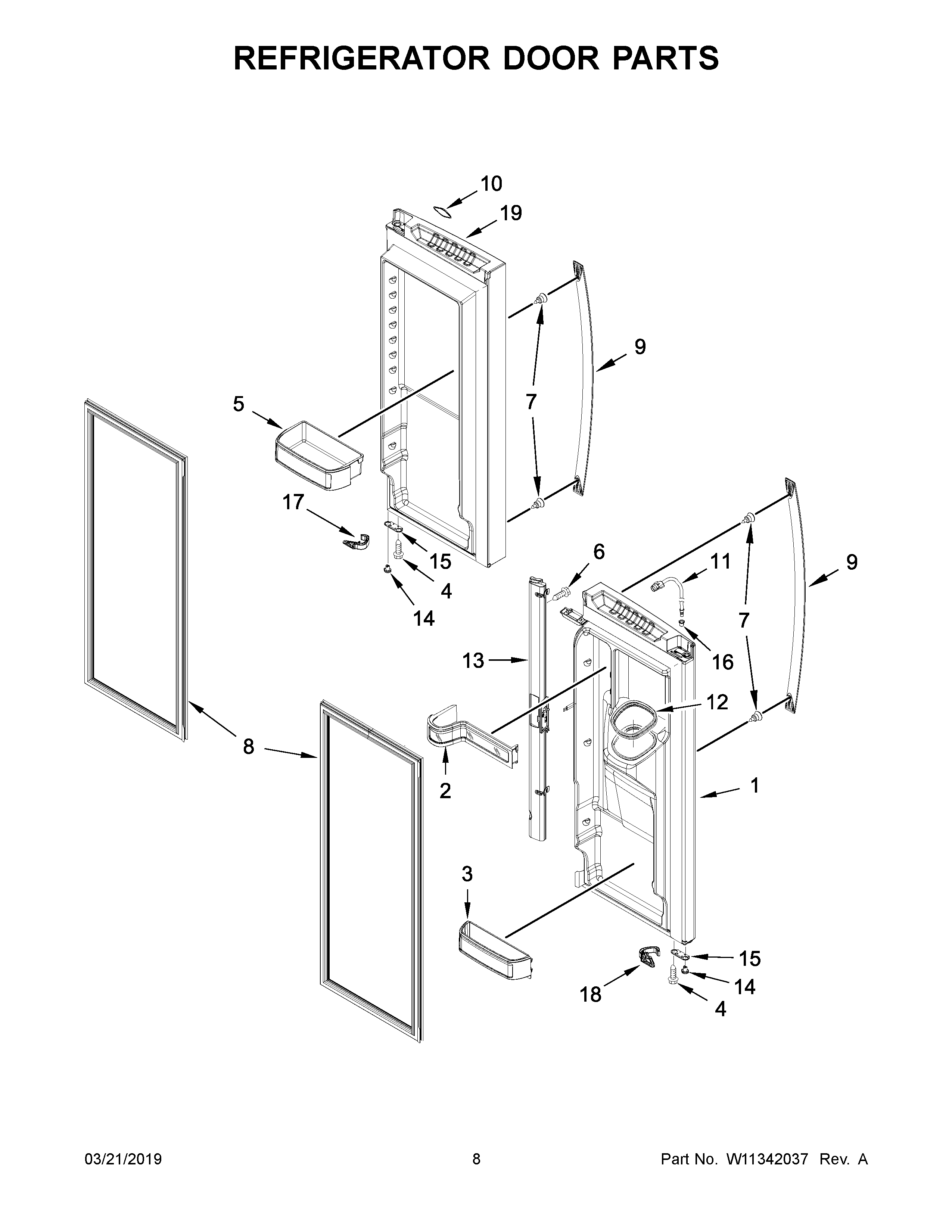

WRX735SDHZ02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W11307224 Whirlpool Refrigerator Door Assembly
2	W10355269 Whirlpool Cantilever Bin
3	W11379148 Whirlpool Refrigerator Cantilever Bin
4	WP98165 Whirlpool Screw
5	W11706640 Whirlpool Bin Containment Lever
6	W11311945 Whirlpool Refrigerator Screw
7	W11449276 Whirlpool Handle Support
8	W10830274 Whirlpool Door Gasket
9	W11045129 Whirlpool Door Handle
10	W11223753 Whirlpool Refrigerator Nameplate
11	WPW10511930 Whirlpool Refrigerator Water Tube
12	WPW10287601 Whirlpool Seal
13	WPW10311757 Whirlpool Door Guide
14	WP12028505AP Whirlpool Closing Cam
15	W11703060 Whirlpool Door Stop
16	12996601 Whirlpool Refrigerator Bushing Clip
17	W10918010 Whirlpool Refrigerator Closer
18	W10918008 Whirlpool Refrigerator Closer
19	W11307249 Whirlpool Refrigerator Door Assembly
20	WP67006908 Whirlpool Refrigerator Screw
