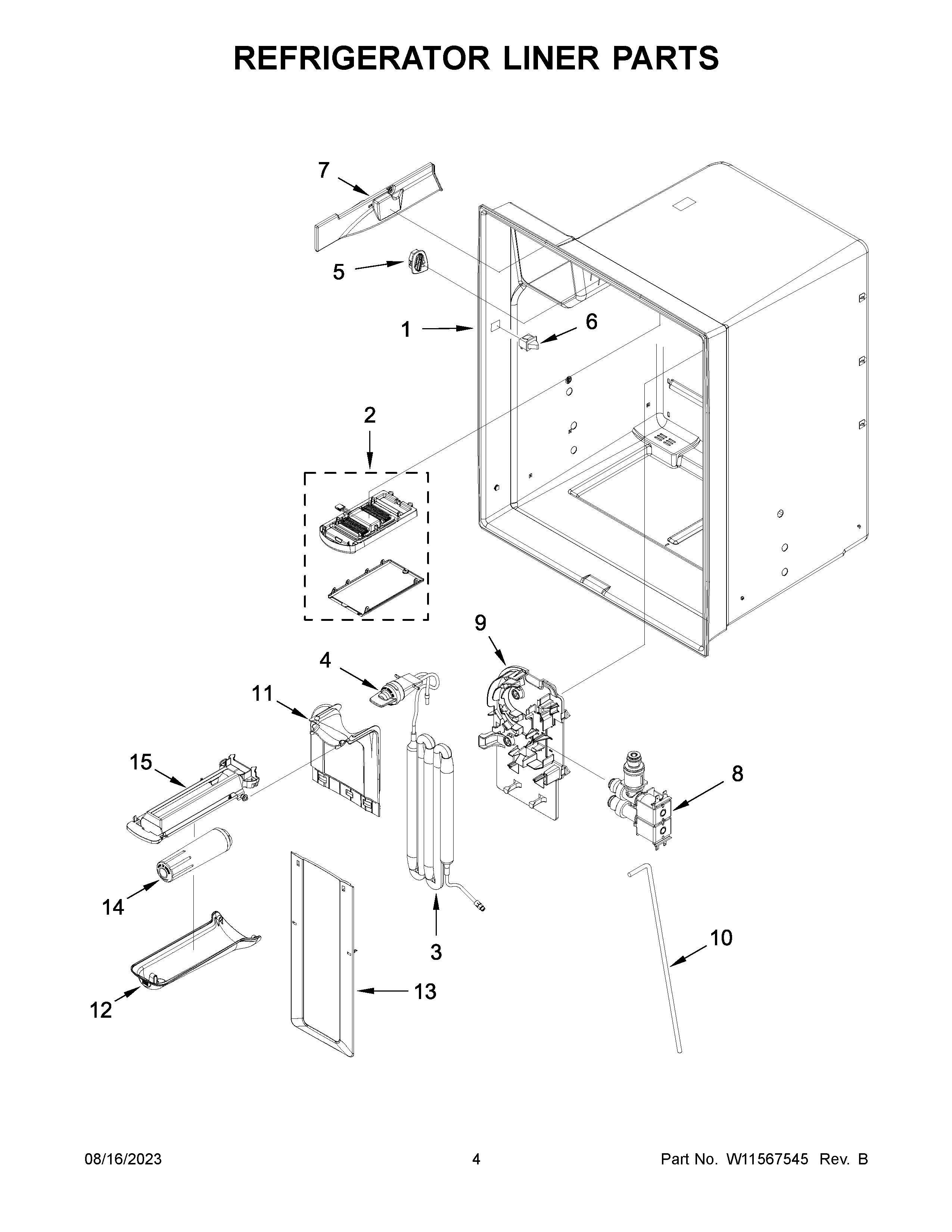

WRX735SDHZ07 03 – REFRIGERATOR LINER PARTS

WRX735SDHZ07 03 – REFRIGERATOR LINER PARTS

Written by

in

WRX735SDHZ07 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MODULE
3RESERVOIR
4W11395888 Whirlpool Refrigerator Bypass Filter Cap
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
7WPW10309869 Whirlpool Refrigerator Cover
8VALVE
9WPW10334463 Whirlpool Refrigerator Bracket
10W11666461 Whirlpool Water Tube
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
