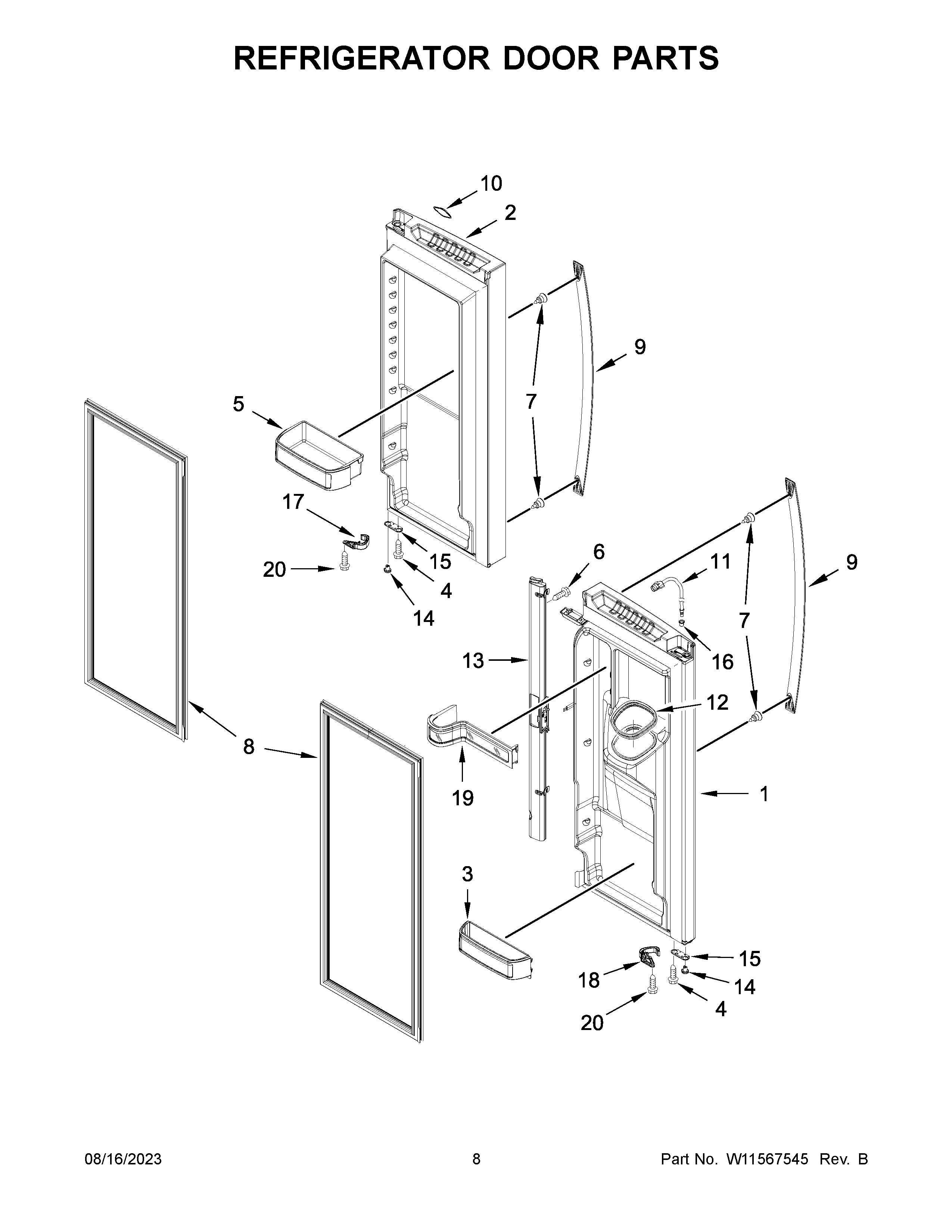

WRX735SDHZ07 05 – REFRIGERATOR DOOR PARTS

WRX735SDHZ07 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX735SDHZ07 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11435353 Whirlpool Refrigerator Service Door Kit
2W11435352 Whirlpool Refrigerator Service Door Kit
3W11379148 Whirlpool Refrigerator Cantilever Bin
4WP98165 Whirlpool Screw
5W11706640 Whirlpool Bin Containment Lever
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8W10830274 Whirlpool Door Gasket
9W11045129 Whirlpool Door Handle
10W11223753 Whirlpool Refrigerator Nameplate
11W11677733 Whirlpool Water Tube
12WPW10287601 Whirlpool Seal
13WPW10311757 Whirlpool Door Guide
14WP12028505AP Whirlpool Closing Cam
15W11703060 Whirlpool Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
17W10918010 Whirlpool Refrigerator Closer
18W10918008 Whirlpool Refrigerator Closer
19W10355269 Whirlpool Cantilever Bin
20WP67006908 Whirlpool Refrigerator Screw
