WRX735SDHZ07 08 – SHELF PARTS

WRX735SDHZ07 08 – SHELF PARTS

Written by

in

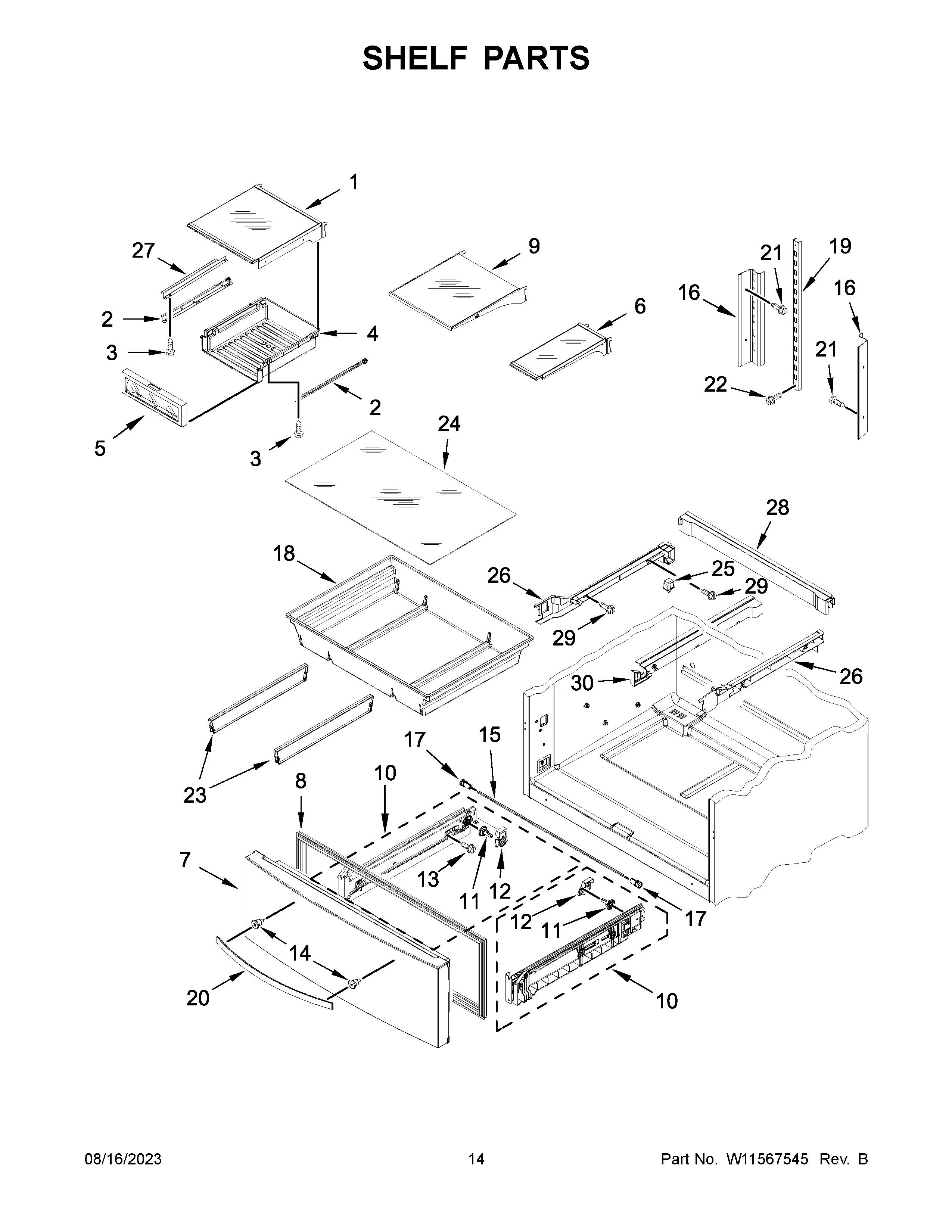

WRX735SDHZ07 08 – SHELF PARTS

Products

PositionProduct
1W11243759 Whirlpool Glass Shelf
2AWPW10346890 Whirlpool Refrigerator Slide
2WPW10346891 Whirlpool Refrigerator Slide
3WP8281136 Whirlpool Screw
4PAN, DELI
5WPW10396909 Whirlpool Refrigerator Front Pan
6W11241612 Whirlpool Refrigerator Cantilever Shelf
7W11435354 Whirlpool Refrigerator Door Assembly
8WPW10443326 Whirlpool Refrigerator FIP Gasket
9W11213107 Whirlpool Refrigerator Glass Shelf
10W11093713 Whirlpool Refrigerator Adapter
10AW11093714 Whirlpool Refrigerator Adapter
11GEAR, SPUR
12W10284709 Whirlpool Refrigerator Cover
12AW10294414 Whirlpool Refrigerator Cover
13WPW10272364 Whirlpool Refrigerator Screw
14W11449276 Whirlpool Handle Support
15W10802341 Whirlpool Refrigerator Shaft
16W10251968 Whirlpool Ladder
16AW10251965 Whirlpool Refrigerator Ladder
17WPW10277361 Whirlpool Refrigerator Collar
18W11483068 Whirlpool Refrigerator Utility Pan
19W10273464 Whirlpool Refrigerator Ladder
20W11045125 Whirlpool Door Handle
2167006425 Whirlpool Refrigerator Screw
22WP67006415 Whirlpool Refrigerator Screw
23W11340457 Whirlpool Refrigerator Divider Assembly
24WPW10296571 Whirlpool Glass Shelf Assembly
25W11291138 Whirlpool Refrigerator Door Switch
26W10311723 Whirlpool Refrigerator Rail
26AW11715934 Whirlpool Rail
27W11226546 Whirlpool Refrigerator Rail
28RAIL, REAR PANTRY
29WP98165 Whirlpool Screw
30W10311725 Whirlpool Refrigerator Cover
