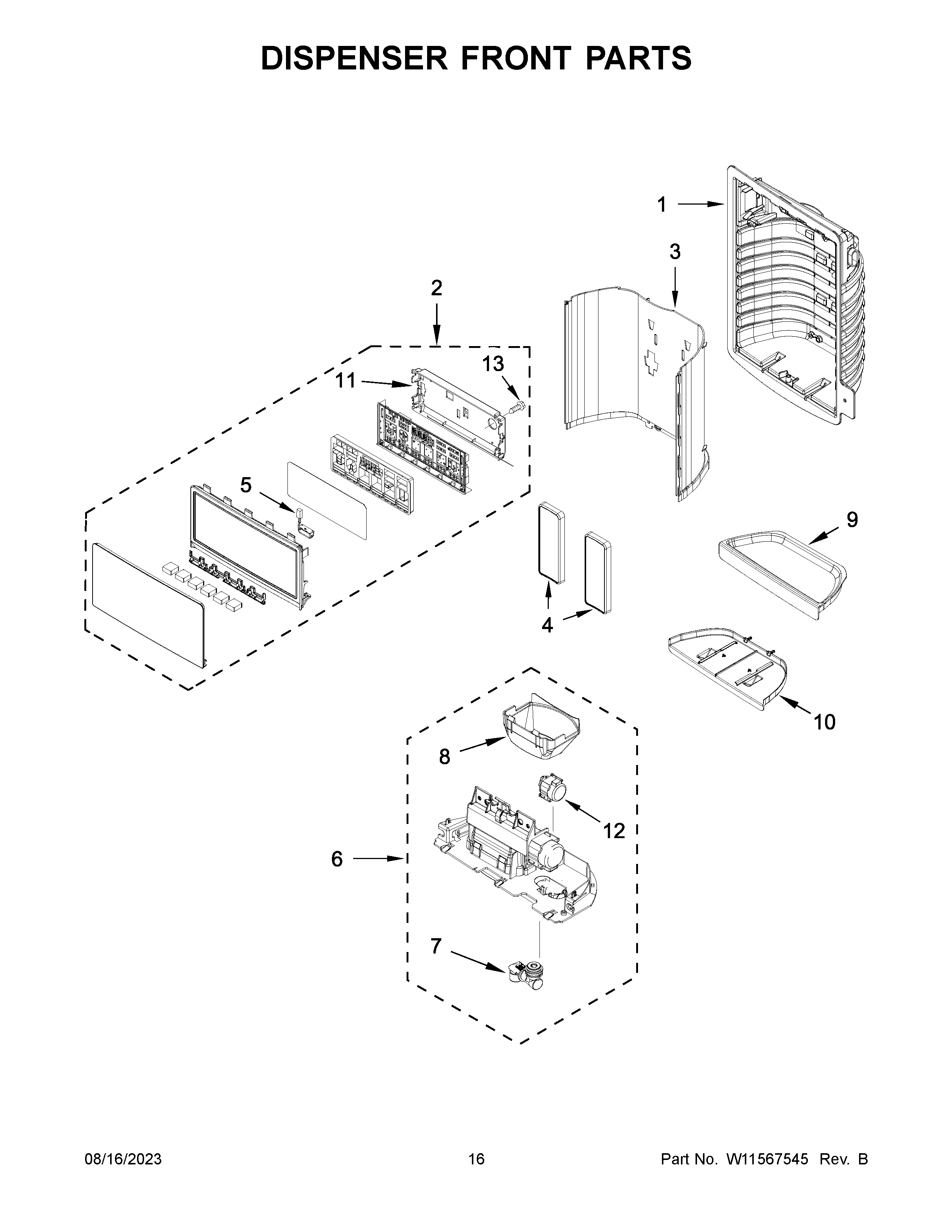

WRX735SDHZ07 09 – DISPENSER FRONT PARTS

WRX735SDHZ07 09 – DISPENSER FRONT PARTS

Written by

in

WRX735SDHZ07 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2W11556911 Whirlpool Refrigerator UI Panel
3W11045978 Whirlpool Refrigerator Shield
4WPW10353848 Whirlpool Refrigerator Pad
5W11290115 Whirlpool Refrigerator Light
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8WPW10435760 Whirlpool Refrigerator Ice Guide
9W11192301 Whirlpool Refrigerator Drip Tray
10WPW10267863 Whirlpool Refrigerator Drip Tray
11W10254277 Whirlpool Cover Assembly
12WPW10205979 Whirlpool Refrigerator Ice Door Motor
132006254 Whirlpool Refrigerator Screw
