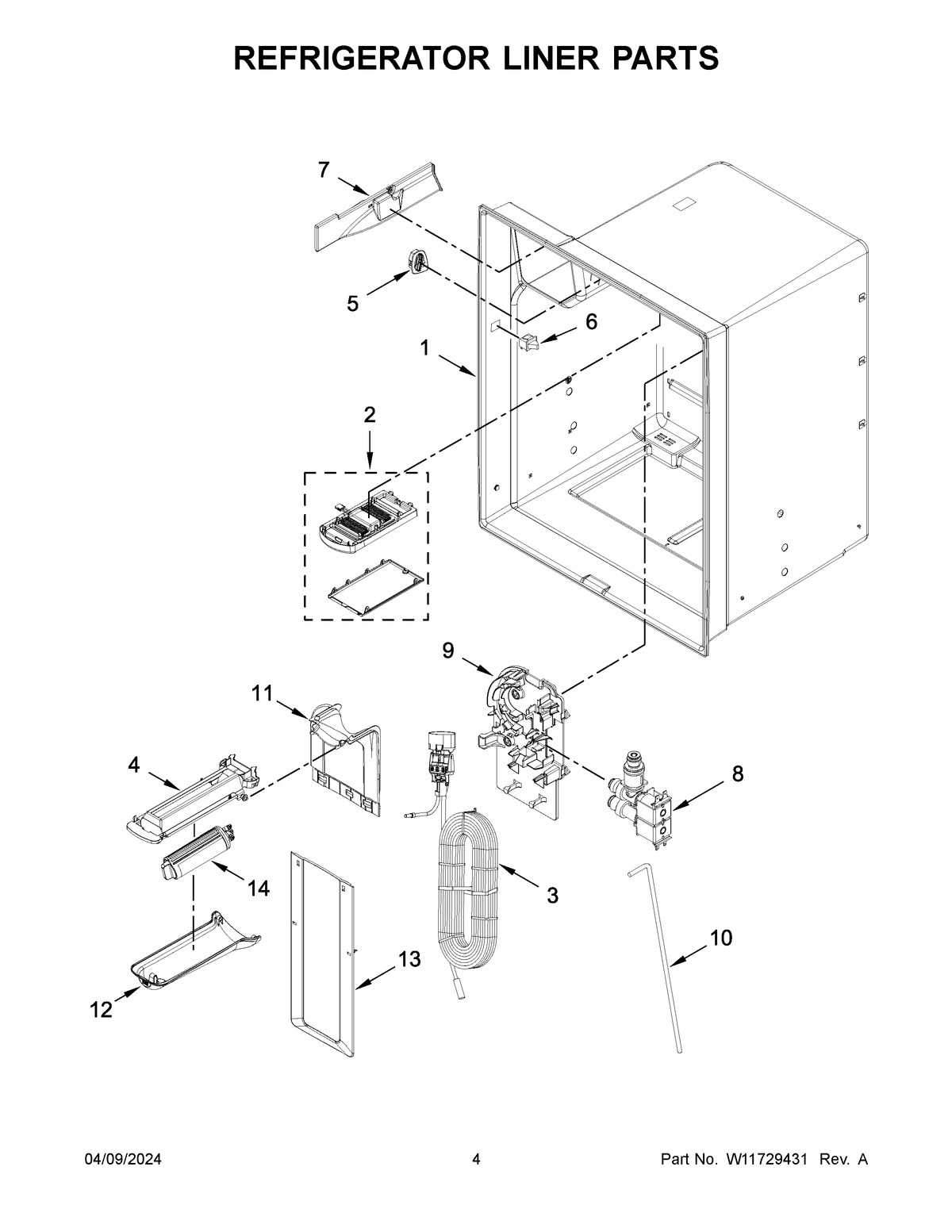

WRX735SDHZ11 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MODULE
3W11706229 Whirlpool Reservoir
4W11706281 Whirlpool Bracket
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
7WPW10309869 Whirlpool Refrigerator Cover
8VALVE
9WPW10334463 Whirlpool Refrigerator Bracket
10W11666461 Whirlpool Water Tube
11COVER, UPPER WATER TANK
12COVER, FILTER
13COVER, LOWER WATER TANK
14EDRARXD1 Whirlpool Water Filter
