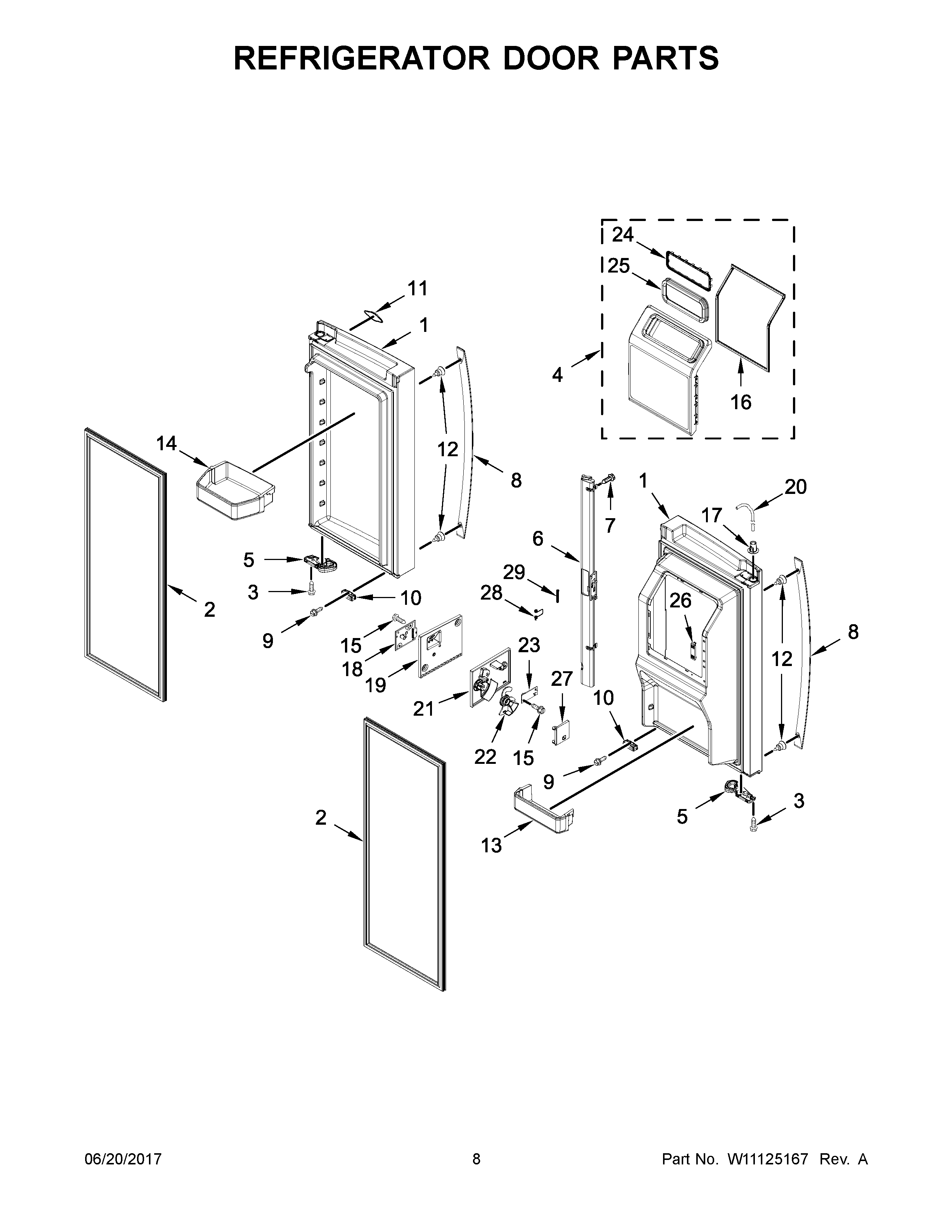

WRX986SIHV00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W11104478 Whirlpool Refrigerator Door Assembly
1C	W10919619 Whirlpool Refrigerator Door Assembly
1B	W11104467 Whirlpool Refrigerator Door Assembly
1A	W10919616 Whirlpool Refrigerator Door Assembly
2	W11544658 Whirlpool Gasket Assembly
2A	W10846057 Whirlpool Door Gasket
4	WPW10549589 Whirlpool Refrigerator Ice Door
5A	W11212164 Whirlpool Refrigerator Door Closer
5	W10904595 Whirlpool Refrigerator Closer
6	W11690637 Whirlpool Refrigerator Mullion Rail
6A	W11025614 Whirlpool Door Support
7	W11311945 Whirlpool Refrigerator Screw
8	W11045128 Whirlpool Refrigerator Handle
8A	W11045129 Whirlpool Door Handle
9	WP98165 Whirlpool Screw
10A	W11573367 Whirlpool Refrigerator Door Bumper
10	W10407187 Whirlpool Refrigerator Door Bumper
11	W11223753 Whirlpool Refrigerator Nameplate
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W10846358 Whirlpool Refrigerator Door Bin
14	WPW10674770 Whirlpool Refrigerator Cantilever Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W10562834 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	WPW10499015 Whirlpool Refrigerator Water Tube
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29	WP2198634 Whirlpool Door Pin
