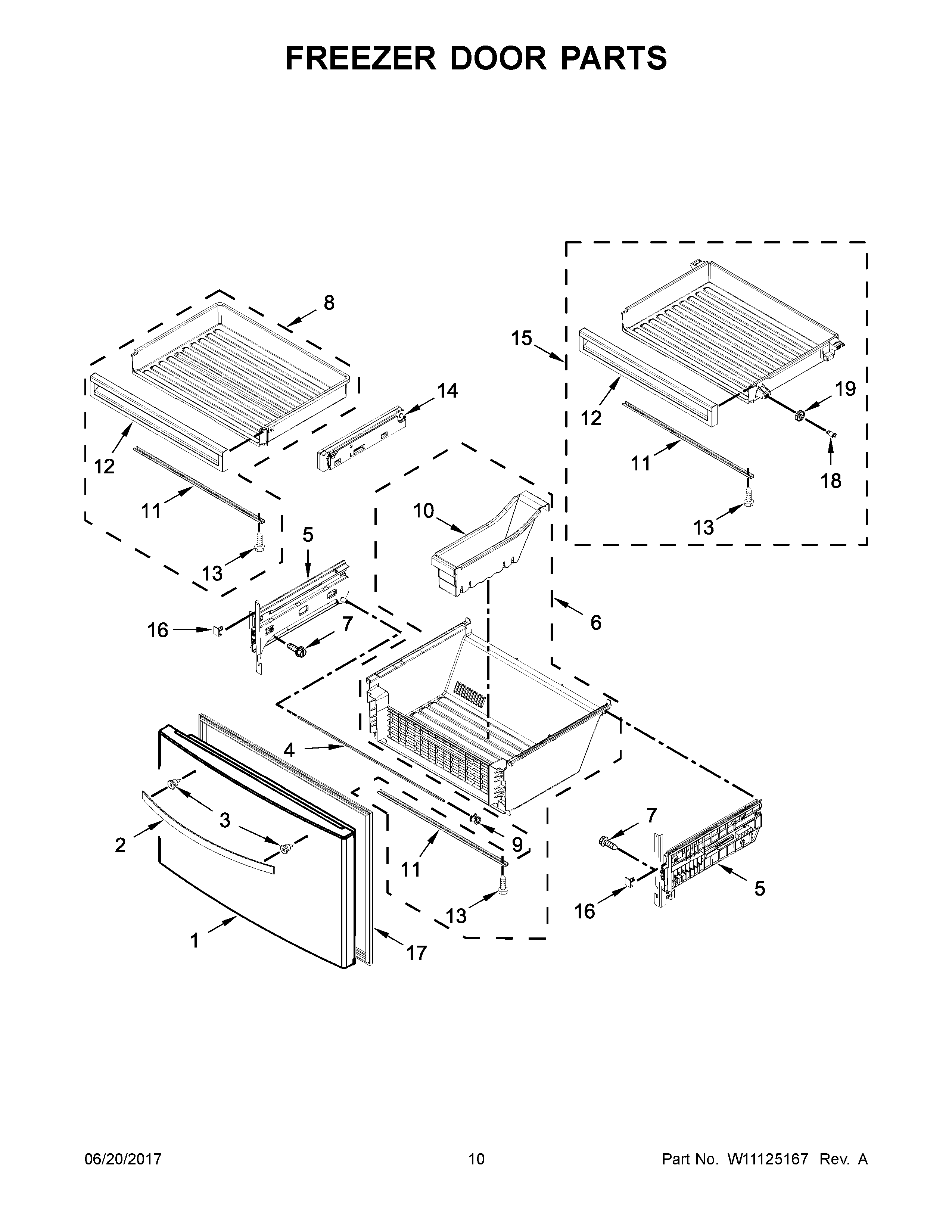

WRX986SIHV00 06 – FREEZER DOOR PARTS

WRX986SIHV00 06 – FREEZER DOOR PARTS

Written by

in

WRX986SIHV00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1AW10919622 Whirlpool Refrigerator Door Assembly
1W11104482 Whirlpool Refrigerator Door Assembly
2AW11045125 Whirlpool Door Handle
2W11125509 Whirlpool Door Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10650427 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8WPW10493169 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11W11677723 Whirlpool Support
12W11175811 Whirlpool Refrigerator Front Panel
13WP489443 Whirlpool Refrigerator Screw
14BRACKET
14AW10858092 Whirlpool Refrigerator Bracket
15W10858802 Whirlpool Refrigerator Freezer Bin
16AWPW10485089 Whirlpool Refrigerator Pan Stop
16WPW10485096 Whirlpool Refrigerator Pan Stop
17W10407215 Whirlpool Door Gasket
17AGASKET-FIP GRAY
18W11573594 Whirlpool Refrigerator Axle
19W11578839 Whirlpool Roller
