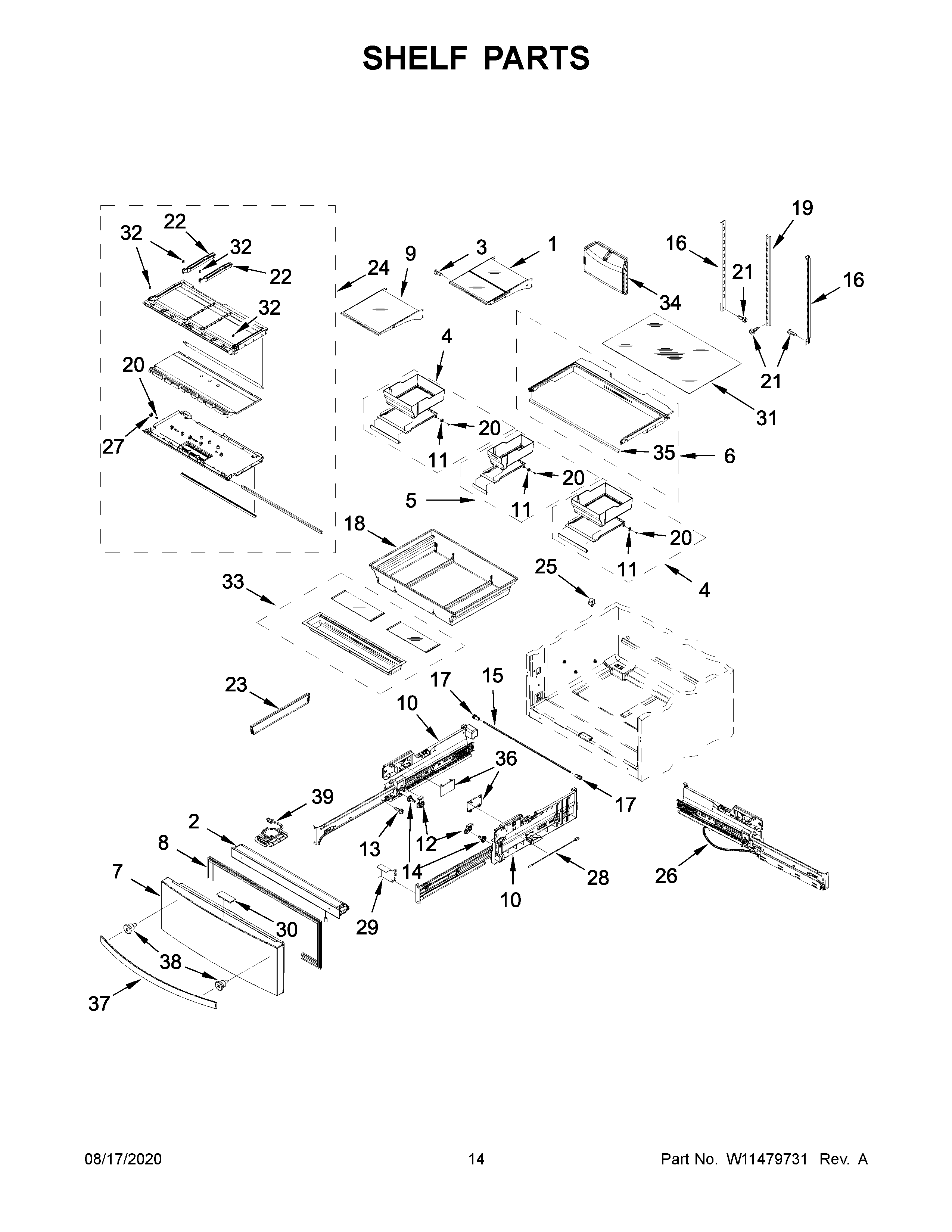

WRX986SIHV02 08 – SHELF PARTS

WRX986SIHV02 08 – SHELF PARTS

Written by

in

WRX986SIHV02 08 – SHELF PARTS

Products

PositionProduct
1WPW10709175 Whirlpool Refrigerator Glass Shelf
2W11483111 Whirlpool Mullion Rail
3W10421495 Whirlpool Refrigerator Screw
4W10839369 Whirlpool Refrigerator Crisper Pan
5W10509275 Whirlpool Refrigerator Crisper Pan
6W11127833 Whirlpool Refrigerator Crisper Drawer Frame
7W11104496 Whirlpool Refrigerator Door Assembly
7AW11435361 Whirlpool Refrigerator DOR-FIP
8W10622445 Whirlpool Refrigerator FIP Gasket
8AW10622446 Whirlpool Refrigerator Door Gasket
9WPW10709163 Whirlpool Refrigerator Glass Shelf
10W11215629 Whirlpool Refrigerator Adapter
10AW11093718 Whirlpool Refrigerator Adapter
12AW10294414 Whirlpool Refrigerator Cover
12W10284709 Whirlpool Refrigerator Cover
1312991702 Whirlpool Screw
14GEAR, SPUR
15W10802341 Whirlpool Refrigerator Shaft
16LADDER
17WPW10277361 Whirlpool Refrigerator Collar
18WPW10530656 Whirlpool Refrigerator Utility Pan
19W11690685 Whirlpool Ladder
2067006692 Whirlpool Refrigerator Screw
21W10423560 Whirlpool Refrigerator Screw
22W10530296 Whirlpool Refrigerator Guide
23DIVIDER, LARGE PANTRY
24W10782690 Whirlpool Refrigerator Floor
25W11123941 Whirlpool Refrigerator Switch
26W11170612 Whirlpool Refrigerator Wire Harness
27W10788795 Whirlpool Refrigerator Roller
28W11168403 Whirlpool Refrigerator Thermistor
29W10518378 Whirlpool Refrigerator Cover
30AWPW10503833-includeCORE Whirlpool WPW10503833 Refrigerator Electronic Control Board + Core
30WPW10599145-includeCORE Whirlpool WPW10599145 Refrigerator Electronic Control Board + Core
31W11038526 Whirlpool Shelf Glass
3212702901 Whirlpool Refrigerator Pad
33W10858273 Whirlpool Refrigerator Bin
34W10826105 Whirlpool Refrigerator Pro Service
35W10530297 Whirlpool Drawer Support
36W10518036 Whirlpool Refrigerator Cover
37AW11045125 Whirlpool Door Handle
37W11125509 Whirlpool Door Handle
38W11449276 Whirlpool Handle Support
39W11483116 Whirlpool Refrigerator Module
