WRX986SIHV03 02 – CABINET PARTS
Written by
in

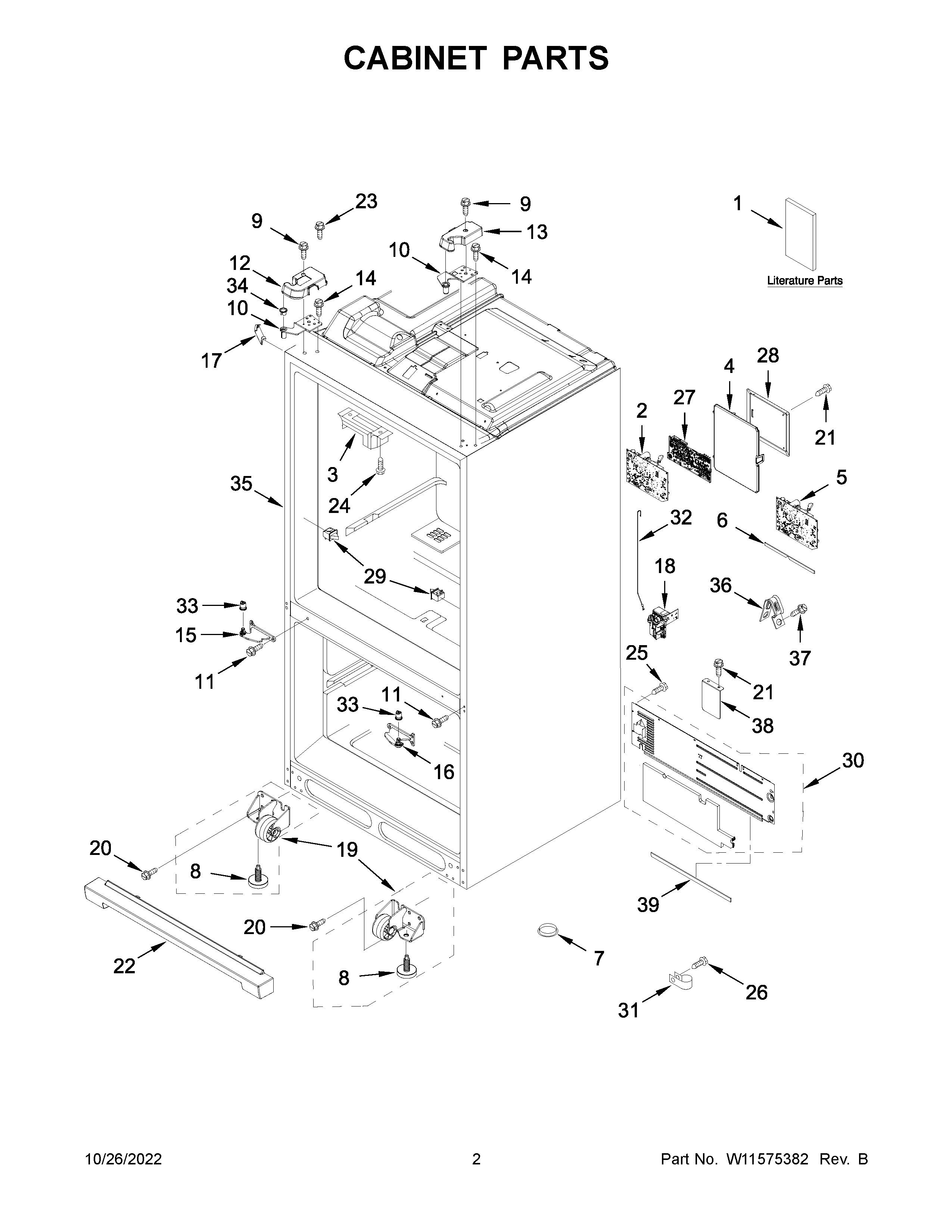

WRX986SIHV03 02 – CABINET PARTS
Products
Position
Product
1C
ENERGY GUIDE
1B
TECH SHEET, OWNERS MANUAL
1
TECH SHEET (ENGLISH)
1A
TECH SHEET (FRENCH)
2
W10830278 Whirlpool Refrigerator Electronic Control Board
3
WPW10344432 Whirlpool Pivot Block
4
W10277839 Whirlpool Refrigerator Cover
5
W10843055 Whirlpool Refrigerator Electronic Control Board + Core
6
W10415341 Whirlpool Refrigerator Gasket
7
A3076901 Whirlpool Refrigerator Plug
8
WPW10141622 Whirlpool Leveler
9
WP8281196 Whirlpool Screw
10A
W11592404 Whirlpool Refrigerator Door Hinge
10
W11592405 Whirlpool Door Hinge
11
W11573362 Whirlpool Screw Assembly
11A
W10673842 Whirlpool Refrigerator Screw
12
WPW10471618 Whirlpool Refrigerator Cover
12A
W10471617 Whirlpool Refrigerator Cover
13A
COVER, TOP HINGE RIGHT HAND (BLACK)
13
WPW10407158 Whirlpool Refrigerator Cover Assembly
14
W11126052 Whirlpool Screw Assembly
15A
W10407279 Whirlpool Refrigerator Door Hinge
15
W10878115 Whirlpool Refrigerator Door Hinge
16
W11240748 Whirlpool Refrigerator Door Hinge
16A
W10407275 Whirlpool Refrigerator Door Hinge
17A
67003485 Whirlpool Refrigerator Corner Cover (Black)
17
WP12587703AP Whirlpool Refrigerator Filler
18
VALVE
19A
WPW10515762 Whirlpool Refrigerator Cabinet Roller
19
WPW10515763 Whirlpool Refrigerator Cabinet Roller
20
67006564 Whirlpool Refrigerator Screw
21
W11686675 Whirlpool Screw
22
WPW10637671 Whirlpool Refrigerator Front Grille
22A
WPW10637669 Whirlpool Refrigerator Front Grille
23
W11214483 Whirlpool Refrigerator Screw
24
W10854958 Whirlpool Refrigerator Screw
26
67006425 Whirlpool Refrigerator Screw
27
W10830288-includeCORE Whirlpool W10830288 Refrigerator LED Control Board + Core
28
W10754591 Whirlpool Refrigerator Cover
29
W11396033 Whirlpool Refrigerator Rocker Switch
30
W11482027 Whirlpool Refrigerator Back Cover
31
W11456069 Whirlpool Refrigerator Clamp
32
W11482381 Whirlpool Refrigerator Water Tube
33
COUPLER, DOOR
34
W10212137 Whirlpool Refrigerator Grommet
35
CABINET (NOT A SERVICEABLE PART)
36
549193 Whirlpool Refrigerator Power Clamp
37
SCREW
38
W10336736 Whirlpool Refrigerator Cover
39
W11534848 Whirlpool Gasket
←
