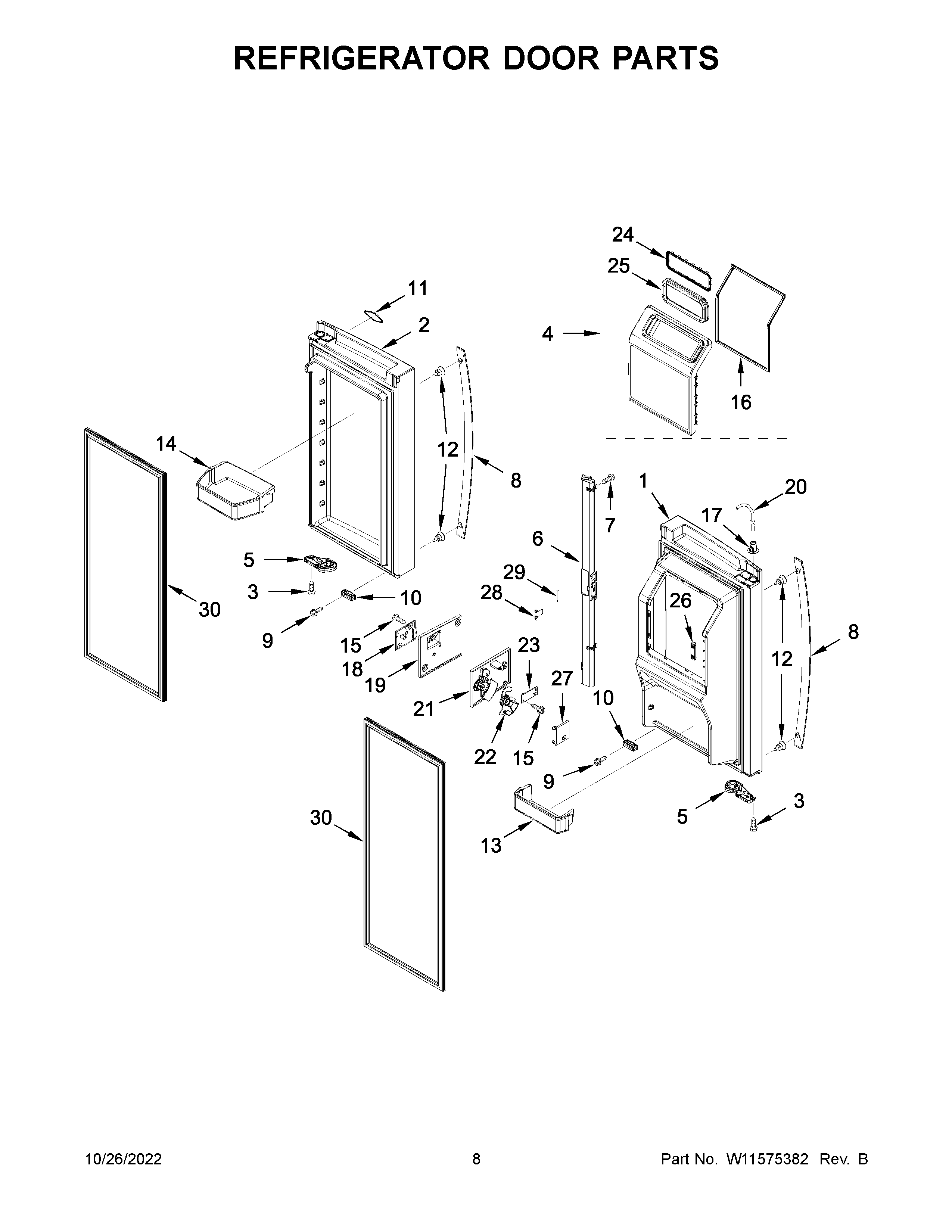

WRX986SIHV03 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W11518696 Whirlpool Refrigerator Door Assembly
1A	W11518693 Whirlpool Refrigerator Door Assembly
2A	W11104467 Whirlpool Refrigerator Door Assembly
2	W11435357 Whirlpool Refrigerator Door Assembly
4	W11261139 Whirlpool Refrigerator Ice Door
5A	W11212164 Whirlpool Refrigerator Door Closer
5	W10904595 Whirlpool Refrigerator Closer
6A	W11690637 Whirlpool Refrigerator Mullion Rail
6	W11025614 Whirlpool Door Support
7	W11311945 Whirlpool Refrigerator Screw
8A	W11045128 Whirlpool Refrigerator Handle
8	W11045129 Whirlpool Door Handle
9	WP98165 Whirlpool Screw
10A	W10407187 Whirlpool Refrigerator Door Bumper
10	W11573367 Whirlpool Refrigerator Door Bumper
11	W11223753 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W10846358 Whirlpool Refrigerator Door Bin
14	WPW10674770 Whirlpool Refrigerator Cantilever Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W11315302 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	WPW10499015 Whirlpool Refrigerator Water Tube
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	W11504379 Whirlpool Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29	WP2198634 Whirlpool Door Pin
30	W10846057 Whirlpool Door Gasket
30A	W11544658 Whirlpool Gasket Assembly
