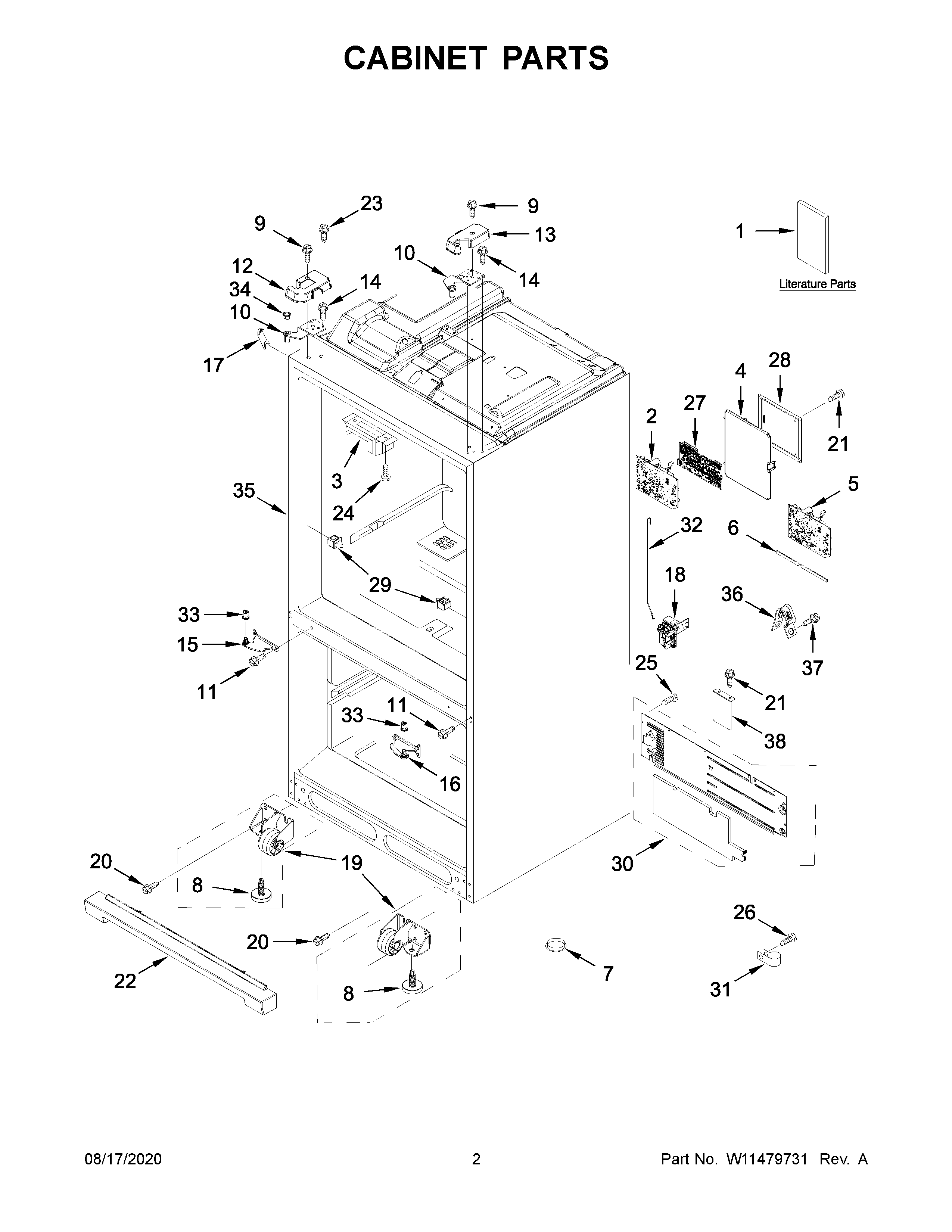

WRX986SIHZ02 02 – CABINET PARTS

WRX986SIHZ02 02 – CABINET PARTS

Written by

in

WRX986SIHZ02 02 – CABINET PARTS

Products

Position	Product
1B	TECH SHEET, USE AND CARE GUIDE
1	TECH SHEET (ENGLISH)
1A	TECH SHEET (FRENCH)
1C	ENERGY GUIDE
2	W10830278 Whirlpool Refrigerator Electronic Control Board
3	WPW10344432 Whirlpool Pivot Block
4	W10277839 Whirlpool Refrigerator Cover
5	W10843055 Whirlpool Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10	W11592405 Whirlpool Door Hinge
10A	W11592404 Whirlpool Refrigerator Door Hinge
11A	W11573362 Whirlpool Screw Assembly
11	W10673842 Whirlpool Refrigerator Screw
12	W10471617 Whirlpool Refrigerator Cover
12A	WPW10471618 Whirlpool Refrigerator Cover
13A	WPW10407158 Whirlpool Refrigerator Cover Assembly
13	COVER, TOP HINGE RIGHT HAND (BLACK)
14	W11126052 Whirlpool Screw Assembly
15	W10407279 Whirlpool Refrigerator Door Hinge
15A	W10878115 Whirlpool Refrigerator Door Hinge
16A	W11240748 Whirlpool Refrigerator Door Hinge
16	W10407275 Whirlpool Refrigerator Door Hinge
17A	WP12587703AP Whirlpool Refrigerator Filler
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	VALVE
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	W11686675 Whirlpool Screw
22	WPW10637669 Whirlpool Refrigerator Front Grille
22A	WPW10637671 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24	W10854958 Whirlpool Refrigerator Screw
26	67006425 Whirlpool Refrigerator Screw
27	W10830288-includeCORE Whirlpool W10830288 Refrigerator LED Control Board + Core
28	W10754591 Whirlpool Refrigerator Cover
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W11482381 Whirlpool Refrigerator Water Tube
33	COUPLER, DOOR
34	W10212137 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
36	549193 Whirlpool Refrigerator Power Clamp
37	SCREW
38	W10336736 Whirlpool Refrigerator Cover
