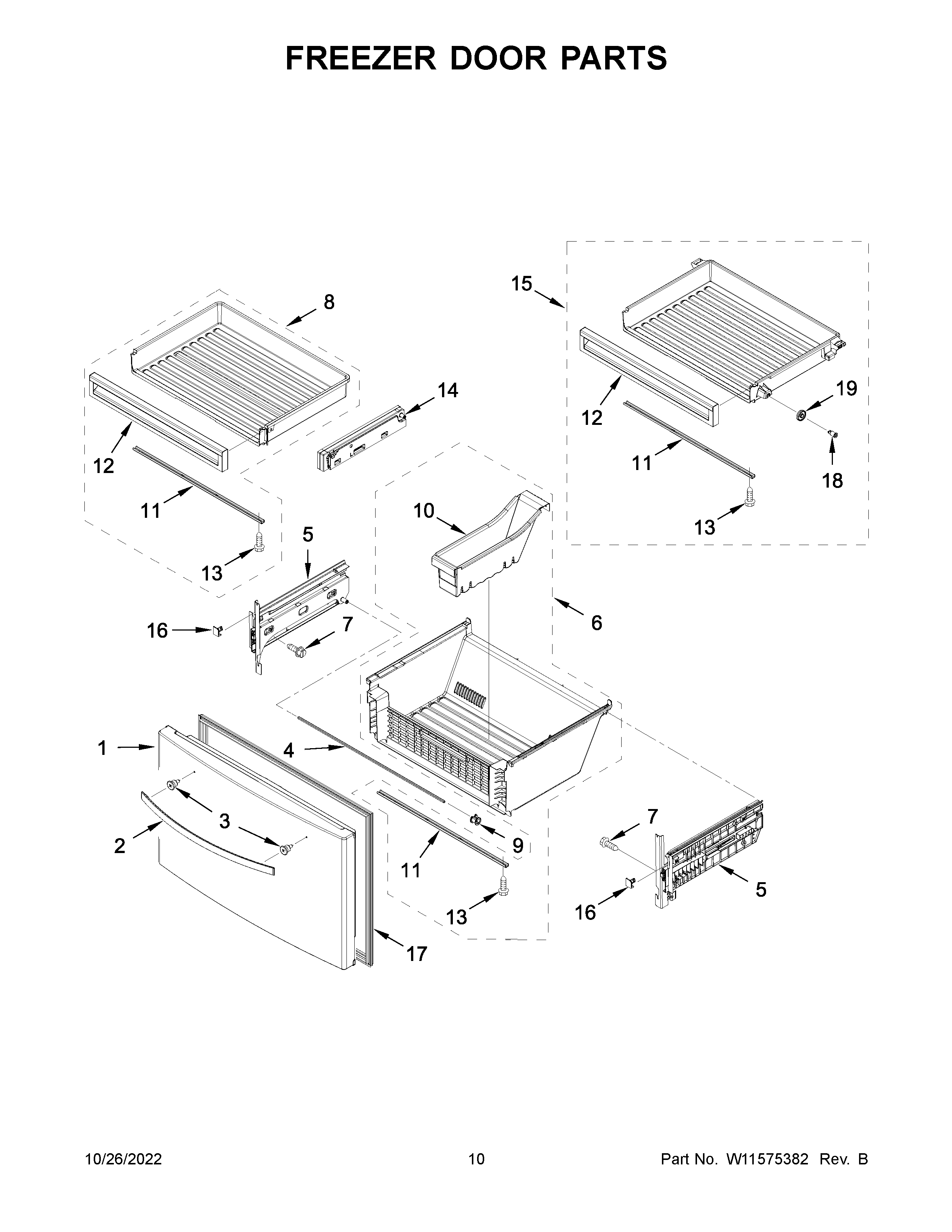

WRX986SIHZ03 06 – FREEZER DOOR PARTS

WRX986SIHZ03 06 – FREEZER DOOR PARTS

Written by

in

WRX986SIHZ03 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W11435360 Whirlpool Refrigerator Door FIP
1AW11104482 Whirlpool Refrigerator Door Assembly
2AW11125509 Whirlpool Door Handle
2W11045125 Whirlpool Door Handle
3W11449276 Whirlpool Handle Support
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10650427 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8WPW10493169 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11W11677723 Whirlpool Support
12W11175811 Whirlpool Refrigerator Front Panel
13WP489443 Whirlpool Refrigerator Screw
14BRACKET
14AW10858092 Whirlpool Refrigerator Bracket
15W10858802 Whirlpool Refrigerator Freezer Bin
16AWPW10485089 Whirlpool Refrigerator Pan Stop
16WPW10485096 Whirlpool Refrigerator Pan Stop
17GASKET-FIP GRAY
17AW10407215 Whirlpool Door Gasket
18CABINET (NOT A SERVICEABLE PART)
19W11578839 Whirlpool Roller
