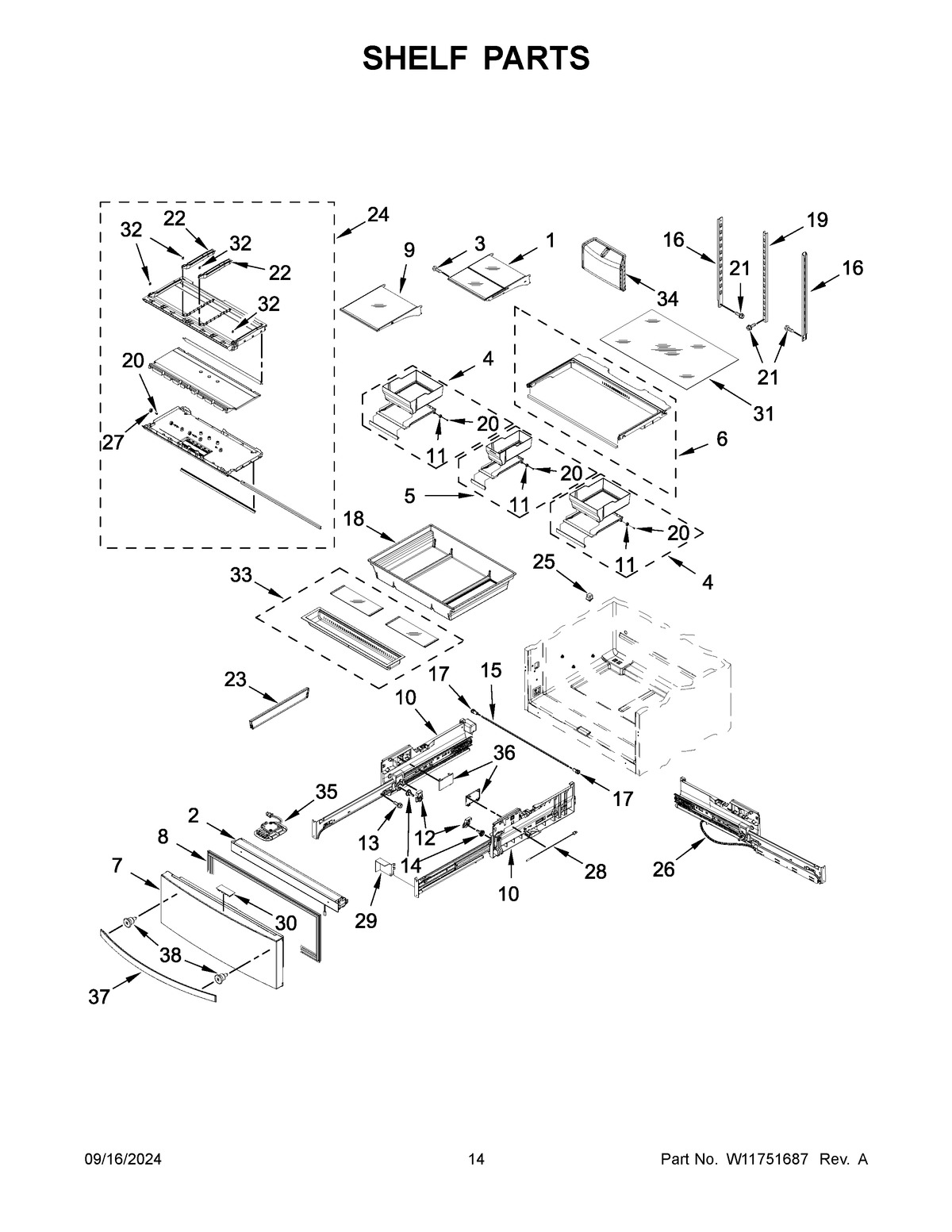

WRX986SIHZ04 08 – SHELF PARTS

WRX986SIHZ04 08 – SHELF PARTS

Written by

in

WRX986SIHZ04 08 – SHELF PARTS

Products

Position	Product
1	WPW10709175 Whirlpool Refrigerator Glass Shelf
2	W11483111 Whirlpool Mullion Rail
3	W10421495 Whirlpool Refrigerator Screw
4	W10839369 Whirlpool Refrigerator Crisper Pan
5	W11507281 Whirlpool Crispr Pan
6	W11127833 Whirlpool Refrigerator Crisper Drawer Frame
7	W11435361 Whirlpool Refrigerator DOR-FIP
8	W10622446 Whirlpool Refrigerator Door Gasket
9	WPW10709163 Whirlpool Refrigerator Glass Shelf
10A	W11093718 Whirlpool Refrigerator Adapter
10	W11215629 Whirlpool Refrigerator Adapter
12	W10284709 Whirlpool Refrigerator Cover
12A	W10294414 Whirlpool Refrigerator Cover
13	12991702 Whirlpool Screw
14	GEAR, SPUR
15	W10802341 Whirlpool Refrigerator Shaft
16	LADDER
17	WPW10277361 Whirlpool Refrigerator Collar
18	WPW10530656 Whirlpool Refrigerator Utility Pan
19	W11690685 Whirlpool Ladder
20	67006692 Whirlpool Refrigerator Screw
21	W10423560 Whirlpool Refrigerator Screw
22	W10530296 Whirlpool Refrigerator Guide
23	DIVIDER, LARGE PANTRY
24	W10782690 Whirlpool Refrigerator Floor
25	W11123941 Whirlpool Refrigerator Switch
26	W11170612 Whirlpool Refrigerator Wire Harness
27	W10788795 Whirlpool Refrigerator Roller
28	W11168403 Whirlpool Refrigerator Thermistor
29	W10518378 Whirlpool Refrigerator Cover
30	WPW10503833-includeCORE Whirlpool WPW10503833 Refrigerator Electronic Control Board + Core
31	W11038526 Whirlpool Shelf Glass
32	12702901 Whirlpool Refrigerator Pad
33	W10858273 Whirlpool Refrigerator Bin
34	W10826105 Whirlpool Refrigerator Pro Service
35	W11483116 Whirlpool Refrigerator Module
36	W10518036 Whirlpool Refrigerator Cover
37	W11045125 Whirlpool Door Handle
38	W11449276 Whirlpool Handle Support
