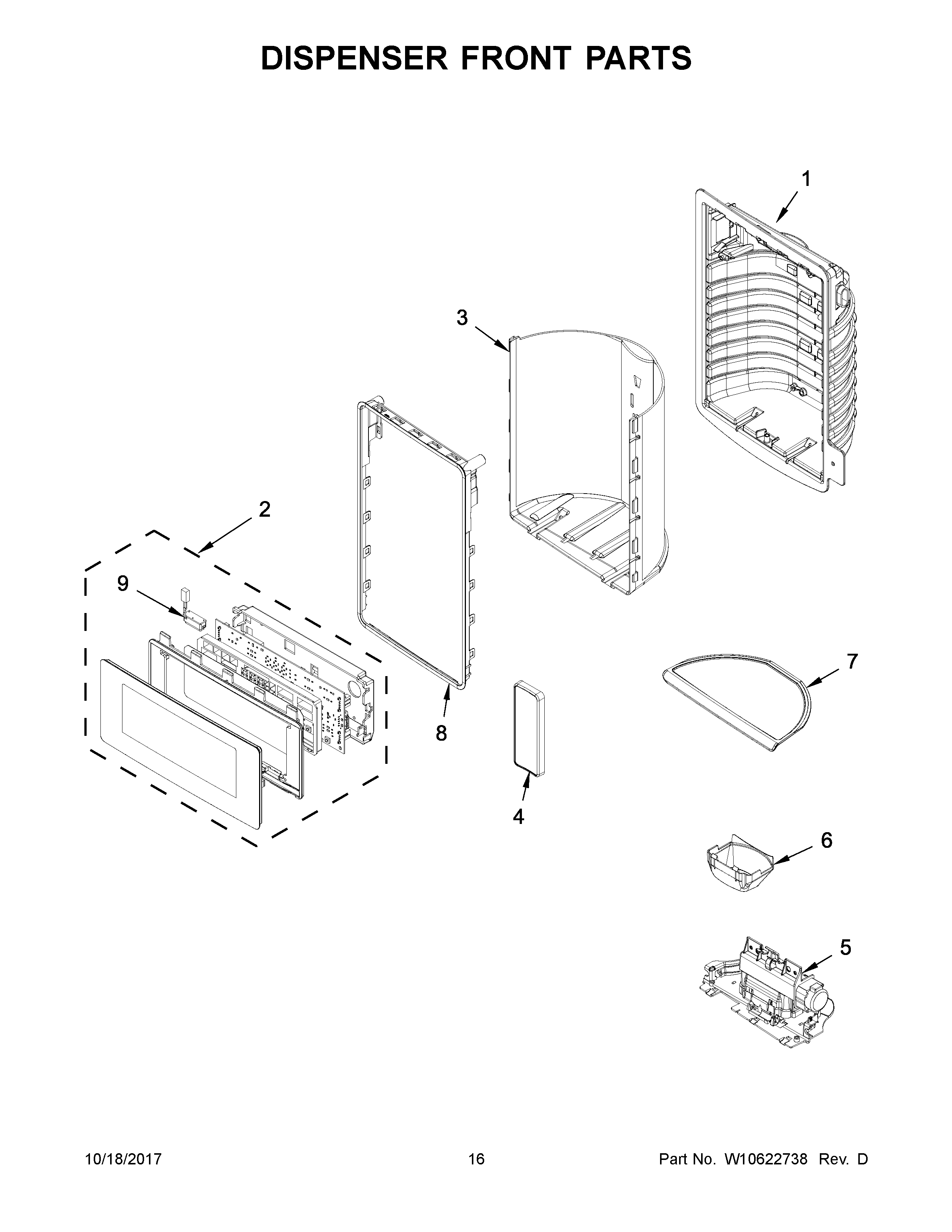

WRX988SIBB00 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2A	W10789392 Whirlpool Electronic Control Board + Core
2	W10789393-includeCORE Whirlpool W10789393 Refrigerator Electronic Control Board + Core
3B	W10606648 Whirlpool Refrigerator Shield
3A	W10606657 Whirlpool Refrigerator Shield
3	WALL, DISPENSER FALSE (WHITE)
4	W11028219 Whirlpool Refrigerator Pad
4B	W10853387 Whirlpool Refrigerator Pad
4A	WPW10370592 Whirlpool Refrigerator Pad
5	WPW10577864 Whirlpool Refrigerator Ice Door
6	WPW10435760 Whirlpool Refrigerator Ice Guide
7B	WPW10606639 Whirlpool Refrigerator Drip Tray
7A	TRAY, DRIP (BLACK)
7	W10606644 Whirlpool Refrigerator Drip Tray
8B	WPW10402180 Whirlpool Refrigerator Trim
8A	W10462439 Whirlpool Refrigerator Trim
8	W10462438 Whirlpool Refrigerator Ring Connector
9	W11290115 Whirlpool Refrigerator Light
