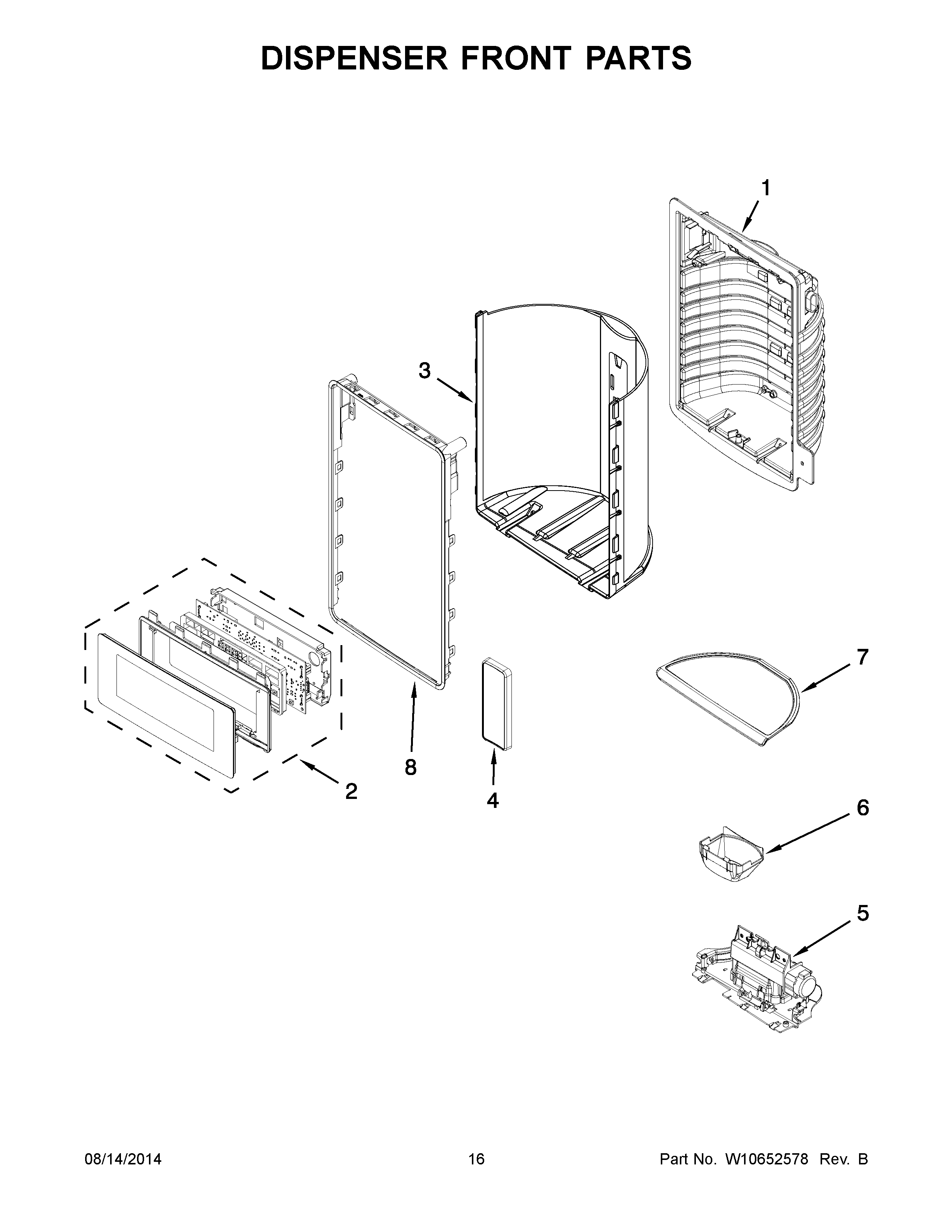

WRX988SIBB01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW10789392 Whirlpool Electronic Control Board + Core
2ASSEMBLY, USER INTERFACE (SILVER)
3W10606653 Whirlpool Refrigerator Shield
3BW10606648 Whirlpool Refrigerator Shield
3AW10606657 Whirlpool Refrigerator Shield
4WPW10420671 Whirlpool Refrigerator Pad
4AWPW10370592 Whirlpool Refrigerator Pad
4BW10853387 Whirlpool Refrigerator Pad
5WPW10577864 Whirlpool Refrigerator Ice Door
6WPW10435760 Whirlpool Refrigerator Ice Guide
7BWPW10606639 Whirlpool Refrigerator Drip Tray
7W10606641 Whirlpool Refrigerator Drip Tray
7ATRAY, DRIP (BLACK)
8W10462439 Whirlpool Refrigerator Trim
8AWPW10402180 Whirlpool Refrigerator Trim
