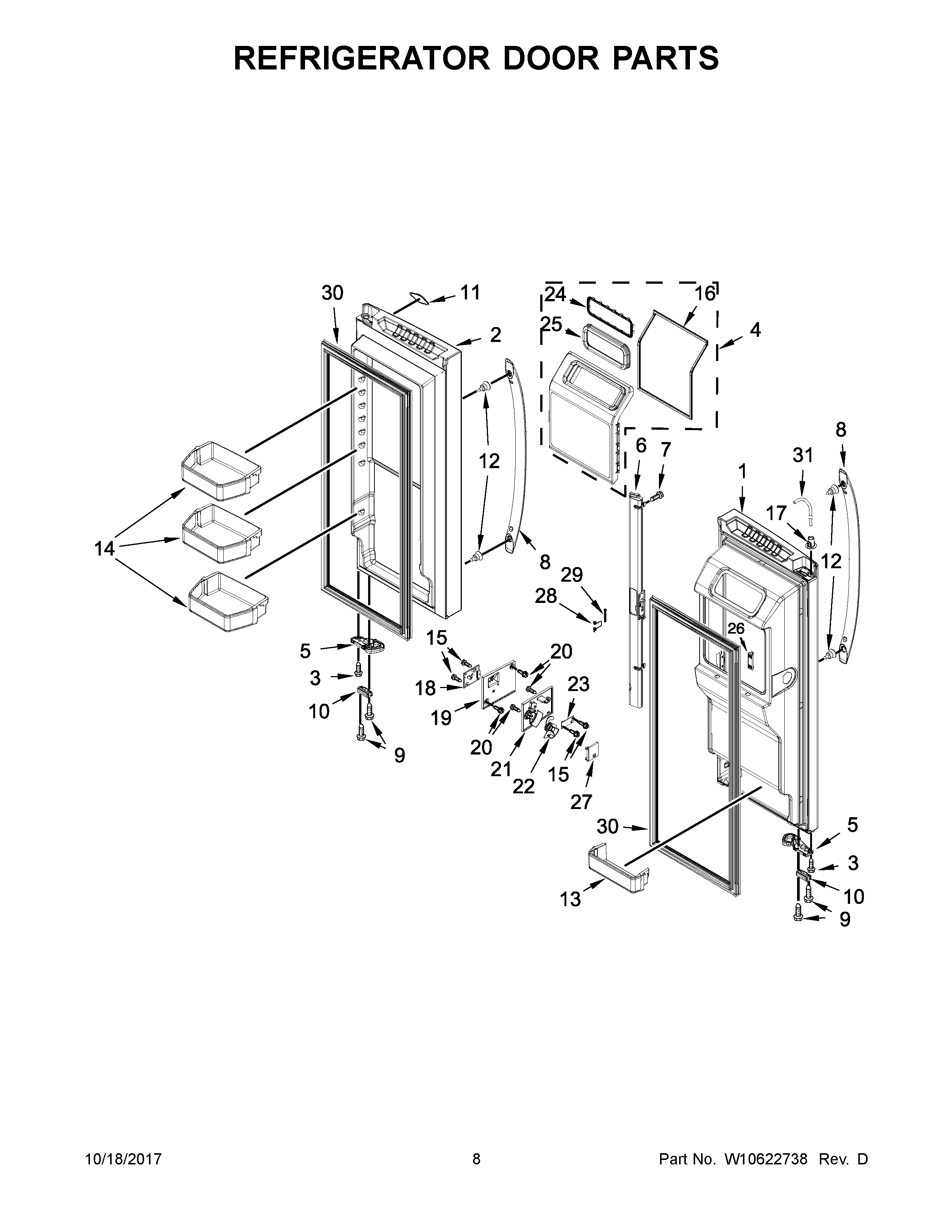

WRX988SIBE00 05 – REFRIGERATOR DOOR PARTS

WRX988SIBE00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX988SIBE00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10545987 Whirlpool Refrigerator DOR-FIP WH
1A	LW10545986 Whirlpool Refrigerator Black Foam In Place Door
1B	LW10503829 Whirlpool Refrigerator DOR-FIP SS
2	LW10545980 Whirlpool Refrigerator Door FIP White
2A	LW10545979 Whirlpool Refrigerator Black Foam In Place Doorack
2B	LW10550669 Whirlpool Refrigerator Dorr FIP Stainless Steel
4	WPW10549589 Whirlpool Refrigerator Ice Door
5	W10904595 Whirlpool Refrigerator Closer
5A	W11212164 Whirlpool Refrigerator Door Closer
6A	W11690637 Whirlpool Refrigerator Mullion Rail
6B	W11025614 Whirlpool Door Support
6	MULLION, DOOR (WHITE)
7	W11311945 Whirlpool Refrigerator Screw
8B	W11459378 Whirlpool Refrigerator Handle
8	W10830136 Whirlpool Refrigerator Handle
8A	W10830130 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10A	W10407187 Whirlpool Refrigerator Door Bumper
10	BUMPER, DOOR (WHITE)
10B	W11573367 Whirlpool Refrigerator Door Bumper
11	WPW10391355 Whirlpool Refrigerator Nameplate
11A	WPW10393265 Whirlpool Refrigerator Nameplate
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W10846358 Whirlpool Refrigerator Door Bin
14	WPW10674770 Whirlpool Refrigerator Cantilever Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W10562834 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	WP3400065 Whirlpool Refrigerator Screw
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29	WP2198634 Whirlpool Door Pin
30A	W11544658 Whirlpool Gasket Assembly
30B	W10846057 Whirlpool Door Gasket
30	W10638484 Whirlpool Refrigerator FIP Gasket
31	WPW10499015 Whirlpool Refrigerator Water Tube
