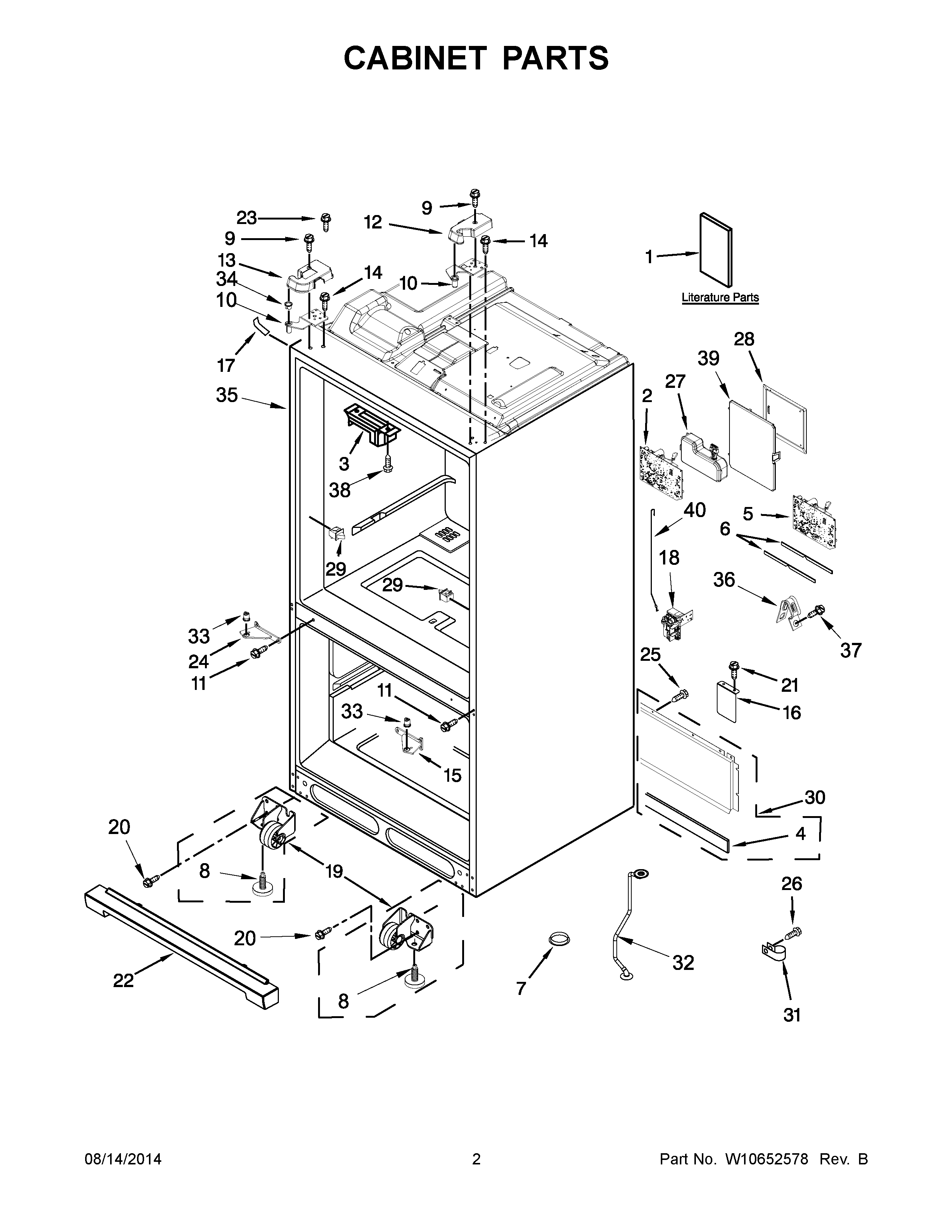

WRX988SIBH01 02 – CABINET PARTS

WRX988SIBH01 02 – CABINET PARTS

Written by

in

WRX988SIBH01 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1BENERGY GUIDE
1AOWNERS MANUAL
2WPW10453401 Whirlpool Refrigerator Electronic Control Board
3WPW10344432 Whirlpool Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5WPW10589837-includeCORE Whirlpool WPW10589837 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10W11592405 Whirlpool Door Hinge
10AW11592404 Whirlpool Refrigerator Door Hinge
11W10403208 Whirlpool Screw
11AW10403211 Whirlpool Refrigerator Screw
12ACOVER, TOP HINGE RIGHT HAND (BLACK)
12W10248562 Whirlpool Refrigerator Cover
13W10471615 Whirlpool Refrigerator Cover
13AW10471617 Whirlpool Refrigerator Cover
14WPW10308751 Whirlpool Screw
15W10248433 Whirlpool Refrigerator Door Hinge
15AW10407275 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17AWP12587703AP Whirlpool Refrigerator Filler
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WP33001882 Whirlpool Screw
22WPW10637668 Whirlpool Refrigerator Front Grille
22AWPW10637669 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24AW10407279 Whirlpool Refrigerator Door Hinge
24W10248434 Whirlpool Refrigerator Door Hinge
2667006425 Whirlpool Refrigerator Screw
27WPW10306786 Whirlpool Refrigerator Inverter Box
28WPW10485658 Whirlpool Cover Assembly
29W11396033 Whirlpool Refrigerator Rocker Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32TUBE, DRAIN
33COUPLER, DOOR
34W10212137 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37SCREW
38W10854958 Whirlpool Refrigerator Screw
39W10277839 Whirlpool Refrigerator Cover
40W11209890 Whirlpool Refrigerator Water Tube
