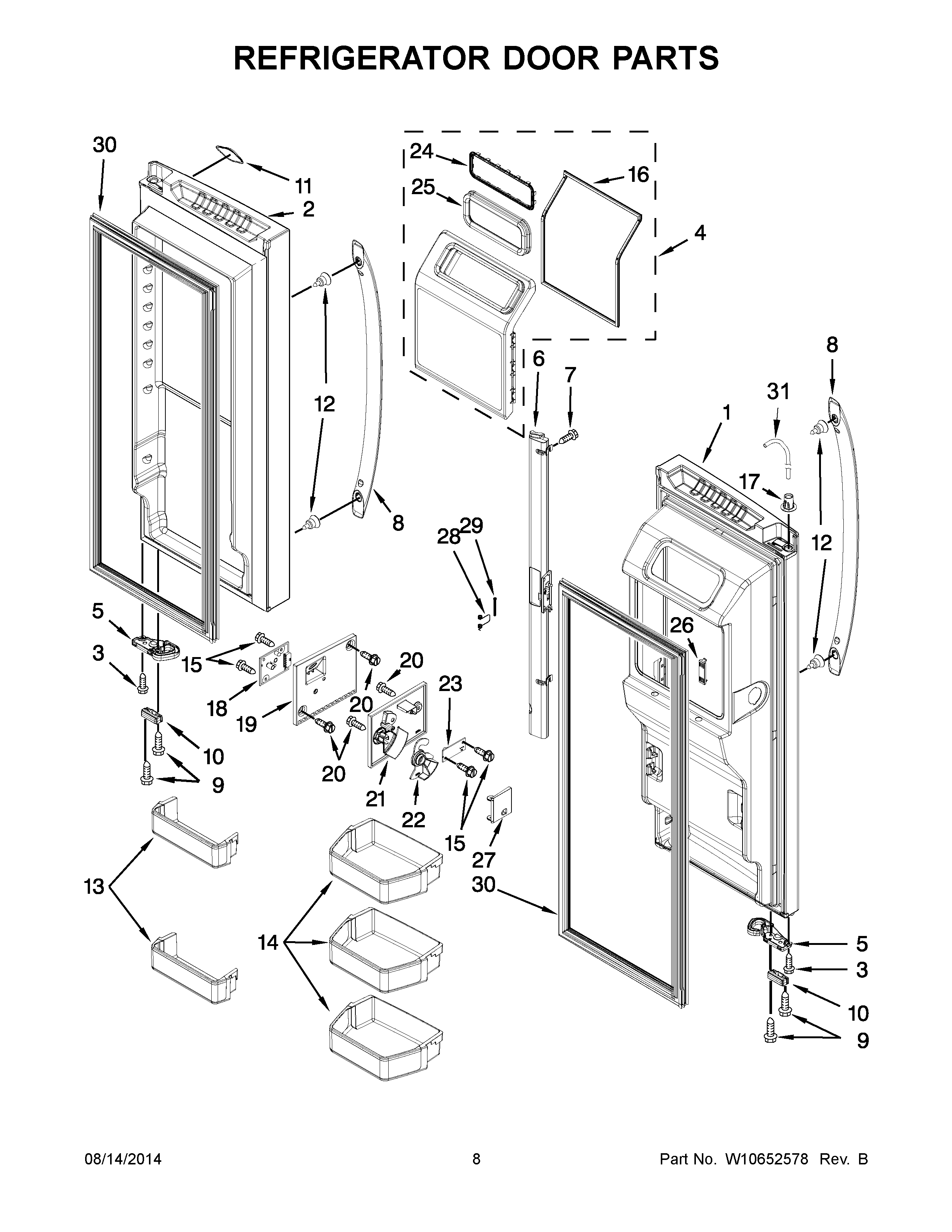

WRX988SIBH01 05 – REFRIGERATOR DOOR PARTS

WRX988SIBH01 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX988SIBH01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10624501 Whirlpool Refrigerator DOR-FIP White
1	LW10545986 Whirlpool Refrigerator Black Foam In Place Door
2	LW10624502 Whirlpool Refrigerator Door Deli-Food Item Pan White
2	LW10545979 Whirlpool Refrigerator Black Foam In Place Doorack
3	WPW10464016 Whirlpool Refrigerator Screw
4	WPW10549589 Whirlpool Refrigerator Ice Door
5A	W10681408 Whirlpool Refrigerator Closer
5	W10857643 Whirlpool Refrigerator Door Closer
6	MULLION, DOOR (WHITE)
6A	W11690637 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W10830130 Whirlpool Refrigerator Handle
8A	W11459378 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10A	W10407187 Whirlpool Refrigerator Door Bumper
10	BUMPER, DOOR (WHITE)
11A	WPW10393265 Whirlpool Refrigerator Nameplate
11	WPW10391355 Whirlpool Refrigerator Nameplate
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W10846358 Whirlpool Refrigerator Door Bin
14	WPW10674770 Whirlpool Refrigerator Cantilever Bin
16	W11624997 Whirlpool Refrigerator Gasket
17	W10562834 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	2006254 Whirlpool Refrigerator Screw
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29	WP2198634 Whirlpool Door Pin
30A	W11544658 Whirlpool Gasket Assembly
30	W10638484 Whirlpool Refrigerator FIP Gasket
31	WPW10499015 Whirlpool Refrigerator Water Tube
