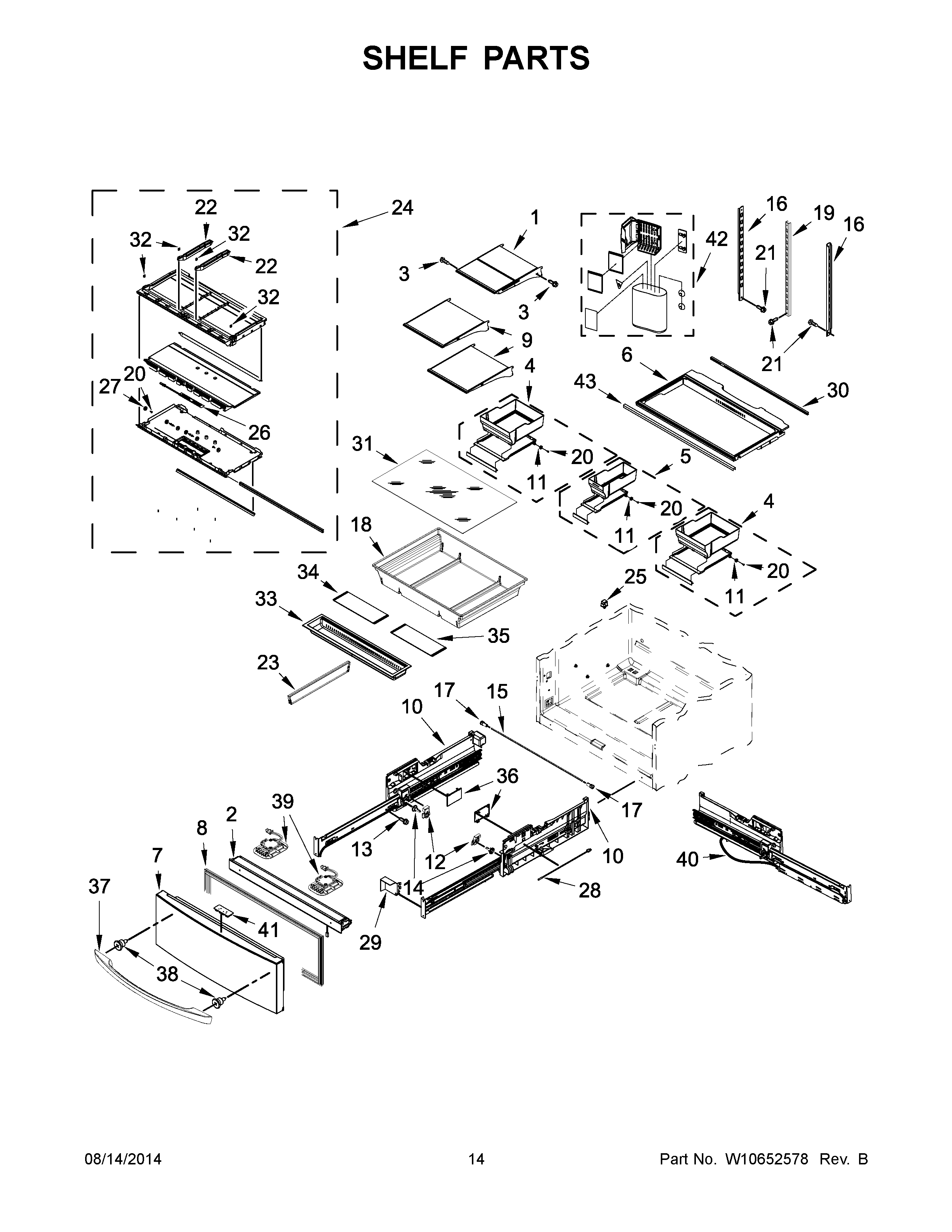

WRX988SIBH01 08 – SHELF PARTS

WRX988SIBH01 08 – SHELF PARTS

Written by

in

WRX988SIBH01 08 – SHELF PARTS

Products

PositionProduct
1WPW10709175 Whirlpool Refrigerator Glass Shelf
2W10698206 Whirlpool Refrigerator Mullion Rail
3W10421495 Whirlpool Refrigerator Screw
4W10839369 Whirlpool Refrigerator Crisper Pan
5W10509275 Whirlpool Refrigerator Crisper Pan
6W11127833 Whirlpool Refrigerator Crisper Drawer Frame
7LW10624505 Whirlpool Refrigerator Door Frame
7ALW10546008 Whirlpool Refrigerator Door FIP
8AW10622445 Whirlpool Refrigerator FIP Gasket
8W11627531 Whirlpool Refrigerator FIP Gasket
9WPW10709163 Whirlpool Refrigerator Glass Shelf
10AW11093718 Whirlpool Refrigerator Adapter
10W11215629 Whirlpool Refrigerator Adapter
12AW10294414 Whirlpool Refrigerator Cover
12W10284709 Whirlpool Refrigerator Cover
1312991702 Whirlpool Screw
14GEAR, SPUR
15W10298176 Whirlpool Refrigerator Shaft
16LADDER
17WPW10277361 Whirlpool Refrigerator Collar
18WPW10530656 Whirlpool Refrigerator Utility Pan
19W11690685 Whirlpool Ladder
2067006692 Whirlpool Refrigerator Screw
21W10423560 Whirlpool Refrigerator Screw
22W10577906 Whirlpool Guide
23W10839397 Whirlpool Divider
24W10548667 Whirlpool Floor
25W11384469 Whirlpool Door Switch
26W10537691 Whirlpool Refrigerator Heater
27W10788795 Whirlpool Refrigerator Roller
28W11168403 Whirlpool Refrigerator Thermistor
29W10518378 Whirlpool Refrigerator Cover
30W10493547 Whirlpool Refrigerator Support
31W11038526 Whirlpool Shelf Glass
3212702901 Whirlpool Refrigerator Pad
35W10858273 Whirlpool Refrigerator Bin
36W10518036 Whirlpool Refrigerator Cover
37W10719668 Whirlpool Refrigerator Handle
37AW10827046 Whirlpool Door Handle
38WPW10661886 Whirlpool Refrigerator Door Handle Screw
39MODULE
40W11170612 Whirlpool Refrigerator Wire Harness
41WPW10503833-includeCORE Whirlpool WPW10503833 Refrigerator Electronic Control Board + Core
42ASSEMBLY, PRODUCE PRESERVER
43W10530297 Whirlpool Drawer Support
