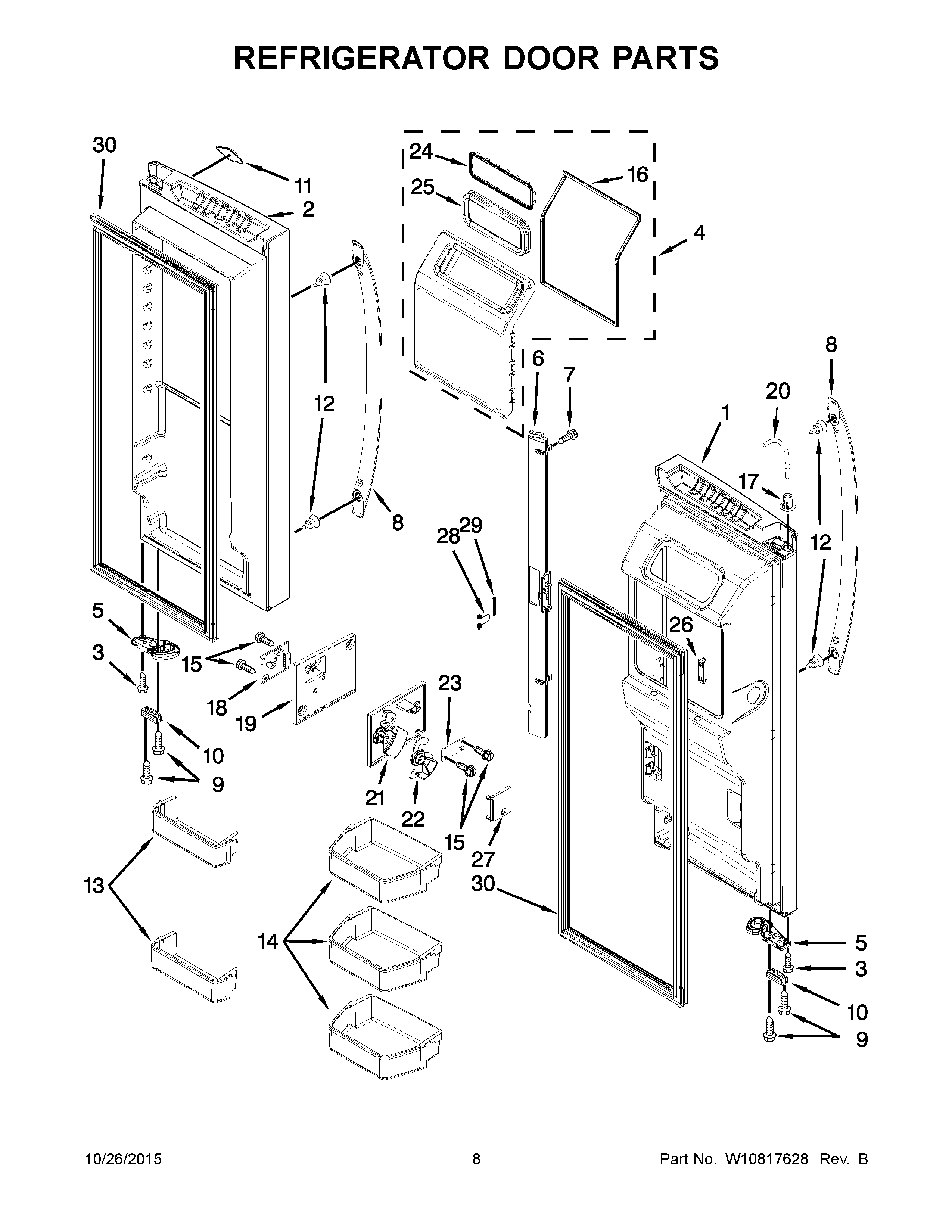

WRX988SIBH02 05 – REFRIGERATOR DOOR PARTS

WRX988SIBH02 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX988SIBH02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10624501 Whirlpool Refrigerator DOR-FIP White
1BLW10503829 Whirlpool Refrigerator DOR-FIP SS
1ALW10545986 Whirlpool Refrigerator Black Foam In Place Door
2LW10624502 Whirlpool Refrigerator Door Deli-Food Item Pan White
2ALW10545979 Whirlpool Refrigerator Black Foam In Place Doorack
2BLW10550669 Whirlpool Refrigerator Dorr FIP Stainless Steel
3WPW10464016 Whirlpool Refrigerator Screw
4WPW10549589 Whirlpool Refrigerator Ice Door
5AW11212164 Whirlpool Refrigerator Door Closer
5W10904595 Whirlpool Refrigerator Closer
6AW11690637 Whirlpool Refrigerator Mullion Rail
6BW11025614 Whirlpool Door Support
6MULLION, DOOR (WHITE)
7W11311945 Whirlpool Refrigerator Screw
8W11459378 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10AW10407187 Whirlpool Refrigerator Door Bumper
10BUMPER, DOOR (WHITE)
10BW11573367 Whirlpool Refrigerator Door Bumper
11WPW10391355 Whirlpool Refrigerator Nameplate
11AWPW10393265 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13W10846358 Whirlpool Refrigerator Door Bin
14WPW10674770 Whirlpool Refrigerator Cantilever Bin
152006254 Whirlpool Refrigerator Screw
16W11624997 Whirlpool Refrigerator Gasket
17W10562834 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19COVER, RECEIVER
20WPW10499015 Whirlpool Refrigerator Water Tube
21W10258502 Whirlpool Refrigerator Cover
22W10258540 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24WPW10400825 Whirlpool Refrigerator Retainer
25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26VENT, THERMISTOR
27FLIPPER
28WP2198635 Whirlpool Refrigerator Spring
29WP2198634 Whirlpool Door Pin
30W10638484 Whirlpool Refrigerator FIP Gasket
30BW10846057 Whirlpool Door Gasket
30AW11544658 Whirlpool Gasket Assembly
