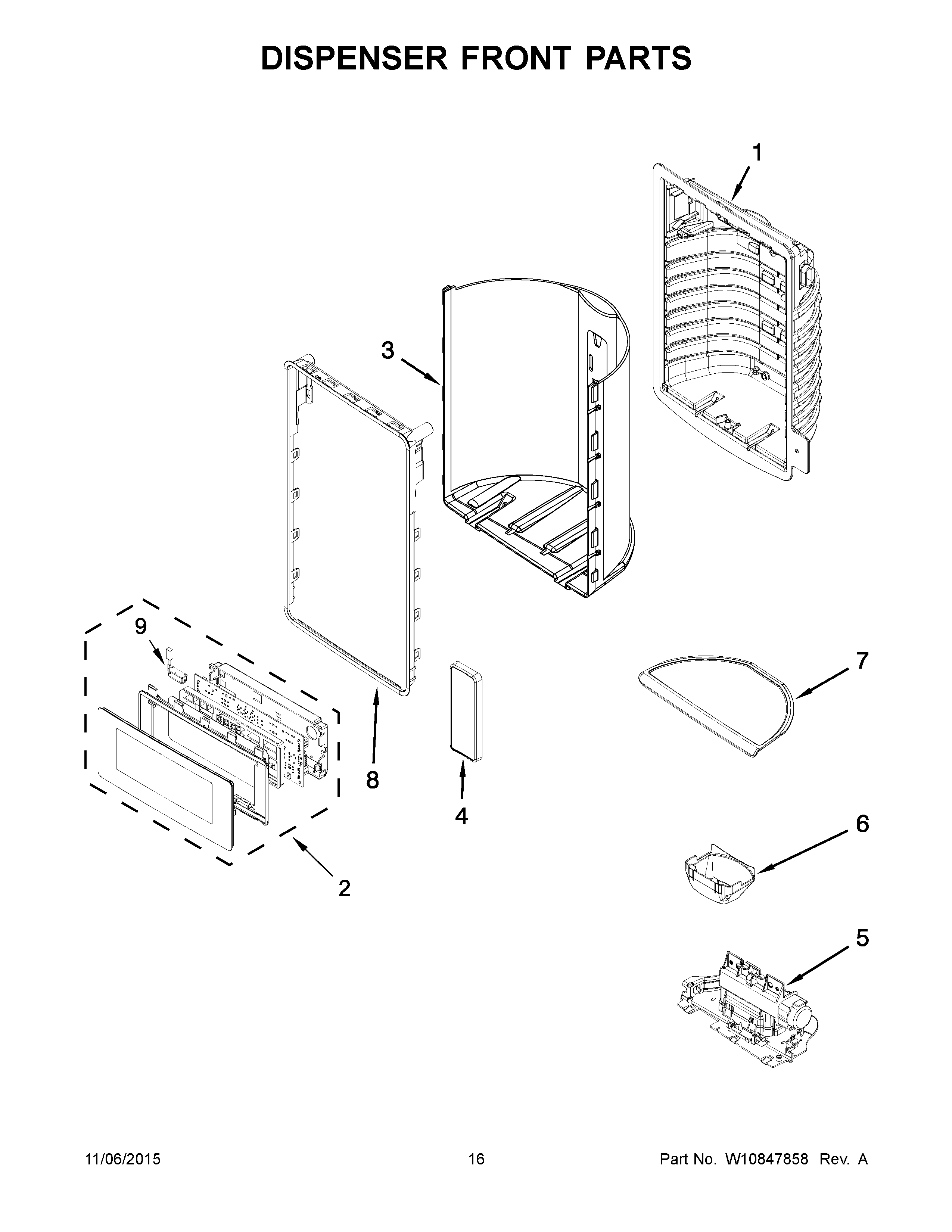

WRX988SIBH03 09 – DISPENSER FRONT PARTS

WRX988SIBH03 09 – DISPENSER FRONT PARTS

Written by

in

WRX988SIBH03 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10848301-includeCORE Whirlpool W10848301 Refrigerator Electronic Control Board + Core
3W10606653 Whirlpool Refrigerator Shield
3AW10606648 Whirlpool Refrigerator Shield
4WPW10420671 Whirlpool Refrigerator Pad
4AW10853387 Whirlpool Refrigerator Pad
5WPW10577864 Whirlpool Refrigerator Ice Door
6WPW10435760 Whirlpool Refrigerator Ice Guide
7W10606641 Whirlpool Refrigerator Drip Tray
7AWPW10606639 Whirlpool Refrigerator Drip Tray
8WPW10402180 Whirlpool Refrigerator Trim
9W11290115 Whirlpool Refrigerator Light
