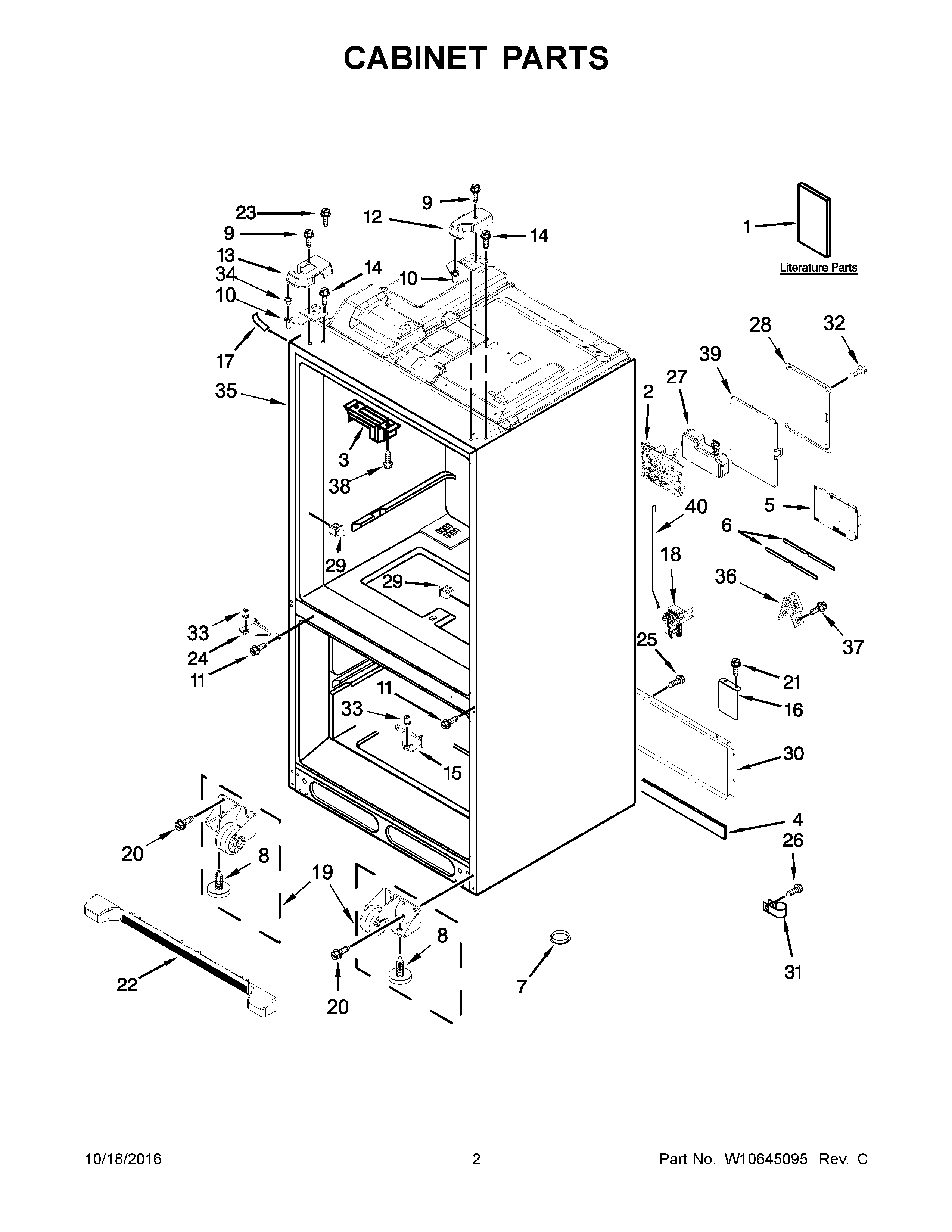

WRX988SIBM01 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET (ENGLISH)
1B	OWNERS MANUAL
1A	TECH SHEET (FRENCH)
1C	ENERGY GUIDE
2	WPW10453401 Whirlpool Refrigerator Electronic Control Board
3	WPW10344432 Whirlpool Pivot Block
4	W10505487 Whirlpool Refrigerator Gasket
5	W10807590-includeCORE Whirlpool W10807590 Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10A	W11592405 Whirlpool Door Hinge
10	W11592404 Whirlpool Refrigerator Door Hinge
11	W10673841 Whirlpool Refrigerator Screw
11A	W11573362 Whirlpool Screw Assembly
12A	WPW10407158 Whirlpool Refrigerator Cover Assembly
12	W10248562 Whirlpool Refrigerator Cover
13A	WPW10471618 Whirlpool Refrigerator Cover
13	W10471615 Whirlpool Refrigerator Cover
14	W11126052 Whirlpool Screw Assembly
15A	W11240748 Whirlpool Refrigerator Door Hinge
15	W10248433 Whirlpool Refrigerator Door Hinge
16	W10336736 Whirlpool Refrigerator Cover
17	12587703W Whirlpool Refrigerator Cover
17A	WP12587703AP Whirlpool Refrigerator Filler
18	W10865826 Whirlpool Refrigerator Water Inlet Valve
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	WP33001882 Whirlpool Screw
22	WPW10637668 Whirlpool Refrigerator Front Grille
22A	WPW10637671 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24	W10248434 Whirlpool Refrigerator Door Hinge
24A	W10878115 Whirlpool Refrigerator Door Hinge
26	67006425 Whirlpool Refrigerator Screw
27	WPW10306786 Whirlpool Refrigerator Inverter Box
28	W10754591 Whirlpool Refrigerator Cover
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W11686675 Whirlpool Screw
33	COUPLER, DOOR
34	W10212137 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
36	549193 Whirlpool Refrigerator Power Clamp
37	SCREW
38	W10854958 Whirlpool Refrigerator Screw
39	W10277839 Whirlpool Refrigerator Cover
40	W11209890 Whirlpool Refrigerator Water Tube
