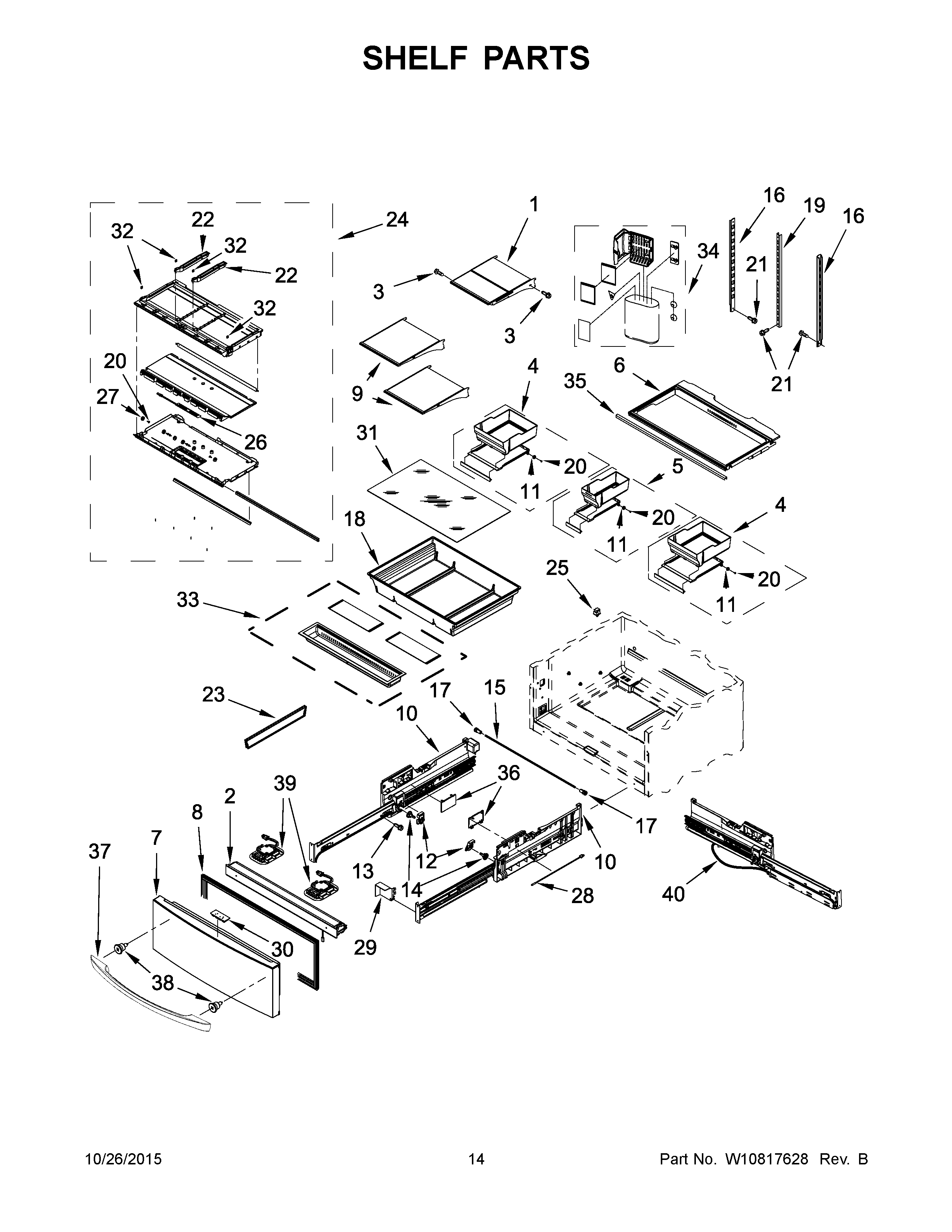

WRX988SIBM02 08 – SHELF PARTS

WRX988SIBM02 08 – SHELF PARTS

Written by

in

WRX988SIBM02 08 – SHELF PARTS

Products

Position	Product
1	WPW10709175 Whirlpool Refrigerator Glass Shelf
2	W10610301 Whirlpool Refrigerator Mullion Rail
3	W10421495 Whirlpool Refrigerator Screw
4	W10839369 Whirlpool Refrigerator Crisper Pan
5	W10509275 Whirlpool Refrigerator Crisper Pan
6	W11127833 Whirlpool Refrigerator Crisper Drawer Frame
7	LW10624505 Whirlpool Refrigerator Door Frame
7A	LW10546008 Whirlpool Refrigerator Door FIP
7B	LW10550670 Whirlpool Refrigerator Door FIP
8	W11627531 Whirlpool Refrigerator FIP Gasket
8A	W10622445 Whirlpool Refrigerator FIP Gasket
9	WPW10709163 Whirlpool Refrigerator Glass Shelf
10A	W11093718 Whirlpool Refrigerator Adapter
10	W11215629 Whirlpool Refrigerator Adapter
12A	W10294414 Whirlpool Refrigerator Cover
12	W10284709 Whirlpool Refrigerator Cover
13	12991702 Whirlpool Screw
14	GEAR, SPUR
15	W10802341 Whirlpool Refrigerator Shaft
16	LADDER
17	WPW10277361 Whirlpool Refrigerator Collar
18	WPW10530656 Whirlpool Refrigerator Utility Pan
19	W11690685 Whirlpool Ladder
20	67006692 Whirlpool Refrigerator Screw
21	W10423560 Whirlpool Refrigerator Screw
22	W10530296 Whirlpool Refrigerator Guide
23	W10839397 Whirlpool Divider
24	W10782690 Whirlpool Refrigerator Floor
25	W11384469 Whirlpool Door Switch
26	W10537691 Whirlpool Refrigerator Heater
27	W10788795 Whirlpool Refrigerator Roller
28	W11168403 Whirlpool Refrigerator Thermistor
29	W10518378 Whirlpool Refrigerator Cover
30	WPW10503833-includeCORE Whirlpool WPW10503833 Refrigerator Electronic Control Board + Core
31	W11038526 Whirlpool Shelf Glass
32	12702901 Whirlpool Refrigerator Pad
33	W10858273 Whirlpool Refrigerator Bin
34	ASSEMBLY, PRODUCE PRESERVER
35	W10530297 Whirlpool Drawer Support
36	W10518036 Whirlpool Refrigerator Cover
37	W10827046 Whirlpool Door Handle
38	WPW10661886 Whirlpool Refrigerator Door Handle Screw
39	MODULE
40	W11170612 Whirlpool Refrigerator Wire Harness
