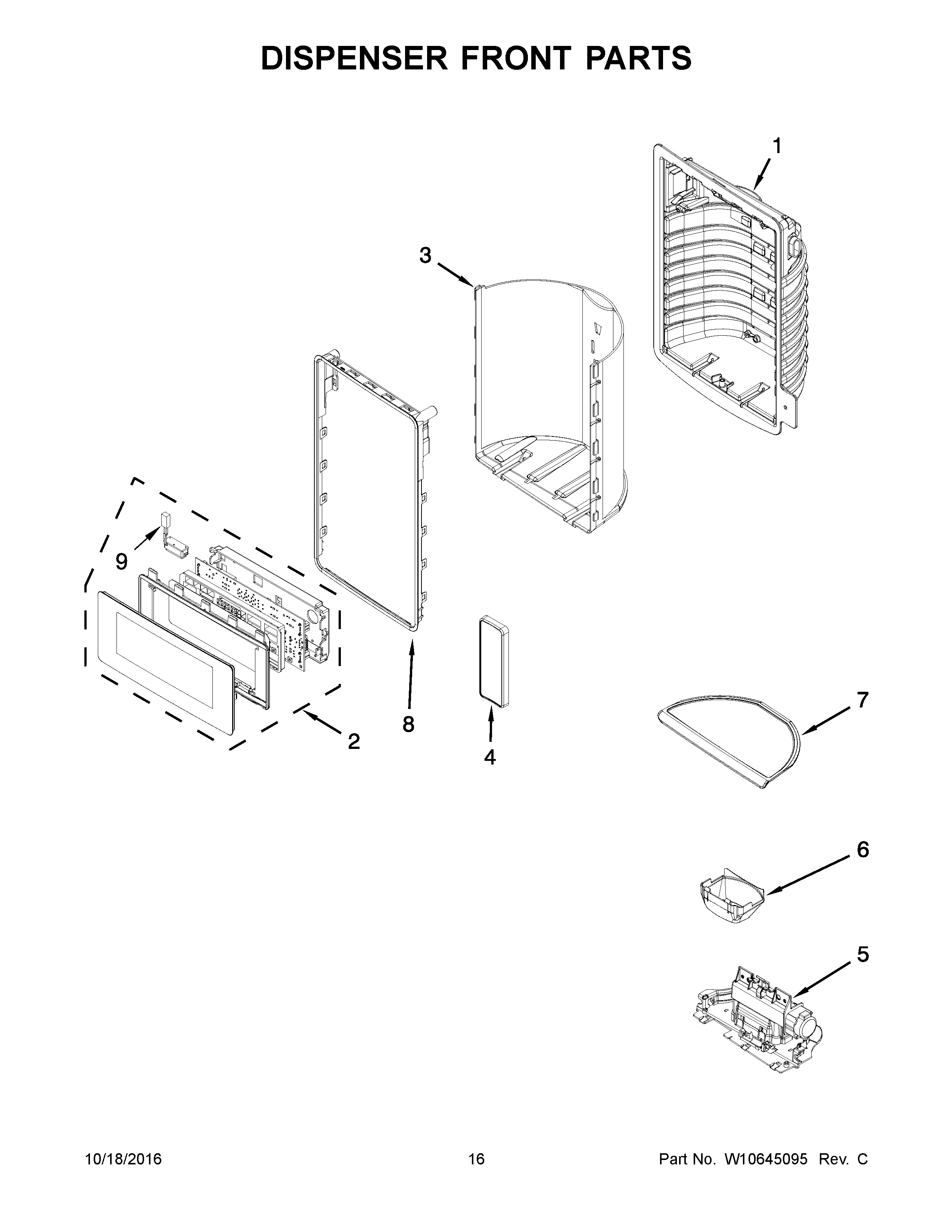

WRX988SIBW01 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10789393-includeCORE Whirlpool W10789393 Refrigerator Electronic Control Board + Core
3A	W10819058 Whirlpool Refrigerator Shield
3	WALL, DISPENSER FALSE (WHITE)
4	W11028219 Whirlpool Refrigerator Pad
4A	W10853387 Whirlpool Refrigerator Pad
5	WPW10577864 Whirlpool Refrigerator Ice Door
6	WPW10435760 Whirlpool Refrigerator Ice Guide
7	W10606644 Whirlpool Refrigerator Drip Tray
7A	W11448765 Whirlpool Drip Tray
8	W10462438 Whirlpool Refrigerator Ring Connector
8A	WPW10402180 Whirlpool Refrigerator Trim
9	W11290115 Whirlpool Refrigerator Light
