WSC100YW0 01 – SECTION

WSC100YW0 01 – SECTION

Written by

in

WSC100YW0 01 – SECTION

Products

PositionProduct
WP2198677 Whirlpool Refrigerator Connector
Repair Parts List
Installation Kit
1/4“ Union Tee
Use & Care Guide- Installation Inst.
Tubing, Plastic (3/8 x 50 FT.)
3/8“ Union Elbow
1/4“ Union Elbow
3/8-1/4 Reducing Union
Tubing, Plastic (1/4 x 50 FT.)
3/8“ Male Connector
3/8“ Union Tee
3/8“ Union Connector

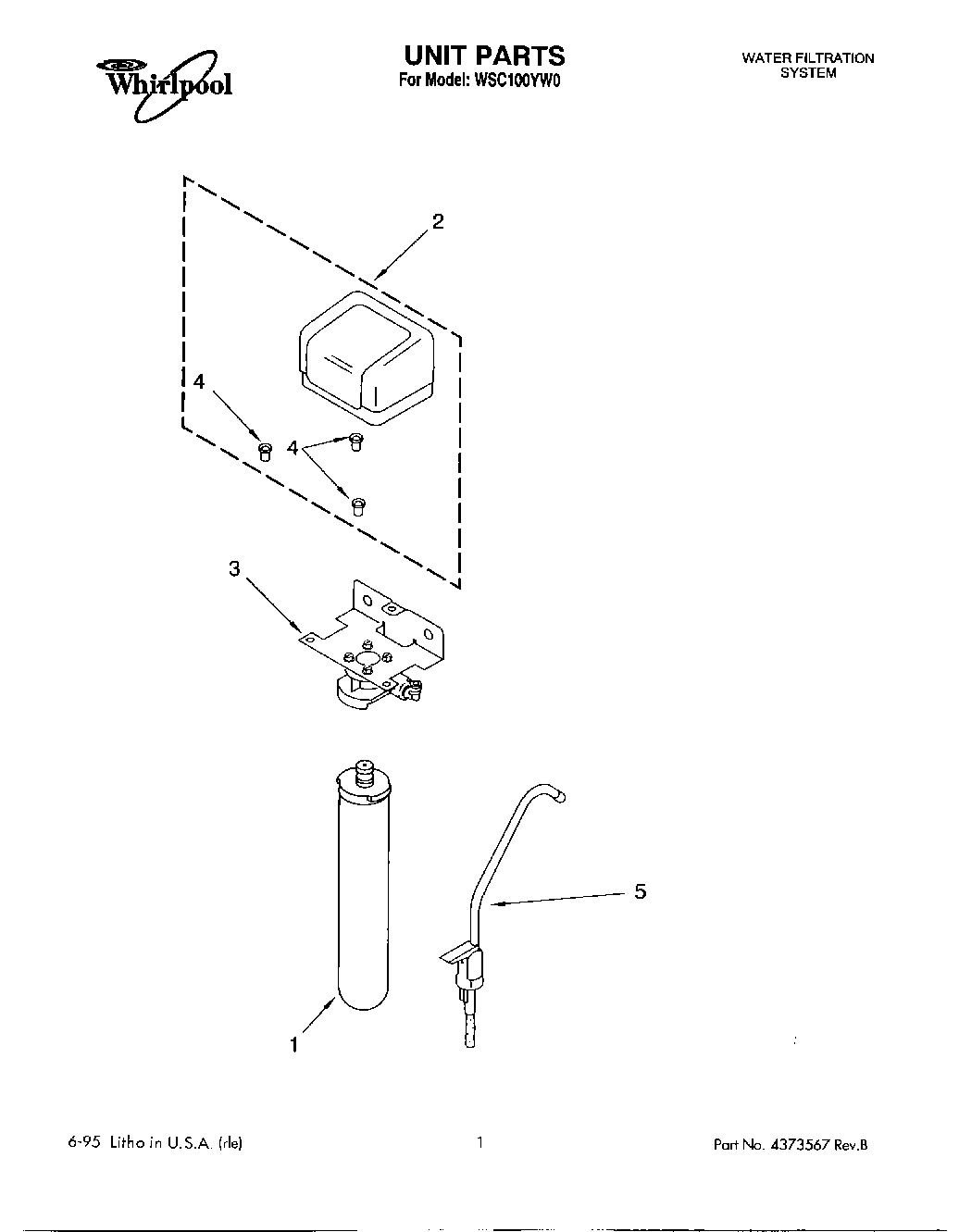

1Cartridge, Sediment/Carbon
2Cover, Shroud (Includes No.5)
3Complete Head Assembly (Not Serviceable)
4Connector (3) Tree Lock- Mini Ball
5Faucet Assembly Touch-Flo (White)
5Faucet Assembly Touch-Flo (Chrome)
5Faucet Assembly Touch-Flo (Almond)
