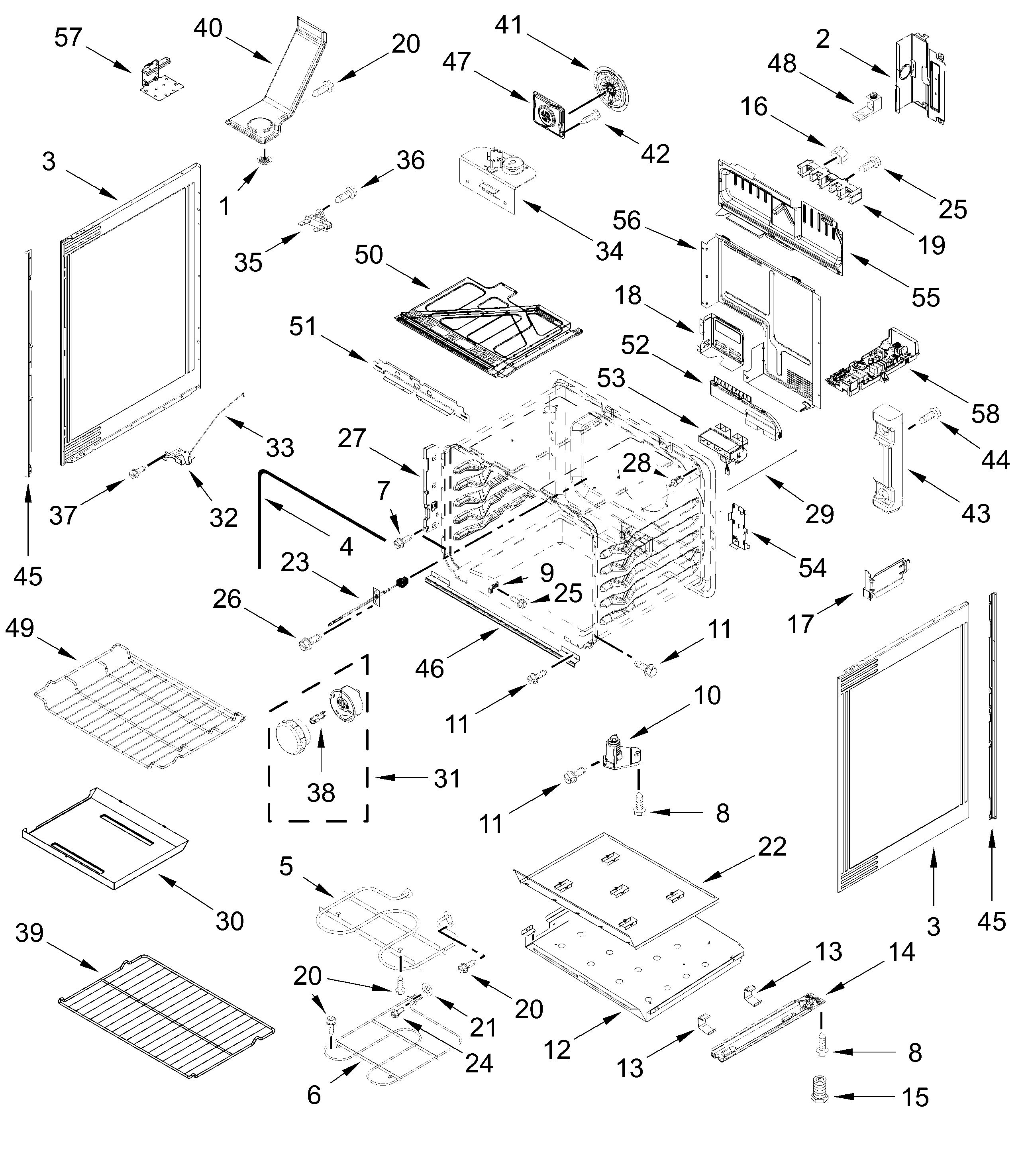

WSES7530RV0 CHASSIS PARTS

WSES7530RV0 CHASSIS PARTS

Written by

in

WSES7530RV0 CHASSIS PARTS

Products

PositionProduct
W10646923 Whirlpool Insulator
W11161831 Whirlpool Insulation
INSULATION, STRAP
3400964 Whirlpool Oven Clip
BARRIER RAIL, RUBBER (FRONT RIGHT)
INSULATION, FLUE
INSULATION, BACK
FOLLOWING PARTS NOT ILLUSTRATED
1SCREEN, VENT
2BRACKET, SERVICE
3W11730303 Whirlpool Side Panel
4W11542153 Whirlpool Door Gasket
5W10856603 Whirlpool Broil Element
6WP9755770 Whirlpool Bake Element
7W10777162 Whirlpool Screw
8SCREW
9W10807823 Whirlpool Drawer Glide
10WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11WPW10067840 Whirlpool Screw
12TRAY, INSULATION
13W10137382 Whirlpool Clip
14WPW10306546 Whirlpool Base Rail
15WPW10058460 Whirlpool Appliance Levelling Leg
16WP3400029 Whirlpool Dishwasher Nut
17W10404688 Whirlpool Bracket Support
18CORNER, COVER
19BLOCK, TERMINAL (WITHOUT GROUND STRAP)
21WP3400968 Whirlpool Nut
22SHIELD, HEAT
23SENSOR
24WP3196174 Whirlpool Screw
25Screw
26WP3196557 Whirlpool Screw
27W10647259 Whirlpool Hinge Receiver
28SWTCH-LITE
299757239 Whirlpool Oven Door Rod
30W10183712 Whirlpool Bake Tray
31W11707255 Whirlpool Light
32FRONT DOOR LATCH ASSEMBLY
33ROD, LATCH
34REAR DOOR LATCH ASSEMBLY
35WP3196548 Whirlpool Thermal Fuse
363196172 Whirlpool Oven Screw
37W11169708 Whirlpool Screw
38BULB-LIGHT
39RACK-OVEN
40Tube, Vent
41FAN, CONVECTION
42W10516115 Whirlpool Screw
43W11217187 Whirlpool Tip Anchor
44W11135756 Whirlpool Screw Torx
45W11510561 Whirlpool Mounting Rail
46W11464547 Whirlpool Support Bracket
47COVER, CONV FAN
48WPW10281322 Whirlpool Connector
50VENTILATION ASSEMBLY, DUCT AND FRAME
51Console, Front
52REAR, DUCT ASSEMBLY
53DUAL, BLOWER
54BRACKET, ACU
55CONVECTION, REAR COVER
56Side, Cover
57BRACKET, COOKTOP CONSOLE
