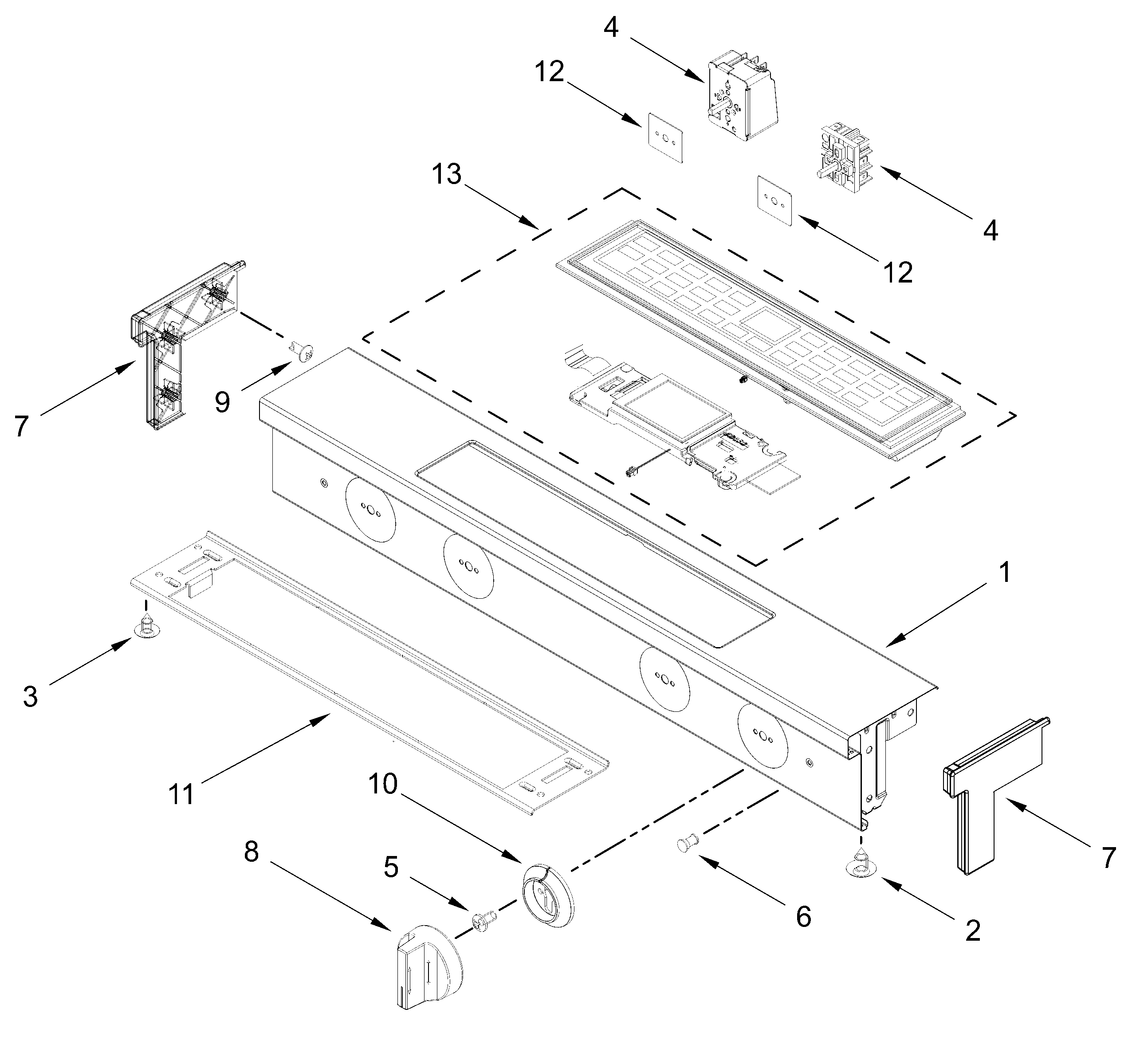

WSES7530RV0 CONTROL PANEL PARTS

WSES7530RV0 CONTROL PANEL PARTS

Written by

in

WSES7530RV0 CONTROL PANEL PARTS

Products

PositionProduct
KNOB (DUAL, (BLACK STAINLESS))
ENDCAP (BLACK, (RIGHT))
W10911303 Whirlpool Infinite Switch
(Right Front)
W11129442 Whirlpool Surface Infinite Element Switch
(Left Front)
(Left Rear, Right Rear)
Knob (Black Stainless, Triple)
1Console, Upper (Black)
2SCREW
3WP355214 Whirlpool Screw
4SWITCH-INF
57101P676-60 Whirlpool Screw
6WP3196068 Whirlpool Light Lens
7ENDCAP (BLACK, (LEFT))
8KNOB (SINGLE, (BLACK STAINLESS))
9W11245710 Whirlpool Refrigerator Screw
10BEZEL (BLACK STAINLESS)
11MOUNTING, BRACKET
12GASKET, SWITCH
13SWTCH-MEMB
