WSES7530RV0 COOKTOP PARTS

Products

Position	Product
	HARNESS, DC
	Owner's Manual
	Quick Start Guide
	Tech Sheet
	(Right Front)
	(Left Front)
	(Left Rear, Right Rear)
	(Center Rear)
	Harness, Main
	Harness, Cooktop
	Harness, Console
	CORNER, BRACE (LEFT)
	HARNESS, HIDDEN BAKE

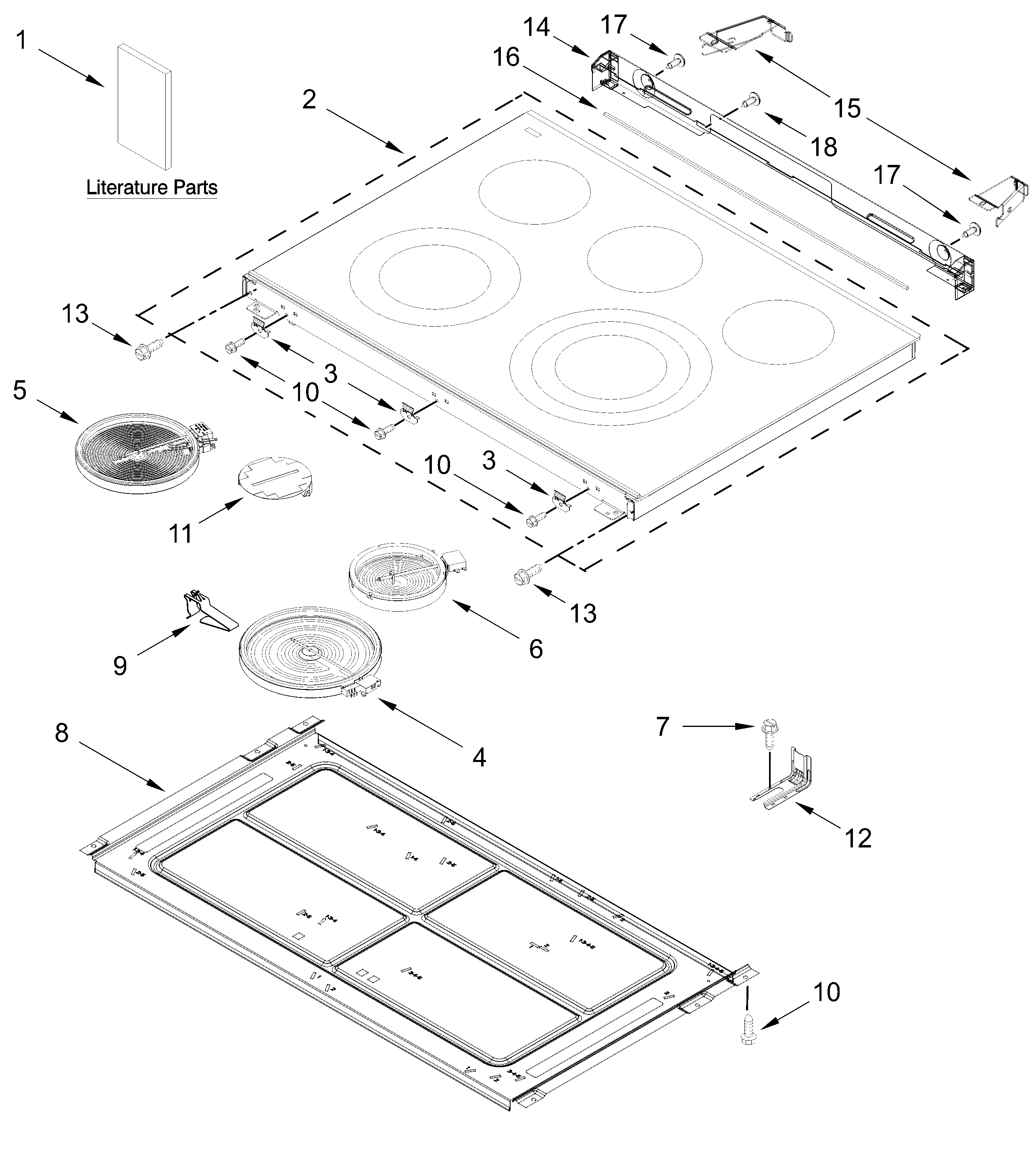

	FOLLOWING PARTS NOT ILLUSTRATED
1	Literature Parts
2	Cooktop (Black, Includes Cooktop Bracket)
3	BRACKET, COOKTOP
4	Element (3000W, Triple)
5	Element (Dual, 3000W)
6	ELEMENT (SINGLE, 1200W) (RIGHT REAR)
7	SCREW, ANTI-TIP KIT
8	PAN, RADIANT ELEMENT
9	W11663556 Whirlpool Spring Assembly
10	WP3196557 Whirlpool Screw
11	ELEMENT, WARM ZONE (CENTER)
12	W11502257 Whirlpool Anchor Tip
13	Screw
14	Bracket, Front Cooktop
15	CORNER, BRACE (RIGHT)
16	Gasket Cooktop, Console
17	SCREW
18	7101P676-60 Whirlpool Screw
