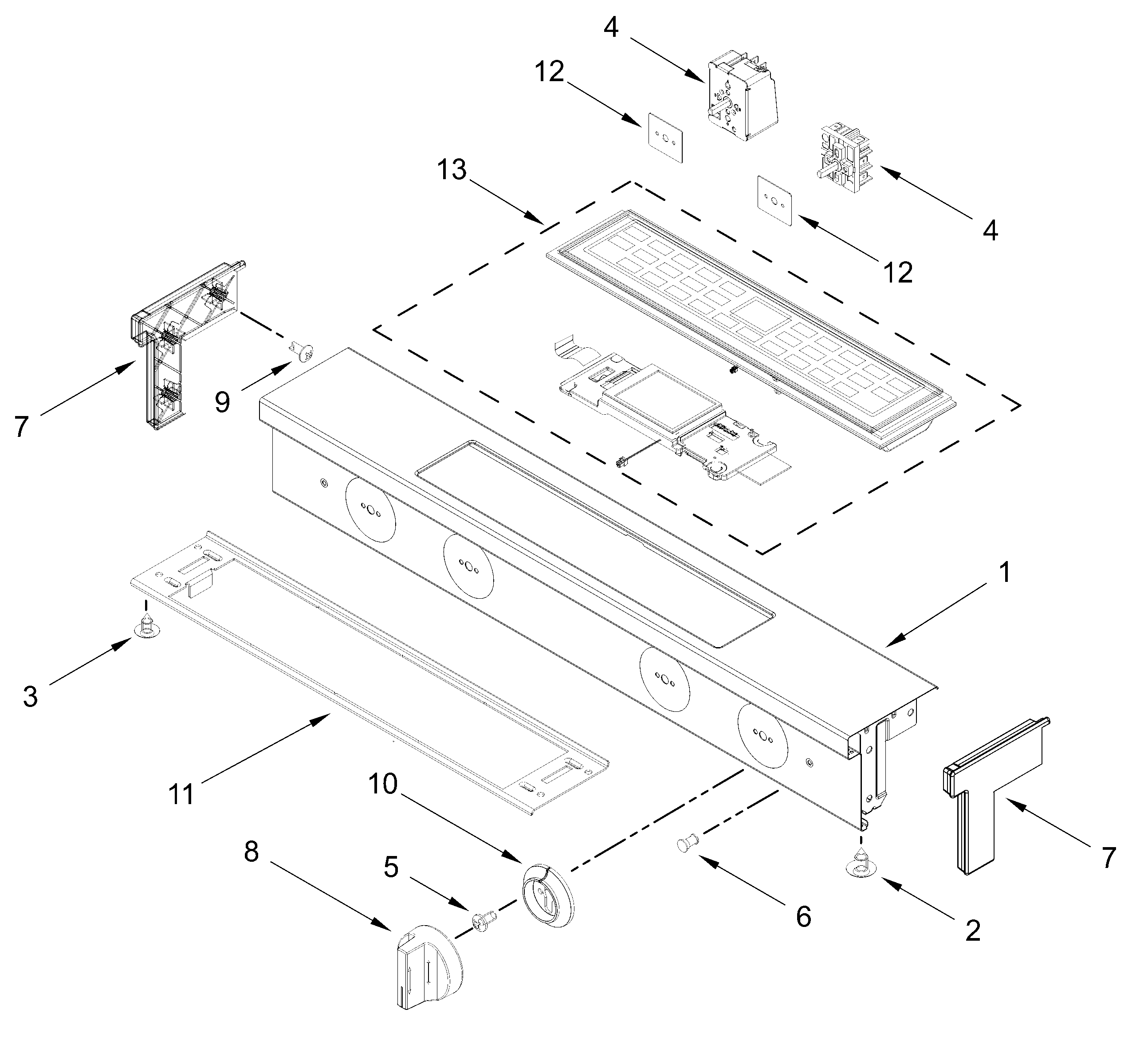

WSES7530RZ0 CONTROL PANEL PARTS

Products

PositionProduct
Knob (Stainless, Triple)
(Left Rear, Right Rear)
(Left Front)
(Right Front)
ENDPOST, CONSOLE (BLACK (RIGHT))
KNOB (DUAL, (STAINLESS))
W10911303 Whirlpool Infinite Switch
W11129442 Whirlpool Surface Infinite Element Switch
1Console (Black)
2SCREW
3WP355214 Whirlpool Screw
4SWITCH-INF
57101P676-60 Whirlpool Screw
6WP3196068 Whirlpool Light Lens
7ENDPOST, CONSOLE (BLACK (LEFT))
8KNOB (SINGLE, (STAINLESS))
9W11245710 Whirlpool Refrigerator Screw
10BEZEL (STAINLESS)
11MOUNTING, BRACKET
12GASKET, SWITCH
13SWTCH-MEMB
