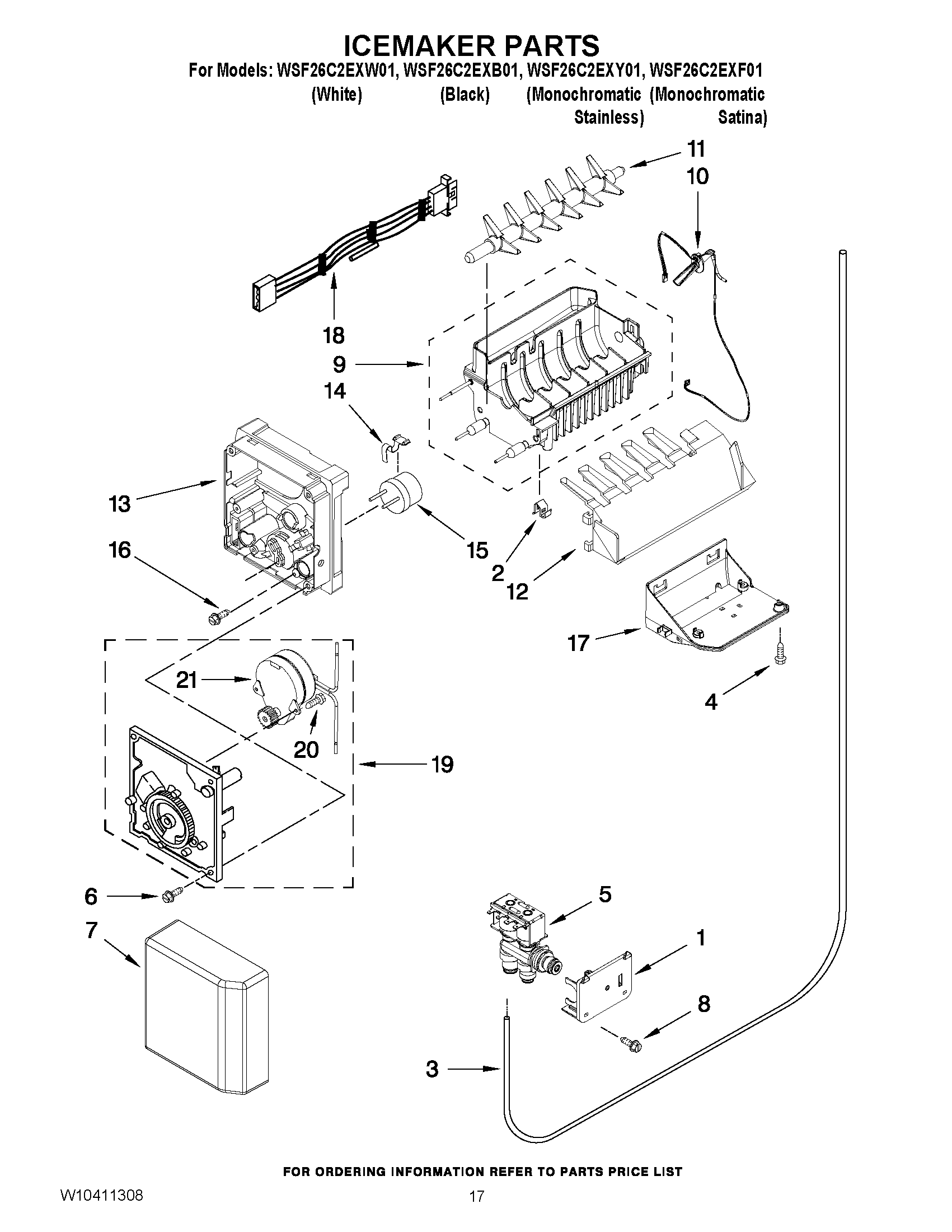

WSF26C2EXF01 10 – ICEMAKER PARTS

WSF26C2EXF01 10 – ICEMAKER PARTS

Written by

in

WSF26C2EXF01 10 – ICEMAKER PARTS

Products

PositionProduct
1W10847867 Whirlpool Refrigerator Bracket
2WP628379 Whirlpool Refrigerator Clip
3WPW10238092 Whirlpool Refrigerator Water Tube
4WP489478 Whirlpool Refrigerator Screw
5WPW10258562 Whirlpool Refrigerator Inlet Valve
6W10001240 Whirlpool Refrigerator Screw
7COVER
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9MOLD & HEATER ASSEMBLY (ALSO ORDER 542638
10FILL TUBE ASSY.
11W10318644 Whirlpool Refrigerator Ejector Arm
12W10747731 Whirlpool Refrigerator Arm Stripper
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
168533917 Whirlpool Refrigerator Screw
17W10251080 Whirlpool Refrigerator Bracket
18W10242384 Whirlpool Refrigerator Wire Harness
198201515 Whirlpool Refrigerator Motor and Gear Module Kit
20489136 Whirlpool Refrigerator Screw
21CABINET (NOT A SERVICEABLE PART)
100WPW10251076 Whirlpool Icemaker Assembly
