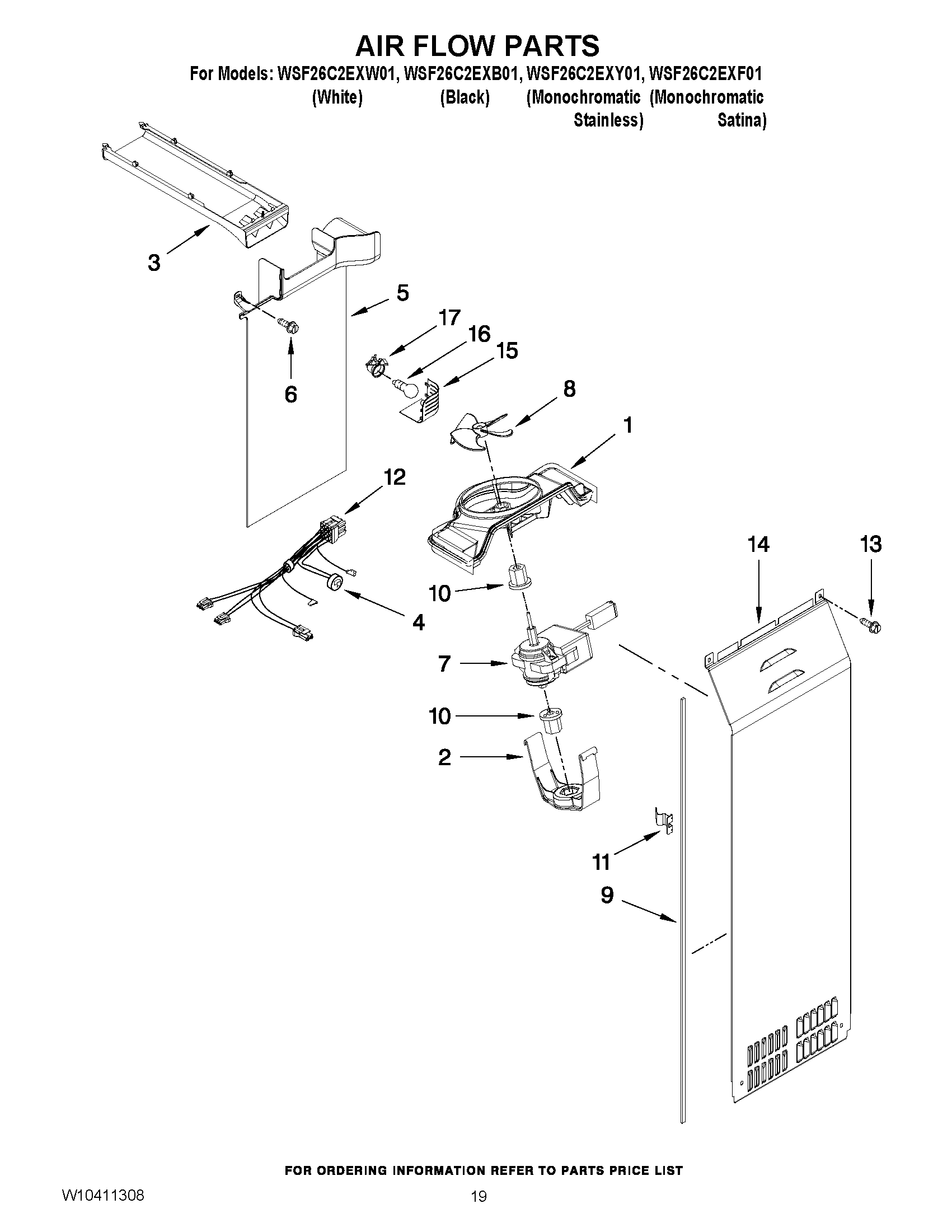

WSF26C2EXW01 11 – AIR FLOW PARTS

WSF26C2EXW01 11 – AIR FLOW PARTS

Written by

in

WSF26C2EXW01 11 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
3W10515038 Whirlpool Refrigerator Air Duct
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10260378 Whirlpool Refrigerator Air Duct
6WP489478 Whirlpool Refrigerator Screw
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11W11232019 Whirlpool Refrigerator Clip
12W10688625 Whirlpool Refrigerator Wire Harness
13WP693995 Whirlpool Screw
14W10239739 Whirlpool Refrigerator Evaporator Cover
15W10260382 Whirlpool Refrigerator Cover
16W11679940 Whirlpool Refrigerator Light Bulb Assembly
174387478 Whirlpool Refrigerator Light Socket
