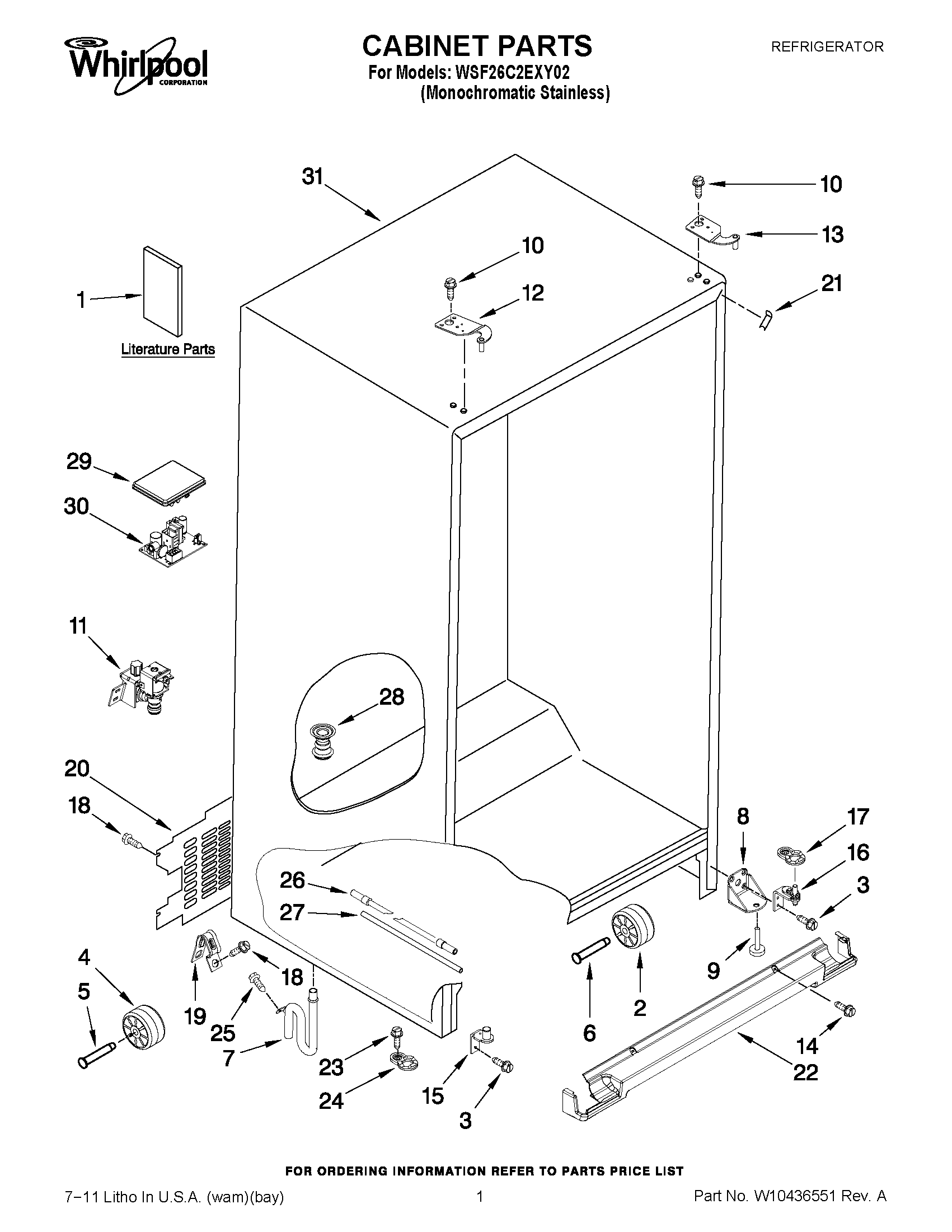

WSF26C2EXY02 01 – CABINET PARTSadmin2025-04-26T11:11:42+00:00WSF26C2EXY02 01 – CABINET PARTS ProductsPositionProduct1ENERGY LABEL1USE & CARE GUIDE1SERVICE AND WIRING SHEET2WPW10475495 Whirlpool Roller Assembly3WPW10297485 Whirlpool Refrigerator Screw4WP67005149 Whirlpool Roller567006434 Whirlpool Axle Pin6WPW10285005 Whirlpool Refrigerator Rivet7W10379525 Whirlpool Refrigerator Extension8W11266052 Whirlpool Refrigerator Bracket9WPW10141622 Whirlpool Leveler10WPW10308751 Whirlpool Screw11VALVE-INLT REFR12W11590581 Whirlpool Refrigerator Door Hinge13HINGE-DOOR14WPW10142283 Whirlpool Refrigerator Screw15W11293374 Whirlpool Refrigerator Door Hinge17W10500004 Whirlpool Refrigerator Door Hinge18SCREW19549193 Whirlpool Refrigerator Power Clamp20WPW10333887 Whirlpool Refrigerator Unit Cover21WP12587703AP Whirlpool Refrigerator Filler22WPW10713153 Whirlpool Refrigerator Grille23WP489483 Whirlpool Screw24W10876191 Whirlpool Refrigerator Door Cam25WP489464 Whirlpool Refrigerator Screw26WPW10279882 Whirlpool Water Line27WPW10279884 Whirlpool Water Tube28W10247979 Whirlpool Refrigerator Fitting29LID, HV BOX30W11088499-includeCORE Whirlpool W11088499 Refrigerator Electric Control Board with Core31CABINET (NOT A SERVICEABLE PART)
