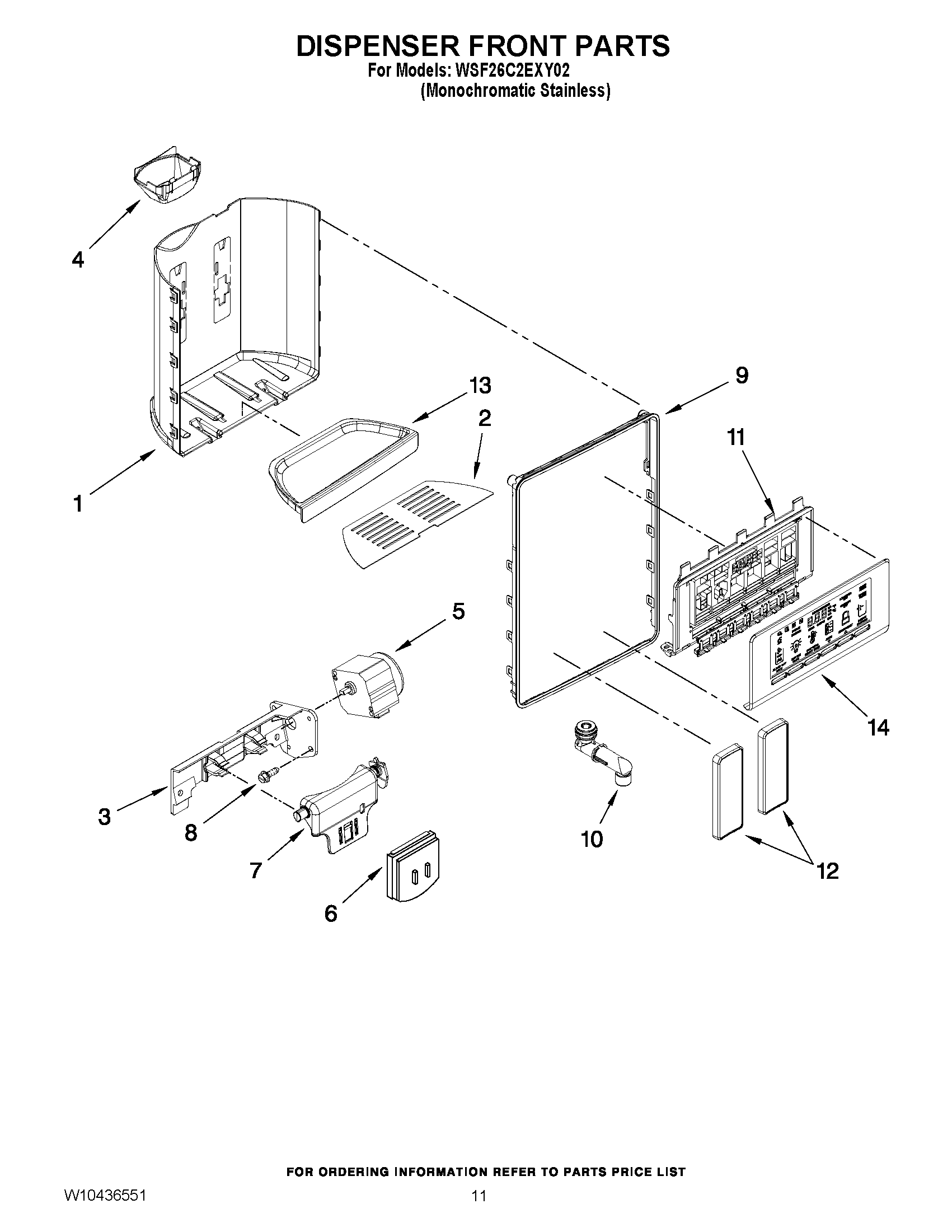

WSF26C2EXY02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10276223 Whirlpool Refrigerator Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	WPW10493172 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	TRIM RING
10	WP2305235 Whirlpool Refrigerator Spigot
11	WPW10372206-includeCORE Whirlpool WPW10372206 Refrigerator Electronic Control Board + Core
12	WPW10370594 Whirlpool Refrigerator Pad
13	W11246841 Whirlpool Refrigerator Drip Tray
14	WPW10254285 Whirlpool Refrigerator Escutcheon
