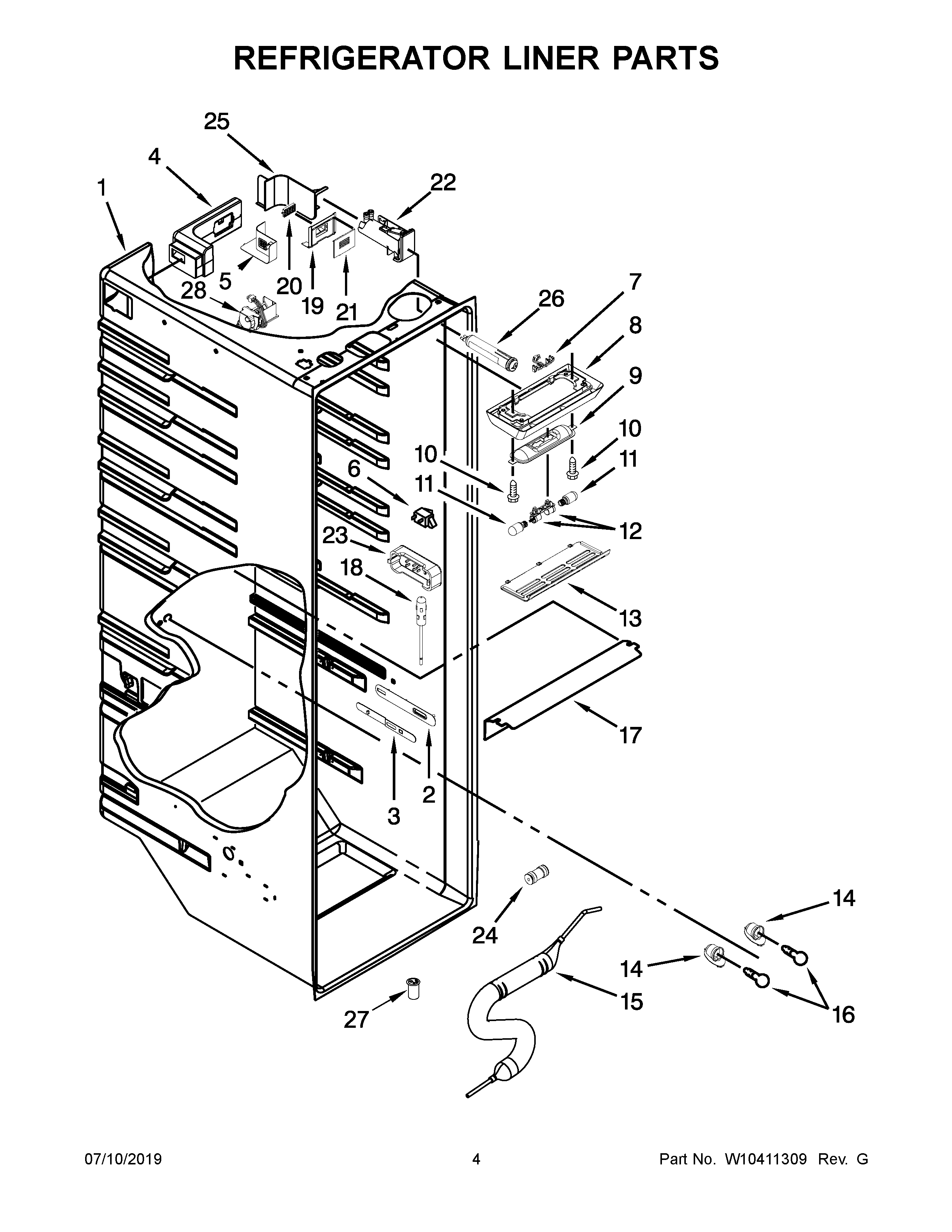

WSF26C3EXB01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10260988 Whirlpool Refrigerator Escutcheon
3	SLIDE, MEAT PAN CONTROL
4	W11177624 Whirlpool Refrigerator Diffuser
5	W10666135 Whirlpool Refrigerator Cover
6	W11123941 Whirlpool Refrigerator Switch
7	W10253300 Whirlpool Refrigerator Wire Jumper
8	W10280178 Whirlpool Refrigerator Trim
9	2223680 Whirlpool Refrigerator Shield
10	WP3400906 Whirlpool Refrigerator Screw
11	WPA3073101 Whirlpool Light Bulb
12	WPW10191429 Whirlpool Refrigerator Socket
13	W10280420 Whirlpool Refrigerator Light Lens
14	4387478 Whirlpool Refrigerator Light Socket
15	W11613294 Whirlpool Refrigerator Reservoir
16	W11679940 Whirlpool Refrigerator Light Bulb Assembly
17	WPW10269099 Whirlpool Refrigerator Light Lens
18	THERMISTOR
19	W10342986 Whirlpool Refrigerator Cover
20	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
21	COVER, AIR FILTER
22	WPW10238123 Whirlpool Refrigerator Housing
23	WPW10425252 Whirlpool Refrigerator Cover
24	WPW10271543 Whirlpool Refrigerator Connector
25	WPW10260405 Whirlpool Refrigerator Filter Cover
26	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
27	WP2210509 Whirlpool Refrigerator Tub Valve
28	DAMPER
