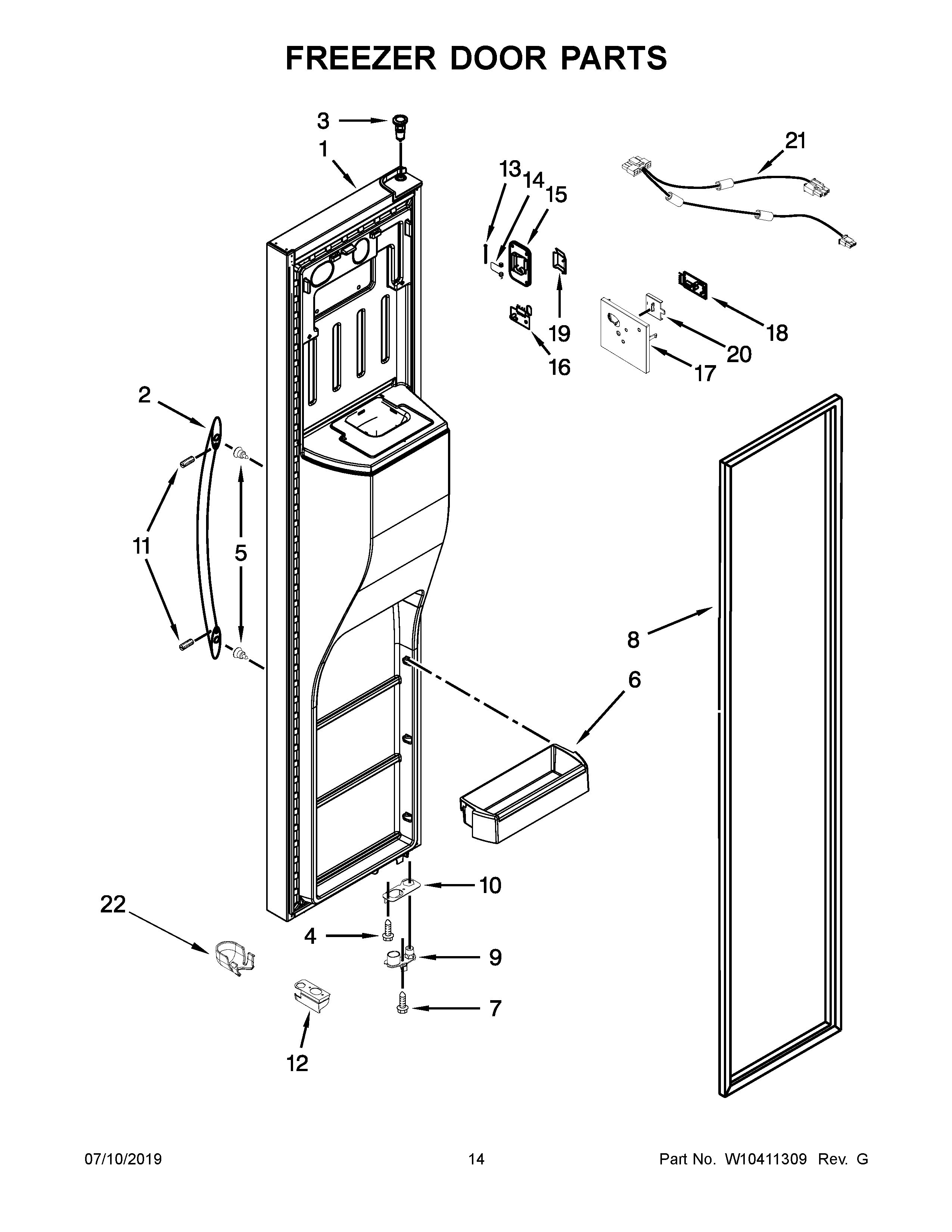

WSF26C3EXB01 08 – FREEZER DOOR PARTS

WSF26C3EXB01 08 – FREEZER DOOR PARTS

Written by

in

WSF26C3EXB01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1CDOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1BDOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (SATINA)
1AFREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2AWPW10268057 Whirlpool Refrigerator Handle
2WPW10268056 Whirlpool Refrigerator Door Handle
2BWPW10670421 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10296857 Whirlpool Refrigerator Cantilever Bin
7WPW10296804 Whirlpool Refrigerator Screw
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
8WPW10247885 Whirlpool Door Gasket
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
9BWPW10257206 Whirlpool Refrigerator Door Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
11AWPW10010150 Whirlpool Refrigerator Screw
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12BWPW10632062 Whirlpool Refrigerator Wire Cover
13W10331749 Whirlpool Refrigerator Door PIN
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17W10363396 Whirlpool Refrigerator Cover
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
21W10411699 Whirlpool Refrigerator Wire Harness
22W10323148 Whirlpool Refrigerator Wire Cover
