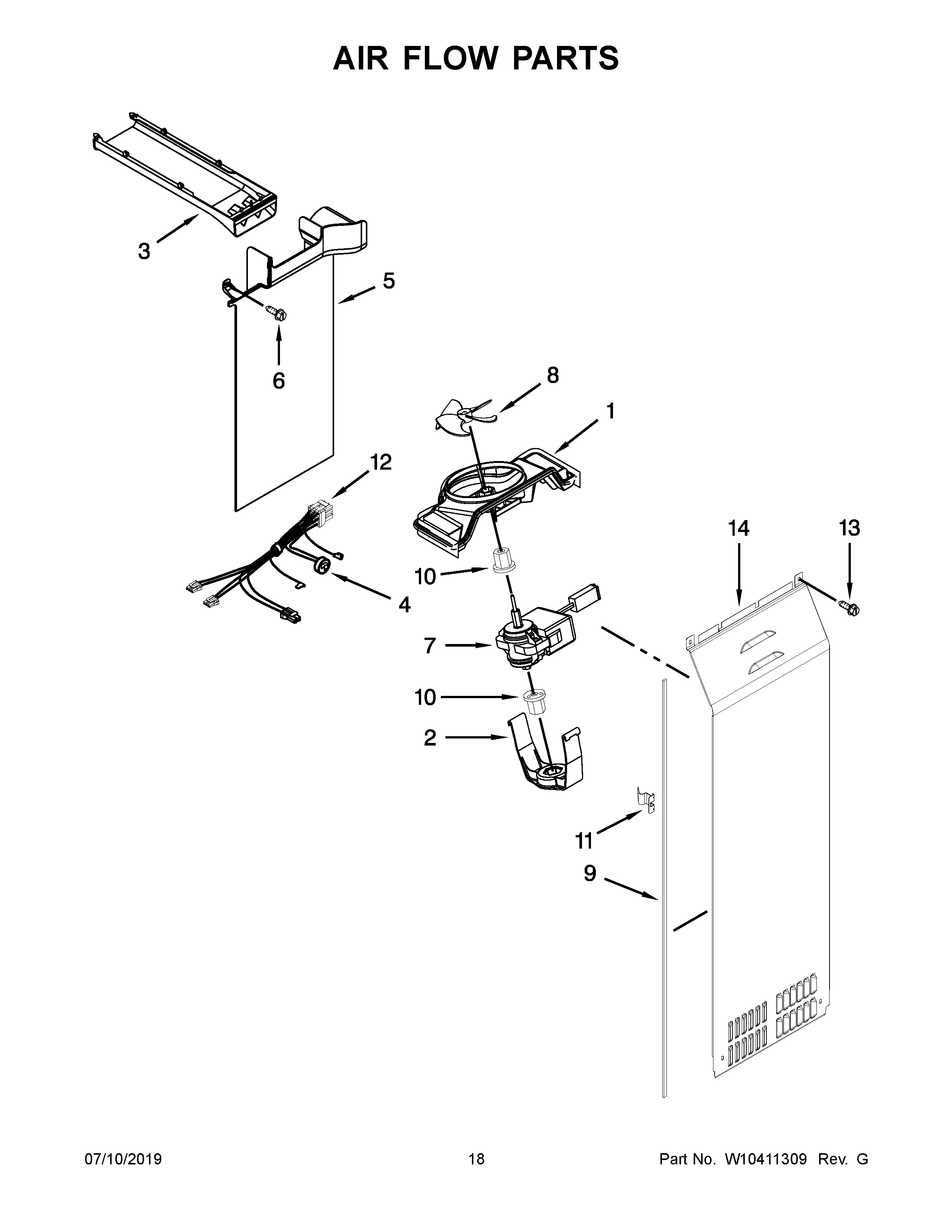

WSF26C3EXB01 10 – AIR FLOW PARTS

WSF26C3EXB01 10 – AIR FLOW PARTS

Written by

in

WSF26C3EXB01 10 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
3W10515038 Whirlpool Refrigerator Air Duct
4CABINET (NOT A SERVICEABLE PART)
5W10260378 Whirlpool Refrigerator Air Duct
6WP489478 Whirlpool Refrigerator Screw
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11W11232019 Whirlpool Refrigerator Clip
12W10688625 Whirlpool Refrigerator Wire Harness
13WP693995 Whirlpool Screw
14WPW10388268 Whirlpool Refrigerator Evaporator Cover
