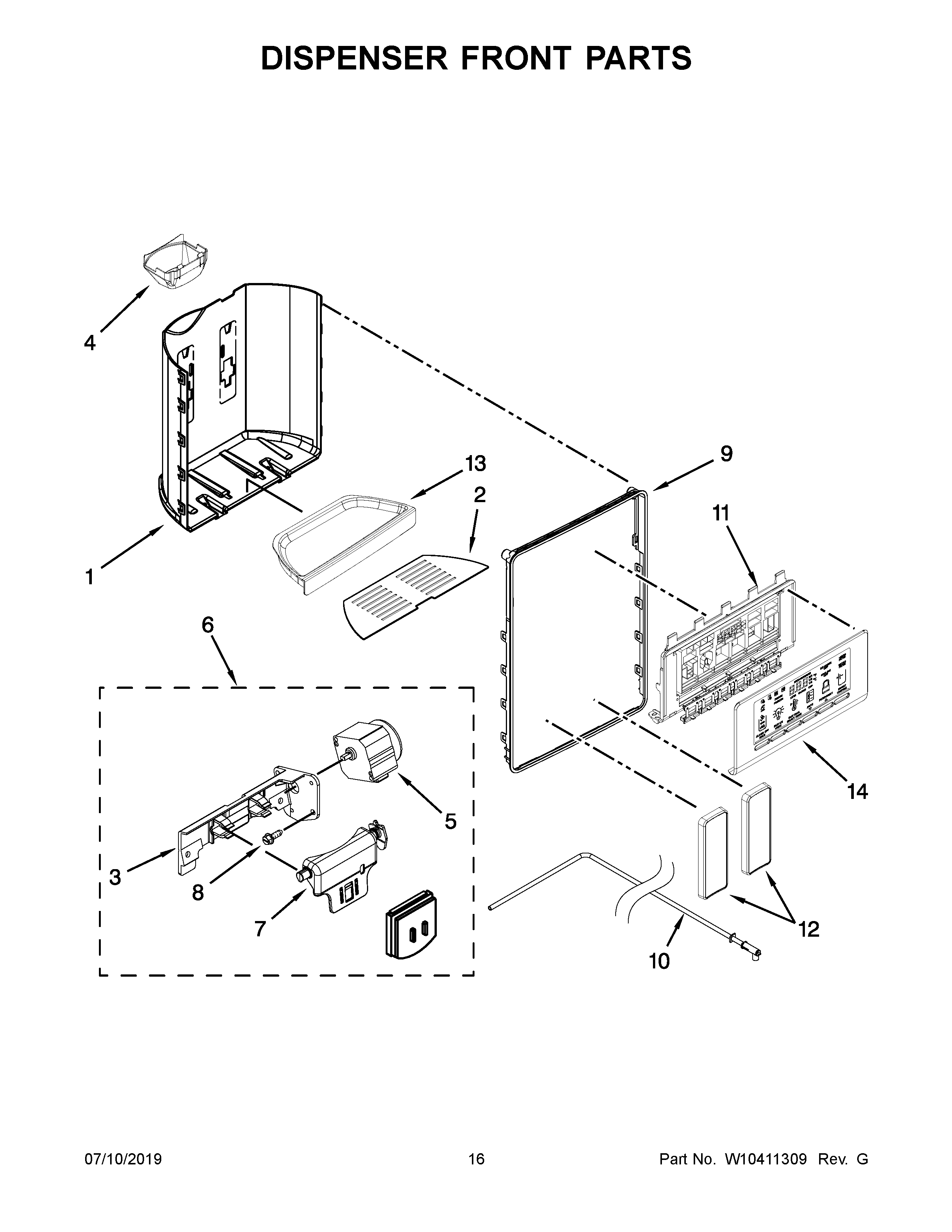

WSF26C3EXW01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2BWPW10276223 Whirlpool Refrigerator Grille
2AWPW10276221 Whirlpool Refrigerator Grille
2WPW10276220 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11096215 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9ATRIM RING (BLACK)
9WPW10276186 Whirlpool Refrigerator Dispenser Trim
9BW10276227 Whirlpool Refrigerator Dispense Trim
10WPW10386778 Whirlpool Refrigerator Water Tube
11WPW10372206-includeCORE Whirlpool WPW10372206 Refrigerator Electronic Control Board + Core
12AWPW10370592 Whirlpool Refrigerator Pad
12BWPW10370594 Whirlpool Refrigerator Pad
12WPW10370593 Whirlpool Refrigerator Pad
13AW10276194 Whirlpool Refrigerator Drip Tray
13W10276193 Whirlpool Refrigerator Disp Tray
13BW11246841 Whirlpool Refrigerator Drip Tray
14AW10276229 Whirlpool Refrigerator Escutcheon
14WPW10254285 Whirlpool Refrigerator Escutcheon
