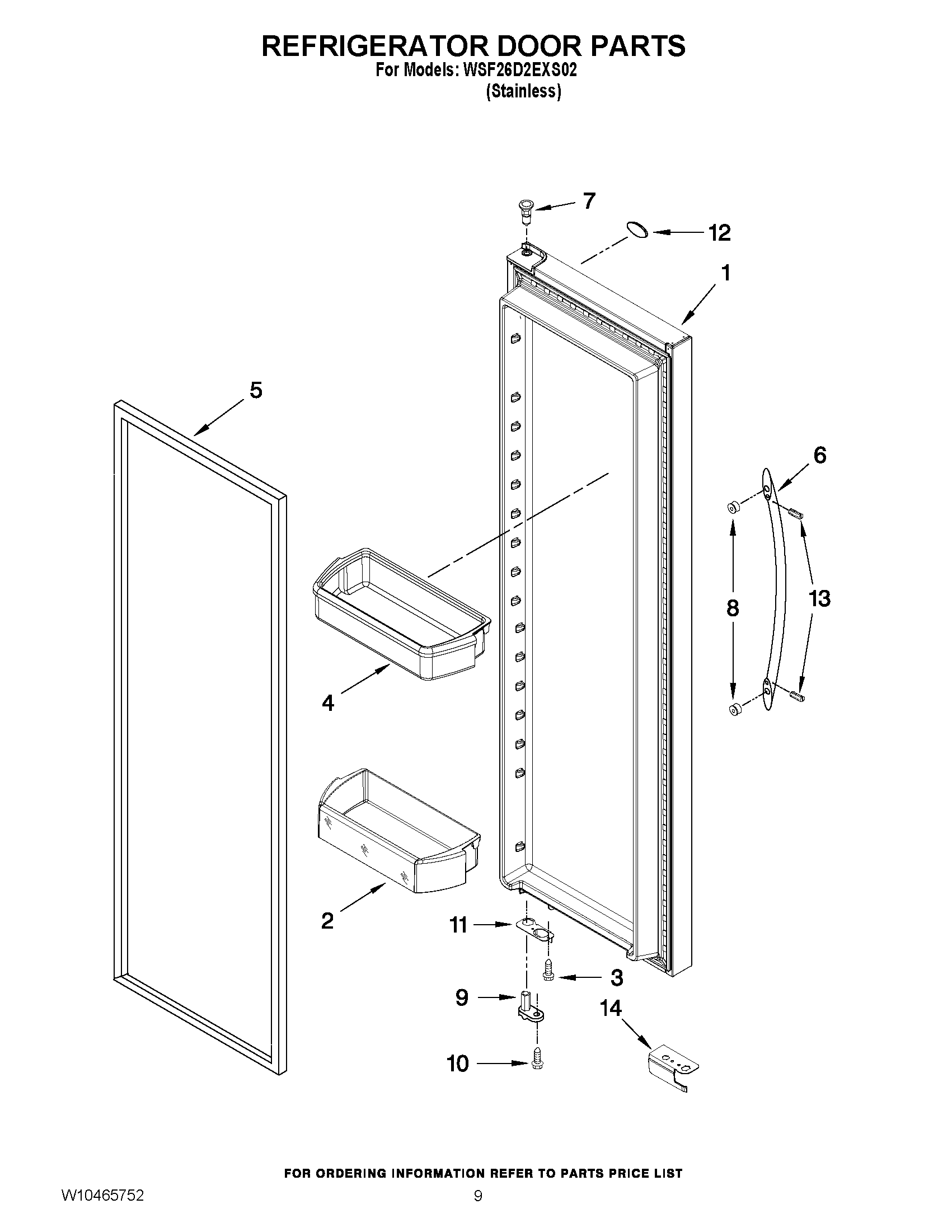

WSF26D2EXS02 06 – REFRIGERATOR DOOR PARTS

WSF26D2EXS02 06 – REFRIGERATOR DOOR PARTS

Written by

in

WSF26D2EXS02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS)
2WPW10321304 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10296855 Whirlpool Refrigerator Door Bin
5WPW10249912 Whirlpool Refrigerator FIP Gasket
6WPW10670421 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257201 Whirlpool Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WP2213265 Whirlpool Refrigerator Nameplate
13SCREW
14W10257216 Whirlpool Refrigerator Wire Cover
