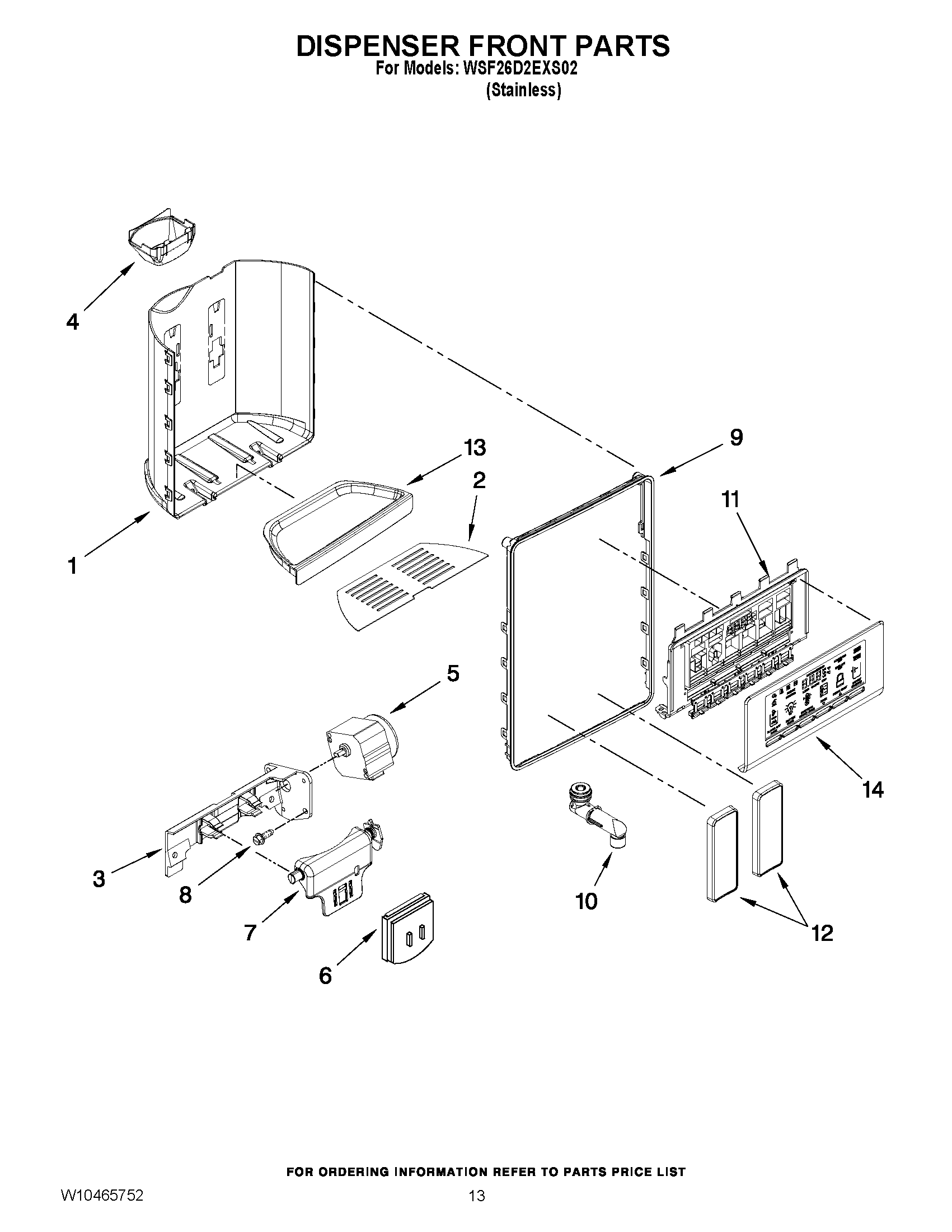

WSF26D2EXS02 08 – DISPENSER FRONT PARTS

WSF26D2EXS02 08 – DISPENSER FRONT PARTS

Written by

in

WSF26D2EXS02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276221 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6WPW10493172 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9TRIM RING (BLACK)
10WP2305235 Whirlpool Refrigerator Spigot
11WPW10372208-includeCORE Whirlpool WPW10372208 Refrigerator Electronic Control Board + Core
12WPW10370592 Whirlpool Refrigerator Pad
13W10276194 Whirlpool Refrigerator Drip Tray
14W10276229 Whirlpool Refrigerator Escutcheon
